Fiber Optic Patch Panel

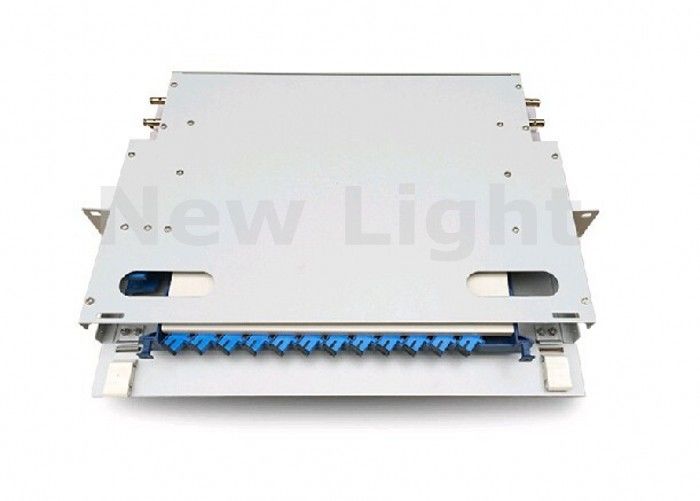

19 Inch ODF Optical Fiber Distribution Frame 12 Port Core with Standard Size for CATV and FTTH Applications

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

19 Inch ODF Optical Fiber Distribution Frame 12 Port Core with Standard Size for CATV and FTTH Applications

Brand Name:	New Light
MOQ:	1~10000
Price:	10~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

White

Core Number:

Application:

FTTX, FTTH Odf

Fiber:

Simplex,Duplex

Name:

Optical Fiber Distribution Frame

OEM:

Available

Supply Ability:

1000 pcs per month

Highlight:

odf fiber optic patch panel

fiber optic distribution box

Product Description

CATV 19 Inch ODF Optical Fiber Distribution Frame 12 Port Core

CATV use 19 inch 12 core ODF optical fiber distribution frame 12 port core designed for efficient fiber management and distribution.

Technical Specifications

Type: Cable installation, wall mount
Size Options: 40x38x14cm, 30x30x8.5cm, 40.5x38.2x8.5cm
Capacity: 12 SC, 12 LC
Connector Options: SC, SC/APC, LC, LC/APC, ST, FC

Key Features

Standard size, light weight and reasonable structure
Splice tray inside changeable
Compatible with 19'', 23'' standard distribution frames
Suitable for ribbon and single fiber applications
Various panel plates to fit different adapter interfaces
Front marking on plates for easy identification and operation
Multiple capacities available: 24C, 36C, 48C, 72C, 96C optional, with or without fiber optic pigtails and adapters
Easy management and operation

Product Description

ODF with pigtails and adapters includes one ODF unit, adapters, and pigtails. Components are shipped separately for on-site assembly by installers. Available in configurations from 12 to 192 fibers. All ODF units are withdrawable and designed for mounting in 19" racks, equipped with splice holders and fiber guiding systems. Custom combinations available upon request.

Applications

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN networks
CATV systems

Electrical Performance Specifications

Parameter	Specification
Environment temperature	-25~55°C
Atmosphere pressure	70~106Kpa
Insulating resistance	>2×10⁴ MΩ/500VDC
Relative humidity	<85% (when temperature is below 30°C)
Voltage resistance strength	15kV/DC/1min, non-puncture, no arc-over
