12 Core FTTH Fiber Optic Distribution Frame ODF Rack Mount For LAN / WAN

Brand Name: New Light
MOQ: 1~10000
Price: 10~100
Packaging Details: 1 piece per pack
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Green,White
Core Number:
12
Application:
FTTX, FTTH Odf
Fiber:
Simplex,Duplex
Name:
Optical Fiber Distribution Frame
OEM:
Available
Supply Ability:
1000 pcs per month
Highlight:

odf optical fiber distribution frame

,

fiber optic distribution box

Product Description

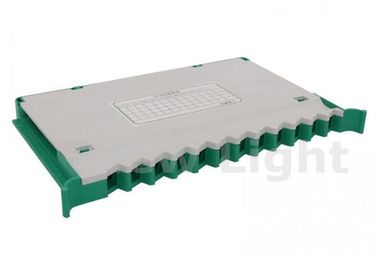

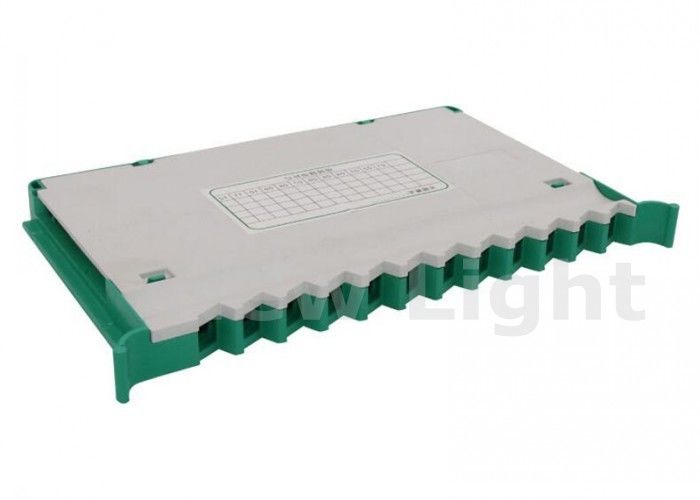

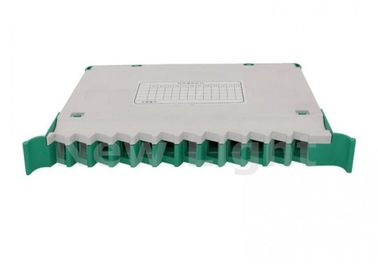

12cores ODF fiber optic splice tray with ABS material Use FTTH ODF Optical distribution frame





Description:





ODF includes fiber distribution devices, fiber splicing devices and fiber storage devices. It connects fiber cables and fiber telecom equipment. It has the functions of protecting fiber cables, splicing fiber and storing extra pigtails.

Features


Used for patch panel, ODF, rack and so on.
19 inches 1/2/3/4U standard installation.
Two-layer structure (under layer is for pigtails connection with adaptor and storage.)
Several capacity: 12, 24, 36, 48, 72, 96, splices.
Several adapters can be installed: FC, SC, ST, duplex LC
Suitable for ribbon and bunchy fiber optic cable.



Application:



1) Telecommunications subscriber loop

2) Fiber to the home (FTTH)

3) LAN/WAN

4) CATV





Specification:





Optical Performance Single Mode Multi Mode
Insertion Loss(dB) ≤0.2 ≤0.3
Return Loss(dB) ≥50 (PC) N/A
≥60 (APC)
Repeatability(dB) ≤0.1dB
Durability(dB) ≤0.2dB Typical Change, 1000 Matings
Tensile Strength(N) 100
Operating Temperature(°C) -40~+80
Storage Temperature(°C) -40~+85
Endface Geometry
Parameter 2.5um Ferrule 1.25 um Ferrule
PC APC PC APC
Radius of Curvature(mm) 10~25 5~15 7~15 5~15
Apex Offset(mm) 0~50 0~50 0~50 0~50
Fiber Height(nm) ±50 ±50 ±50 ±50
Angle(°) ---- 7.7-8.3 ----

7.7-8.3
















12 Core FTTH Fiber Optic Distribution Frame ODF Rack Mount For LAN / WAN 0
