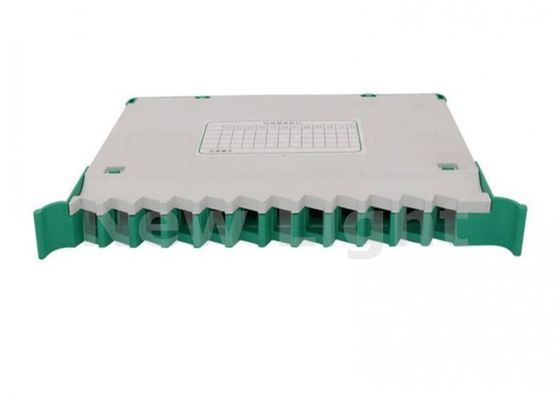

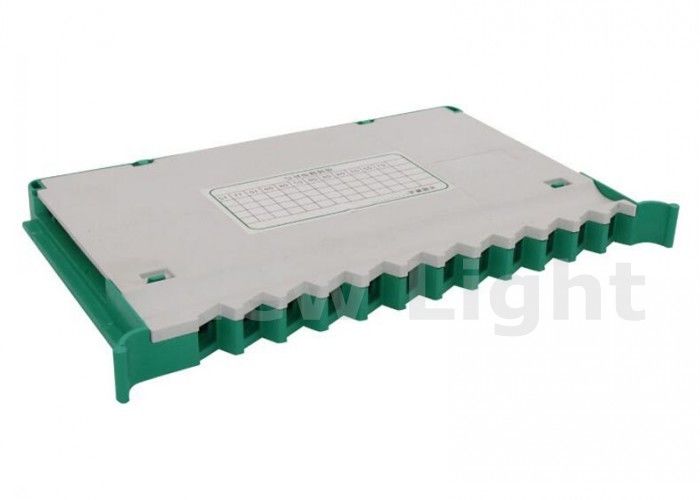

12 Core FTTH Fiber Optic Distribution Frame ODF Rack Mount Patch Panel for LAN/WAN

Brand Name:	New Light
MOQ:	1~10000
Price:	10~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Green,White

Core Number:

Application:

FTTX, FTTH Odf

Fiber:

Simplex,Duplex

Name:

Optical Fiber Distribution Frame

OEM:

Available

Supply Ability:

1000 pcs per month

Highlight:

odf optical fiber distribution frame

fiber optic distribution box

Product Description

12 Core FTTH Fiber Optic Distribution Frame ODF Rack Mount For LAN / WAN

Product Overview

12-core ODF fiber optic splice tray with ABS material for FTTH optical distribution frame

ODF (Optical Distribution Frame) includes fiber distribution devices, fiber splicing devices and fiber storage devices. It connects fiber cables and fiber telecom equipment, providing functions for protecting fiber cables, splicing fibers, and storing extra pigtails.

Key Features

Used for patch panel, ODF, rack and related applications
19-inch 1/2/3/4U standard installation compatibility
Two-layer structure design (under layer for pigtails connection with adaptor and storage)
Multiple capacity options: 12, 24, 36, 48, 72, 96 splices
Supports various adapter types: FC, SC, ST, duplex LC
Suitable for both ribbon and bunchy fiber optic cables

Applications

Telecommunications subscriber loop systems
Fiber to the home (FTTH) installations
LAN/WAN network infrastructure
CATV (Cable Television) systems

Technical Specifications

Optical Performance	Single Mode	Multi Mode
Insertion Loss (dB)	≤0.2	≤0.3
Return Loss (dB)	≥50 (PC) ≥60 (APC)	N/A
Repeatability (dB)	≤0.1dB
Durability (dB)	≤0.2dB Typical Change, 1000 Matings
Tensile Strength (N)	100
Operating Temperature (°C)	-40 to +80
Storage Temperature (°C)	-40 to +85

Endface Geometry Parameter	2.5um Ferrule	1.25um Ferrule
	PC	APC	PC	APC
Radius of Curvature (mm)	10-25	5-15	7-15	5-15
Apex Offset (mm)	0-50	0-50	0-50	0-50
Fiber Height (nm)	±50	±50	±50	±50
Angle (°)	----	7.7-8.3	----	7.7-8.3
