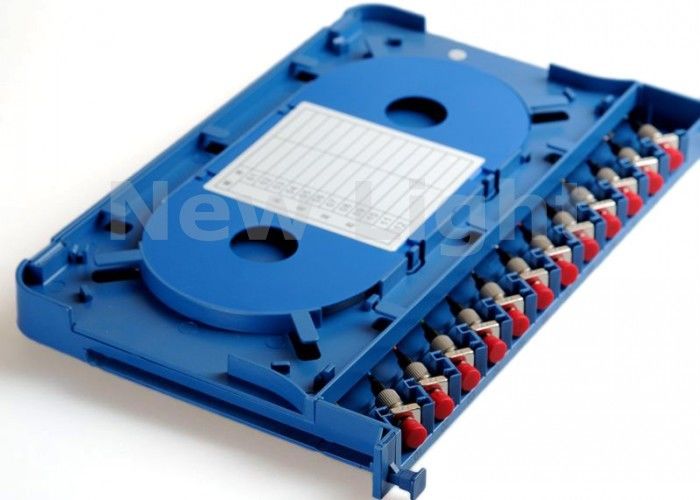

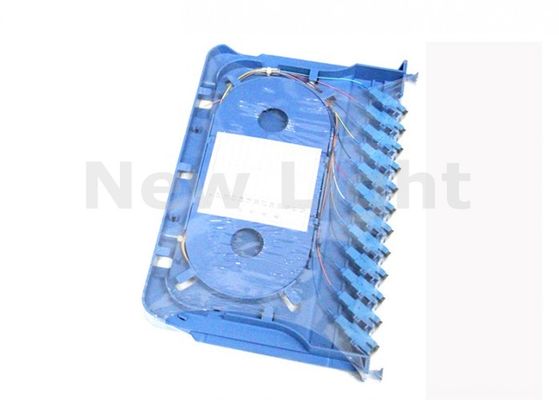

FTTH Fiber Optic Distribution Frame 12 Core ODF Fiber Optic Splice Tray For Patch Panel

12 cores ODF fiber optic splice tray Use FTTH ODF Optical distribution frame

Applications

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV

Technical Specifications

Optical Performance	Single Mode	Multi Mode
Insertion Loss(dB)	≤0.2	≤0.3
Return Loss(dB)	≥50 (PC) ≥60 (APC)	N/A
Repeatability(dB)	≤0.1dB
Durability(dB)	≤0.2dB Typical Change, 1000 Matings
Tensile Strength(N)	100
Operating Temperature(°C)	-40~+80
Storage Temperature(°C)	-40~+85

Endface Geometry Specifications

Parameter	2.5um Ferrule	1.25 um Ferrule
	PC	APC	PC	APC
Radius of Curvature(mm)	10~25	5~15	7~15	5~15
Apex Offset(mm)	0~50	0~50	0~50	0~50
Fiber Height(nm)	±50	±50	±50	±50
Angle(°)	----	7.7-8.3	----	7.7-8.3

Product Description

ODF includes fiber distribution devices, fiber splicing devices and fiber storage devices. It connects fiber cables and fiber telecom equipment. It has the functions of protecting fiber cables, splicing fiber and storing extra pigtails.

Key Features

Used for patch panel, ODF, rack and so on
19 inches 1/2/3/4U standard installation
Two-layer structure (under layer is for pigtails connection with adaptor and storage)
Several capacity: 12, 24, 36, 48, 72, 96 splices
Several adapters can be installed: FC, SC, ST, duplex LC
Suitable for ribbon and bunchy fiber optic cable

Tags:

fiber optic accessories

fiber optic termination panel

fiber optic parts and accessories
