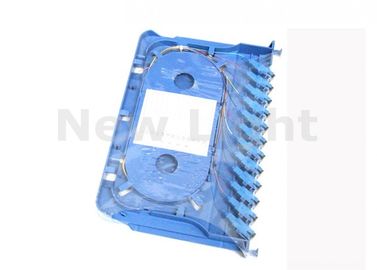

FTTH Fiber Optic Distribution Frame 12 Core ODF Fiber Optic Splice Tray For Patch Panel

Brand Name:	New Light
MOQ:	1~10000
Price:	10~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Blue

Core Number:

Application:

FTTX, FTTH Odf

Fiber:

Simplex,Duplex

Name:

ODF Optical Fiber Distribution Frame

OEM:

Available

Supply Ability:

1000 pcs per month

Highlight:

odf optical fiber distribution frame

fiber optic distribution box

Product Description

12 cores ODF fiber optic splice tray Use FTTH ODF Optical distribution frame

Application:

1) Telecommunications subscriber loop

2) Fiber to the home (FTTH)

3) LAN/WAN

4) CATV

Specification:

Optical Performance	Single Mode			Multi Mode
Insertion Loss(dB)	≤0.2			≤0.3
Return Loss(dB)	≥50 (PC)			N/A
	≥60 (APC)
Repeatability(dB)	≤0.1dB
Durability(dB)	≤0.2dB Typical Change, 1000 Matings
Tensile Strength(N)	100
Operating Temperature(°C)	-40~+80
Storage Temperature(°C)	-40~+85
Endface Geometry
Parameter	2.5um Ferrule		1.25 um Ferrule
	PC	APC	PC		APC
Radius of Curvature(mm)	10~25	5~15	7~15		5~15
Apex Offset(mm)	0~50	0~50	0~50		0~50
Fiber Height(nm)	±50	±50	±50		±50
Angle(°)	----	7.7-8.3	----		7.7-8.3

Description:

ODF includes fiber distribution devices, fiber splicing devices and fiber storage devices. It connects fiber cables and fiber telecom equipment. It has the functions of protecting fiber cables, splicing fiber and storing extra pigtails.

Features

Used for patch panel , ODF, rack and so on.
19 inches 1/2/3/4U standard installation.
Two-layer structure (under layer is for pigtails connection with adaptor and storage.)
Several capacity: 12, 24, 36, 48, 72, 96, splices.
Several adapters can be installed: FC, SC, ST, duplex LC
Suitable for ribbon and bunchy fiber optic cable.

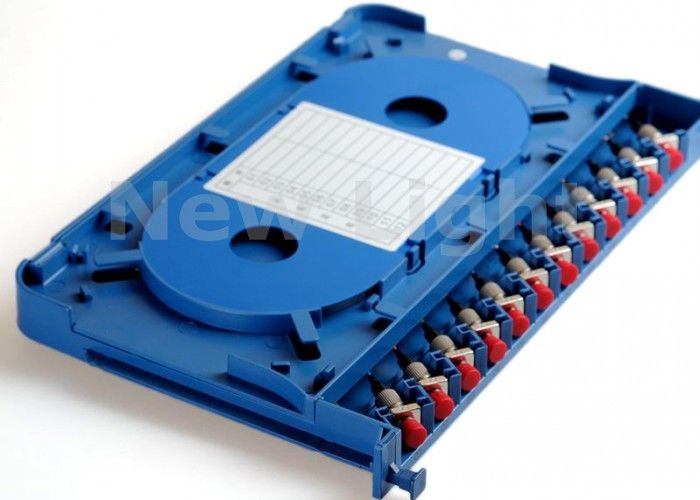

FTTH Fiber Optic Distribution Frame 12 Core ODF Fiber Optic Splice Tray For Patch Panel 0
