19 Inch Pull Type 12 Port Fiber Optic Distribution Frame Rack Mount Fiber Patch Panel

Brand Name:	New Light
MOQ:	1~10000
Price:	10~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Black

Core Number:

Application:

FTTX, FTTH Odf

Fiber:

Simplex,Duplex

Name:

Optical Fiber Distribution Frame

OEM:

Available

Supply Ability:

1000 pcs per month

Highlight:

odf fiber optic patch panel

fiber optic distribution box

Product Description

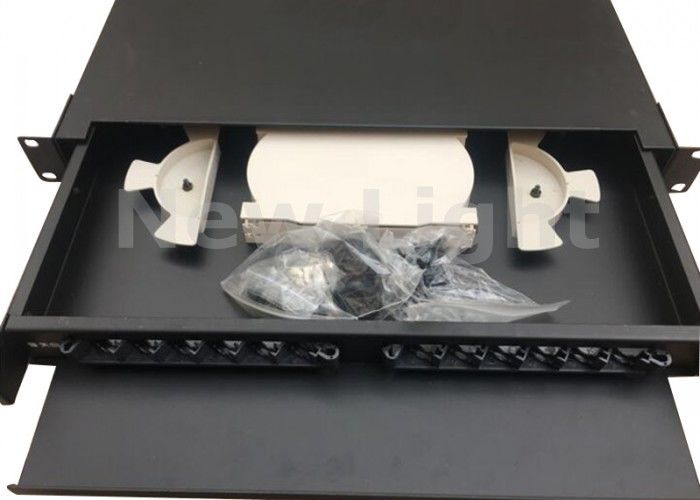

19 Inch Pull Type Fiber Optic Distribution Frame - 12 Port Rack Mount Fiber Patch Panel

19 inch 12 core pull type optical fiber distribution frame with 12 port rack mounted indoor fibers distribution capability.

Product Introduction

The optical fiber distribution frame series products serve as auxiliary equipment for terminal wiring in optical fiber transmission communication networks and provide protection for optical fiber connectors.

Environmental Requirements

Not suitable for outdoor use without protective measures
Operating temperature: -25°C to +40°C
Storage temperature: -25°C to +55°C
Relative humidity: Not more than 85% (at 30°C)
Air pressure: 70-106 kPa
Service life: 20 years

Functional Requirements

Provides fiber optic cable introduction, wiring leads, and fixing/protection for pigtail cables
Protects optical fiber pigtails from performance damage
Shields optical cable terminals from environmental impacts
Insulates optical cable metal components from terminal box shell with convenient grounding
Offers storage space for cable terminal and excess fiber with easy installation access
Robust construction withstands impact strength with versatile mounting options
Optional fiber optic cable connection capability when required

Structural Design

Three Main Components:

Shell: Easy-open design with simple installation and high voltage protective grounding for optical cable metal components
Internal Components:
- Support structure as main internal framework
- Fiber storage tray with minimum 1.6m remaining fiber capacity and 37.5mm radius curvature
- Clear fiber numbering markers and operational space
- Cable sheath, strengthening member, and pigtail fixation devices
Optical Fiber Connector Protection: Comprehensive protection system for fiber connectors

Applications

Telecommunications subscriber loop systems
Fiber to the Home (FTTH) installations
LAN/WAN network infrastructure
CATV distribution systems
