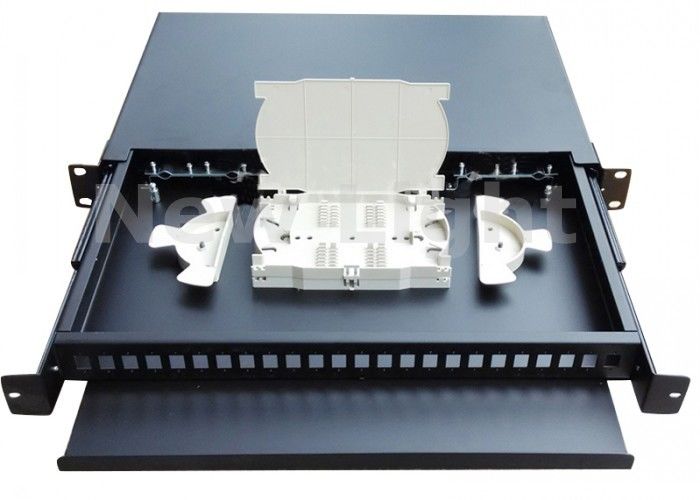

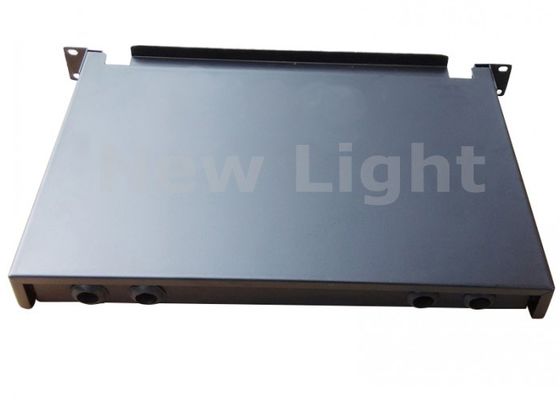

This 19-inch 24-core pull-type optical fiber distribution frame is designed for rack mounting in indoor environments, providing reliable fiber optic cable management and protection.

Functional Requirements

Fiber optic cable introduction, wiring leads, and fixation with pigtail cable protection
Protection against environmental impact on optical cable terminals
Insulation between optical cable metal components and terminal box shell with grounding capability
Storage space for cable terminals and excess fiber with easy installation access
Robust construction to withstand impact forces with versatile mounting options
Optional fiber optic cable connection functionality when required

Structural Design

Three Main Components

The optical cable terminal box consists of three integrated parts: exterior shell, internal components, and fiber optic connectors.

Shell Construction

Features easy-open design for simple installation, with high-voltage protective grounding for optical cable metal components.

Internal Components

Support Structure: Main framework supporting internal components
Fiber Management: Storage trays for fiber connectors with minimum 1.6m excess fiber capacity and 37.5mm bend radius protection
Fixed Devices: Secure cable sheath, reinforcement members, and pigtail fixation

Product Overview

This fiber distribution frame series serves as essential auxiliary equipment for terminal wiring in fiber optic transmission networks, providing reliable protection for fiber optic connectors.

Environmental Specifications

Usage: Indoor only (requires protective measures for outdoor use)

Operating Temperature: -25°C to +40°C

Storage Temperature: -25°C to +55°C

Relative Humidity: ≤85% at 30°C

Air Pressure: 70-106 kPa

Service Life: 20 years

Application Areas

Telecommunications Subscriber Loop

Fiber to the Home (FTTH)

LAN/WAN Networks

CATV Systems
