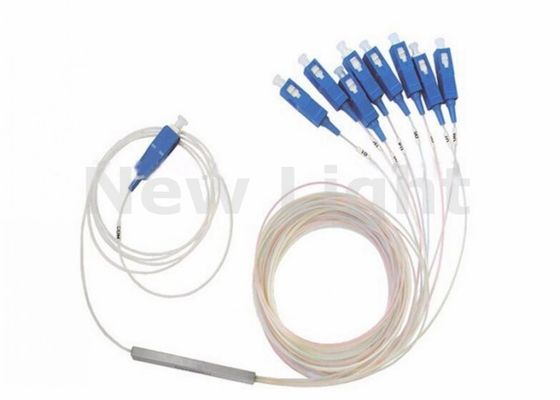

SC UPC 1x8 PLC Fiber Optic Splitter Steel Tube Type for FTTH with Single Mode and Low Insertion Loss

Brand Name:	New Light
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

ISO ,ROSH

Color:

Grey Cable , Blue Connector

Connector Type:

Polish:

UPC

Cable Diameter:

0.9mm

Mode:

Single Mode

OEM:

Available

Minimum Order Quantity:

Price:

1~30

Packaging Details:

export packing

Delivery Time:

15 working days

Payment Terms:

Western Union,T/T,MoneyGram

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

fiber optic cable splitter

Product Description

SC UPC 1X8 PLC Single Mode Fiber Optic Coupler Splitter Steel Tube Type For FTTH

SC UPC 1X8 PLC Singlemode Fiber Optical Splitter FTTH PLC Steel Tube Type

Specifications

Parameter	Specifications
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	1x2 \| 1x4 \| 1x8 \| 1x16 \| 1x32 \| 1x64 \| 1x128
Insertion Loss (dB)	3.8/4.0 \| 7.1/7.3 \| 10.2/10.5 \| 13.5/13.7 \| 16.5/16.9 \| 20.5/21.0 \| 23.8/24.2
Loss Uniformity (dB)	0.4 \| 0.6 \| 0.8 \| 1.2 \| 1.5 \| 2.0 \| 2.5
Polarization Dependent Loss (dB)	0.2 \| 0.2 \| 0.2 \| 0.25 \| 0.3 \| 0.35 \| 0.4
Wavelength Dependent Loss (dB)	0.3 \| 0.3 \| 0.3 \| 0.5 \| 0.5 \| 0.5 \| 0.5
Temperature Dependent Loss (-40~85°C) (dB)	0.4 \| 0.4 \| 0.4 \| 0.5 \| 0.5 \| 0.5 \| 0.5
Return Loss (dB)	55/50
Operating Temperature	-40~+85°C
Directivity (dB)	≥ 55
Storage Temperature	-40~+85°C

Key Features

Excellent mechanical performance with small size
High reliability and durability
Low insertion loss and low polarization dependent loss
High channel counts capability
Excellent environmental stability and wide application range

Applications

FTTx Deployments (GPON/BPON/EPON)
Cable television (CATV) systems
Local area networks (LAN)
Test equipment and instrumentation
Passive optical networks (PON)
