0.9mm Diameter SC Tail Set Fiber Optic Connector with Customized Color and Low Insertion Loss

Brand Name:	New Light
MOQ:	100
Price:	0.1~100
Packaging Details:	100 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Name:

SC Tail Set

Connector:

Diameter:

0.9mm

Color:

Green Or Customized

Mode:

SM/MM

OEM:

Available

Supply Ability:

100000 per week

Highlight:

fiber optic accessories

fiber optic cable assembly

Product Description

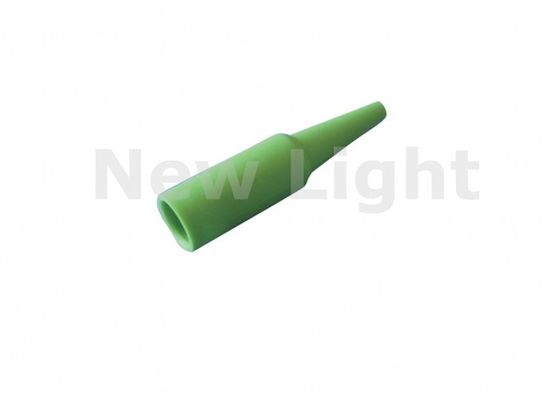

0.9mm Diameter Fiber Optic Parts Color Customized SC Tail Set With SC Connector

Product Overview

Fiber patch cord using SC tail set with 0.9mm diameter and green color customization.

Key Features

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Telcordia style boots
Free-floating ceramic ferrule

Ordering Options

SC/PC SM one-piece, multi-piece, 3mm or 2mm boot

SC/PC SM one-piece, multi-piece, 900um boot

SC/APC SM one-piece, multi-piece, 3mm, 2mm or 900um boot (conical)

SC/APC SM one-piece, multi-piece, 3mm, 2mm or 900um boot (step)

SC/APC SM one-piece, multi-piece, 3mm, 2mm or 900um boot (conical pre-angled)

SC/PC MM one-piece, multi-piece, 3mm or 2mm boot

SC/PC MM one-piece, multi-piece, 900um boot

Product Description

An optical fiber connector is a flexible device that connects fiber cables requiring quick connection and disconnection while maintaining proper fiber end alignment. This ensures the fiber receiver obtains maximum light from the launching fiber and minimizes energy loss in the system due to optic link intervention. The fiber optic connector plays a crucial role in maintaining the stability and performance of fiber-optical transmission systems.

Technical Specifications

Items	Single Mode	Multimode
PC/UPC/APC	PC, UPC, APC	62.5/125, 50/125, 50/125 10G
Insertion Loss	<0.2dB	<0.3dB
Return Loss	≥45dB, ≥50dB, ≥60dB	≥35dB
Durability	<0.1dB typical change, 500 matings
Operating Temperature	-40°C to +75°C
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1μm 125.3+1/-0μm, Concentricity: ≤1μm 125.5+1/-0μm, Concentricity: ≤1μm 126.0+1/-0μm, Concentricity: ≤1μm	125μm, Concentricity: 1-3μm 127μm, Concentricity: 1-3μm 128μm, Concentricity: 1-3μm
