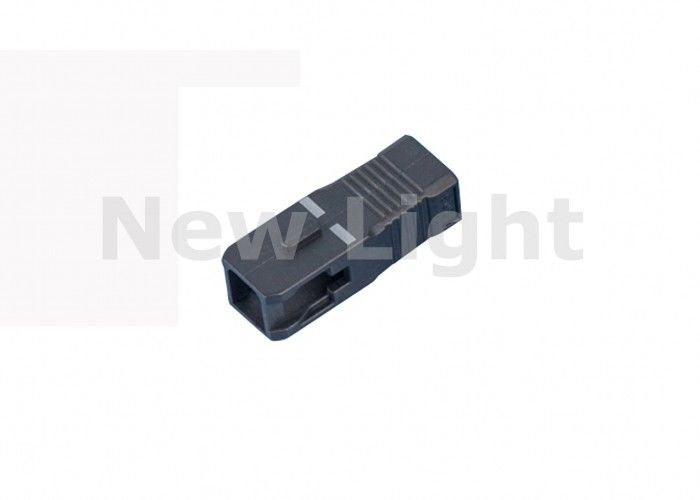

Black Color SC Housing Fiber Optic Connector with Excellent Compatibility and Low Insertion Loss

Brand Name:	New Light
MOQ:	100
Price:	0.1~100
Packaging Details:	100 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Name:

SC Housing

Connector:

Diameter:

2.0/3.0mm

Color:

Black Or Customized

Mode:

SM/MM

OEM:

Available

Supply Ability:

100000 per week

Highlight:

fiber optic accessories

fiber optic cable assembly

Product Description

Local Area Network Fiber Optic Parts SC Housing Black Color With Excellent Compatibility

Product Overview

Fiber patch cord using SC housing in black color designed specifically for Local Area Network applications, featuring superior performance and reliability.

Key Features

Accurate mechanical dimensions
Low insertion loss with high return loss
Excellent compatibility with existing systems
Superior repeatability performance
No polishing or epoxy required
Convenient and easy installation
Minimum 1-year lifetime guarantee

Applications

Optical fiber communication systems
Optical fiber test equipment
Optical fiber access networks
Optical fiber sensors
Optical fiber CATV systems
Optical fiber data transmission
Local area networks

Technical Description

An optical fiber connector is a flexible device designed for quick connection and disconnection of fiber cables. It ensures proper alignment of fiber ends, allowing the fiber receiver to capture maximum light from the launching fiber while minimizing energy loss in the system. This precise alignment is essential for optimal fiber optic connector performance. The quality of fiber optic connectors significantly impacts the stability and overall performance of fiber-optical transmission systems.

Specifications

Parameter	Details
Connector Type	SC
Standards	IEC, RoHS
Color	Customized
Mode	SM/MM
Sleeve	Ceramic/Phosphor Bronze

Parameter	Unit	LC,SC,FC,ST,MTRJ,MOP
Insertion Loss (Typical)	dB	≤0.2
Return Loss	dB	≥45 (SM PC), ≥50 (SM UPC), ≥60 (SM APC), ≥30 (MM PC)
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	℃	-40~75
Storage Temperature	℃	-40~85
