SM / MM Fiber Optic Cable Patch Cord SC Square Tail Set For Optical Fiber Test Equipment

Brand Name: New Light
MOQ: 100
Price: 0.1~100
Packaging Details: 100 pcs per pack
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,RoHS
Name:
SC Square Tail Set
Connector:
SC
Diameter:
2.0/3.0mm
Color:
Green Or Customized
Mode:
SM/MM
OEM:
Available
Supply Ability:
100000 per week
Highlight:

fiber optic accessories

,

fiber optic cable assembly

Product Description

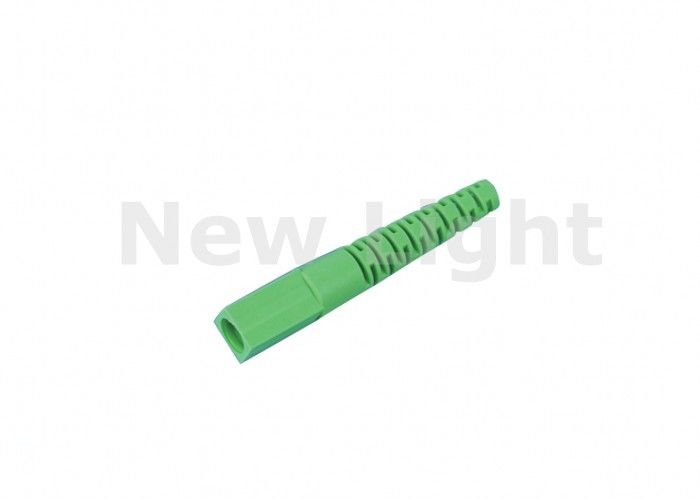

Fiber patch cord use SC square tail set 2.0 / 3.0 mm diameter Green color









Parameter of fiber optic boot-SC/FC/LC/ST:





Insertion loss SM ≤0.20 dB
MM ≤0.25dB
Return loss P C ≥50 dB
UPC ≥55 dB
APC ≥65 dB
Durability <0.20 dB typical change, 1000 mating
Ferrule hole sizes SM: 125.0+1/-0um concentricity:≤1.0um
125.5+1/-0um ≤1.0um
126.0+1/-0um ≤1.0um
MM:125 um concentricity:1≤3 um
127 um ≤3 um
128 um ≤3 um
Operating temperature

-40~80°C





Features:



-Low insertion loss high return loss
-PC/UPC/APC polishing
-Excellent durability
-Excellent temperature performance





Application:



* Optical fiber communication system

* Optical fiber test equipment

* Optical fiber access network

* Optical fiber sensor

* Optical fiber CATV system

* Optical fiber data transmission

* Local area network



Description:





An optical fiber connector is a flexible device that connects fiber cables requiring a quick connection and disconnection, keeping the ends of the fiber properly aligned, let the fiber receiver can get the maximum light from the launching fiber, and minimize the energy loss for the system because of the intervention of the optic link, this is the basic requirement for the fiber optic connector. To some extent,The fiber optic connectors have some effect on the stability and performance of the fiber-optical transmission system.





Specification:










Parameter



Unit

 LC,SC,FC,ST,MTRJ,MOP
SM MM
PC UPC APC PC
Insertion Loss (Typical) dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30
Exchangeability dB ≤0.2
Repeatability dB ≤0.2
Durability Time >1000
Operating temperature ℃ -40~75
Storage temperature ℃ -40~85





SM / MM Fiber Optic Cable Patch Cord SC Square Tail Set For Optical Fiber Test Equipment 0
