SM/MM Fiber Optic Patch Cord with SC Connector and 2.0/3.0mm Diameter for Low Insertion Loss and High Return Loss

Brand Name: New Light
MOQ: 100
Price: 0.1~100
Packaging Details: 100 pcs per pack
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,RoHS
Name:
SC Square Tail Set
Connector:
SC
Diameter:
2.0/3.0mm
Color:
Green Or Customized
Mode:
SM/MM
OEM:
Available
Supply Ability:
100000 per week
Highlight:

fiber optic accessories

,

fiber optic cable assembly

Product Description

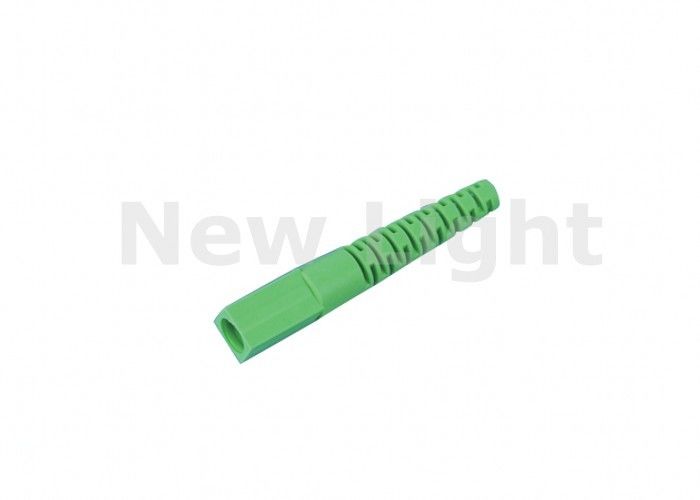

SM/MM Fiber Optic Cable Patch Cord SC Square Tail Set
Fiber patch cord with SC square tail set, 2.0/3.0 mm diameter, Green color
Technical Parameters
Parameter Single Mode Multimode
Insertion Loss ≤0.20 dB ≤0.25 dB
Return Loss (PC) ≥50 dB -
Return Loss (UPC) ≥55 dB -
Return Loss (APC) ≥65 dB -
Durability <0.20 dB typical change, 1000 mating cycles
Ferrule Hole Sizes 125.0+1/-0μm, 125.5+1/-0μm, 126.0+1/-0μm
Concentricity: ≤1.0μm		 125μm, 127μm, 128μm
Concentricity: ≤3μm
Operating Temperature -40°C to 80°C
Key Features
  • Low insertion loss and high return loss
  • PC/UPC/APC polishing options
  • Excellent durability and reliability
  • Superior temperature performance
Applications
  • Optical fiber communication systems
  • Optical fiber test equipment
  • Optical fiber access networks
  • Optical fiber sensors
  • Optical fiber CATV systems
  • Optical fiber data transmission
  • Local area networks
Product Description
An optical fiber connector is a flexible device designed for quick connection and disconnection of fiber cables. It ensures proper alignment of fiber ends, allowing the fiber receiver to capture maximum light from the launching fiber while minimizing energy loss in the optical link system. This precise alignment is essential for optimal performance in fiber optic transmission systems, where connectors significantly impact both stability and overall system performance.
Detailed Specifications
Parameter Unit LC, SC, FC, ST, MTRJ, MOP
Insertion Loss (Typical) dB ≤0.2
Return Loss dB SM: ≥45 (PC), ≥50 (UPC), ≥60 (APC)
MM: ≥30 (PC)
Exchangeability dB ≤0.2
Repeatability dB ≤0.2
Durability Cycles >1000
Operating Temperature °C -40 to 75
Storage Temperature °C -40 to 85
SM/MM Fiber Optic Patch Cord with SC Connector and 2.0/3.0mm Diameter for Low Insertion Loss and High Return Loss 0
