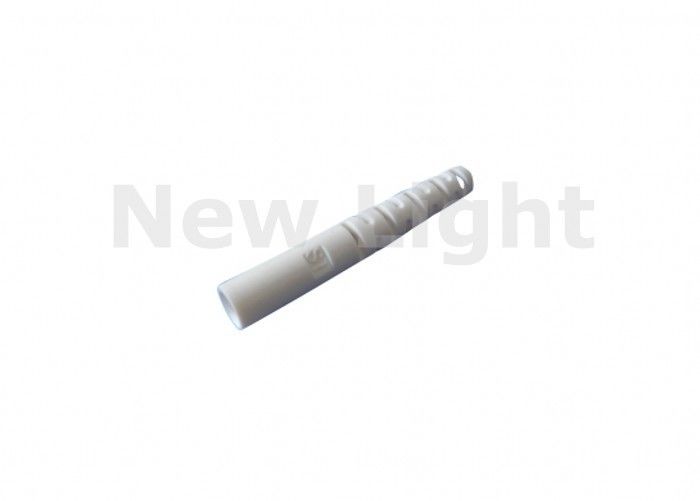

White or Customized Color 2.0/3.0mm Diameter Fiber Optic Connector Boot with Low Insertion Loss for ST Tail Set

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

0086 13534063703

Contact Now

White or Customized Color 2.0/3.0mm Diameter Fiber Optic Connector Boot with Low Insertion Loss for ST Tail Set

Brand Name:	New Light
MOQ:	100
Price:	0.1~100
Packaging Details:	100 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Name:

ST Tail Set

Connector:

Diameter:

2.0/3.0mm

Color:

White Or Customized

Mode:

SM/MM

OEM:

Available

Supply Ability:

100000 per week

Highlight:

fiber optic parts and accessories

fiber optic accessories

Product Description

White Fiber Optic Cable Accessories / Fiber Optic Connector Boot For CATV System

Fiber patch cord use ST tail set 2.0 / 3.0 mm diameter White color

Ordering Options

Ferrule Specifications

Ferrule size: 125.0μm, 125.3μm, 125.5μm, 126.0μm, 127.0μm, 128.0μm
Ferrule type (for APC): Stepped; Conical

Boot Specifications

Boot type: slotted boot, smooth boot
Boot size: 0.9mm; 2.0mm; 3.0mm
Boot color: Beige; Black; Blue; Grey; Red; White; Yellow
Housing Color: Beige; Blue; Red

Performance Parameters

Parameter	Single Mode	Multimode
Insertion loss	0.2dB	0.3dB
Return loss	≥55dB (≥65dB APC)	-
Durability	0.1dB typical change, 500 mating
Operating Temperature	-40°C to +75°C

Key Features

Accurate mechanical dimensions
Low insertion loss, high return loss
Excellent compatibility
Excellent repeatability
No polishing, no Epoxy required
More convenient to install
Life time: at least 1 year

Applications

Optical fiber communication system
Optical fiber test equipment
Optical fiber access network
Optical fiber sensor
Optical fiber CATV system
Optical fiber data transmission
Local area network

Product Description

An optical fiber connector is a flexible device that connects fiber cables requiring quick connection and disconnection. It keeps the ends of the fiber properly aligned, allowing the fiber receiver to get maximum light from the launching fiber while minimizing energy loss for the system due to the intervention of the optic link. This is the basic requirement for fiber optic connectors. To some extent, fiber optic connectors have significant effects on the stability and performance of fiber-optical transmission systems.

Technical Specifications

Basic Specifications

Specification	Details
Connector type	SC
Standards	IEC, RoHS
Color	Customized
Mode	SM/MM
Sleeve	Ceramic/Phosphor Bronze

Detailed Performance Parameters

Parameter	Unit	LC,SC,FC,ST,MTRJ,MOP
Single Mode
Insertion Loss (Typical)	dB	≤0.2
Return Loss	dB	≥45 (PC), ≥50 (UPC), ≥60 (APC)
Multimode
Insertion Loss (Typical)	dB	≤0.2
Return Loss	dB	≥30
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating temperature	℃	-40~75
Storage temperature	℃	-40~85
