Product Details:
|
Name: | Lc To Lc Fiber Patch Cable | Diameter: | 1.2 Mm |
---|---|---|---|
Model: | Single | Connector: | LC-LC |
Color: | Yellow | Length: | 3 Meter |
Highlight: | sc sc fiber patch cord,single mode fiber optic cable |

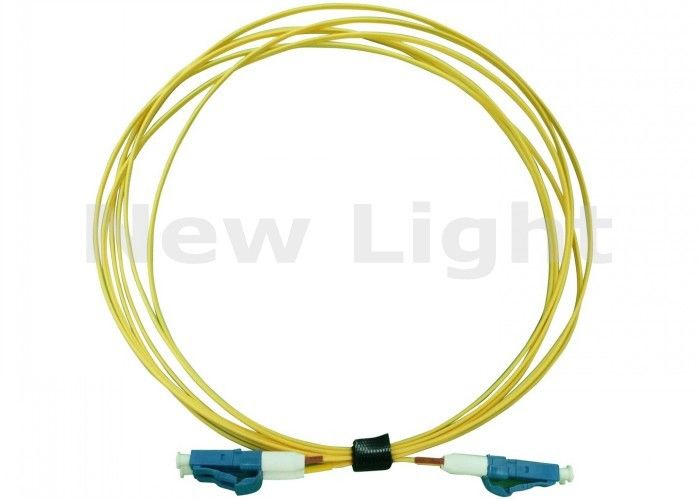

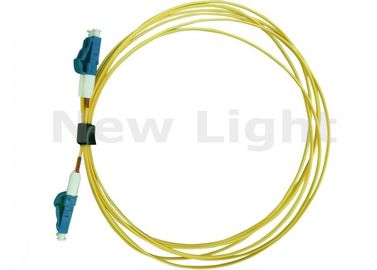

Yellow color LC-LC SM SX 9/125 1.2mm diameter cable PVC material 3 meters length
Specifications
Specification | Unit | FC, SC, LC/Armored Cables | ST, MU | MT-RJ, MPO | E2000 | ||||||||
Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | |||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
Insertion loss | dB | ≤2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥550 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
Characteristics
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
Applications
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
Features
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
CE,ROHS,FCC
