Specification	Unit	FC, SC, LC/Armored Cables			ST, MU		MT-RJ, MPO		E2000
		Single-mode PC	Single-mode UPC	Single-mode APC	Multi-mode PC	Single-mode PC	Multi-mode PC	Single-mode UPC	Multi-mode PC	Single-mode APC
Insertion loss	dB	≤2	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2
Return loss	dB	≥550	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50
Wavelength	nm	1310,1510			1310,1510		1310,1510		1310,1510
Interchangeability	dB	≤0.2			≤0.2		≤0.2		≤0.2
Vibration	dB	≤0.2			≤0.2		≤0.2		≤0.2
Operating temperature	℃	-40~75			-40~75		-40~75		-40~75
Storage temperature	℃	-45~85			-45~85		-45~85		-45~85
Cable diameter	mm	φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9		φ3.0,φ2.0,φ0.9		φ3.0,φ2.0,φ0.9

Product Characteristics

Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6 cores, 12 cores, 16 cores, 24 cores, 36 cores, 48 cores
Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Applications

CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications

Key Features

Low insertion loss and back reflection loss
Good exchangeability
Good durability
High temperature stability
CE, ROHS, FCC certified

Tags:

single mode fiber optic cable

duplex fiber patch cord

sc sc fiber patch cord

Products Details

Home > Products >

Optical Fiber Patch Cord

Yellow LC-LC Fiber Patch Cord with PVC Material and 3 Meter Length for Reliable Connectivity

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

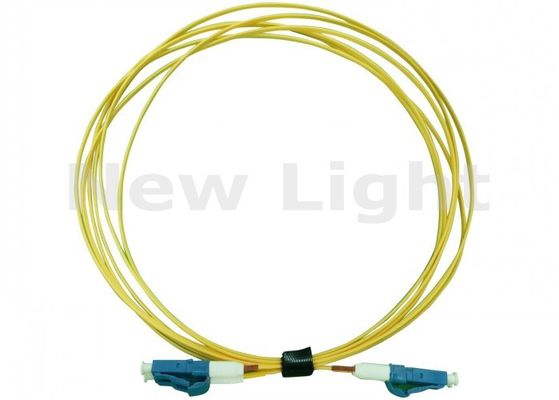

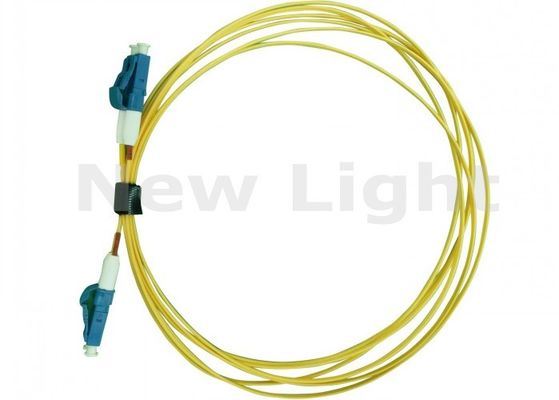

Yellow LC-LC Fiber Patch Cord with PVC Material and 3 Meter Length for Reliable Connectivity

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

Lc To Lc Fiber Patch Cable

Diameter:

1.2 Mm

Model:

Single

Connector:

LC-LC

Color:

Yellow

Length:

3 Meter

Minimum Order Quantity:

1~100000

Price:

0.1~100

Packaging Details:

1 pcs per pack

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:
