Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6 cores, 12 cores, 16 cores, 24 cores, 36 cores, 48 cores
Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Mechanical Properties

Interchangeability	≤ 0.1 dB
Vibration	≤ 0.1 dB (5 to 50Hz, 1.5mm)
Tensile strength	≤ 0.1 dB (0 to 15Kg pull)
High temperature	≤ 0.2 dB (+85°C for 50 hours)
Low temperature	≤ 0.2 dB (-40°C for 50 hours)
Temperature cycling	≤ 0.2 dB (-40°C to 85°C, 5 cycles)
Humidity	≤ 0.2 dB (-25°C ~ 65°C, 93%)

Applications

Signal transmission and data transmission
Telecommunications network, local area network (LAN), metropolitan area networks
Optical fiber communication systems
Fiber optic test equipment and instrumentation
Optical fiber CATV (cable television), optical fiber sensors
Fiber-optic broadband-home, FTTH fiber to the home
Fiber optic patch panels, rack and wall mount fiber optic wiring units

Product Specifications

Connector	SC to SC	Jacket OD	1.2 mm
Fiber Mode	9/125µm	Jacket Color	Yellow
Polish	UPC to UPC	Wavelength	1310/1550nm
Fiber Type	Duplex	Jacket Material	PVC
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥50dB	Vibration	≤0.2dB
Operating temperature	-40~70℃	Storage temperature	-45~85℃
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Key Features

Good durability

Good exchangeability

High temperature stability

Low insertion loss and back reflection loss

Superior quality standard PC/UPC/APC Polishing

Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards

Tags:

fiber optic pigtail

ftth fiber optic cable

single mode fiber jumpers

Products Details

Home > Products >

Fiber Optic Cables

SC-SC Fiber Optic Jumper Cable with 1.2mm Diameter Duplex Fiber Type for Data Test Equipment

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

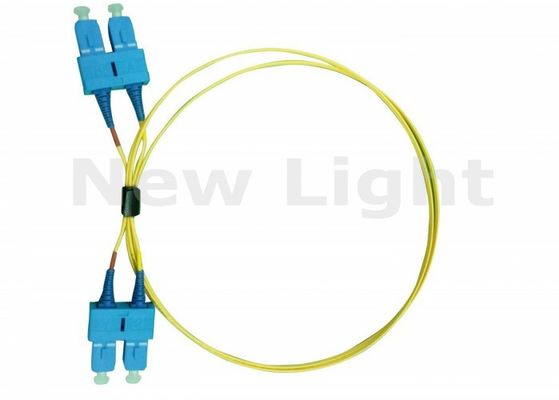

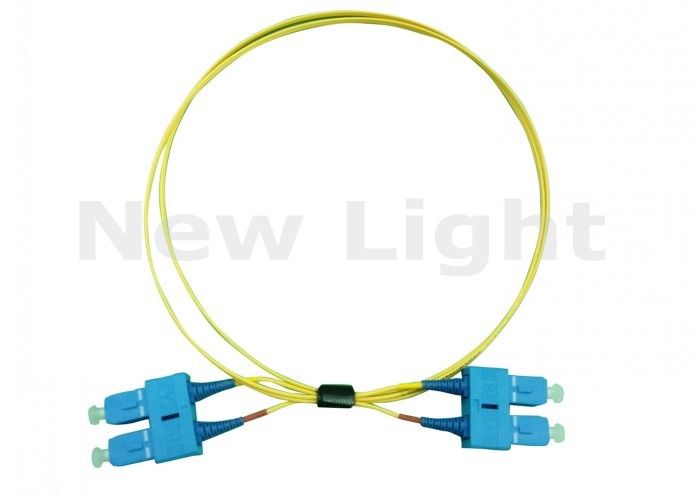

SC-SC Fiber Optic Jumper Cable with 1.2mm Diameter Duplex Fiber Type for Data Test Equipment

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

SC-SC Fiber Patch Cord

Diameter:

1.2mm

Fiber Type:

Duplex

Connector:

SC-SC

Color:

Yellow

Length:

3 Meter

Minimum Order Quantity:

1 roll

Price:

0.1~100

Packaging Details:

export packing

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:
