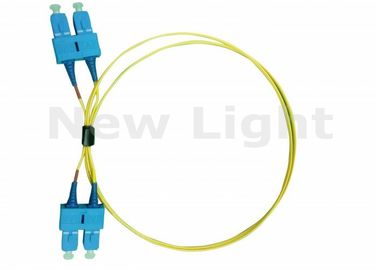

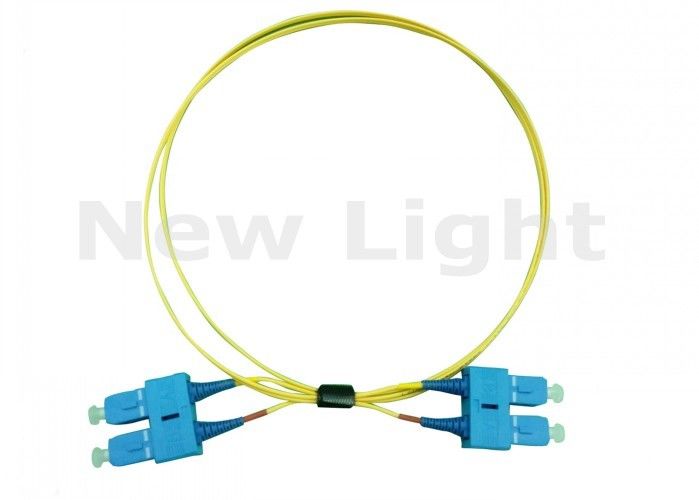

SC SC Fiber Optic Jumper Cables SM DX 9-125 1.2mm Diameter For Data Test Equipment

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T, Western Union, MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

SC-SC Fiber Patch Cord

Diameter:

1.2mm

Fiber Type:

Duplex

Connector:

SC-SC

Color:

Yellow

Length:

3 Meter

Supply Ability:

1000000

Highlight:

fiber optic pigtail

ftth fiber optic cable

Product Description

Data test equipment use SC-SC Fiber Optic Jumper cables SM DX 9-125 1.2mm diameter PVC Yellow

Ordering options

1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored

Mechanical properties

Interchangeability (dB): ≤ 0.1

Vibration (dB): ≤ 0.1 (5 to 50Hz, 1.5mm)

Tensile strength (dB): ≤ 0.1 (0 to 15Kg pull)

The high temperature ≤ 0.2dB (+85 ° C for 50 hours)

Low temperature ≤ 0.2dB (-40 ° C for 50 hours)

Temperature cycling ≤ 0.2dB (-40 ° Cto 85 ° C, 5 cycles)

Humidity ≤ 0.2dB (-25 ° C ~ 65 ° C, 93%)

Application:

Signal transmission and data transmission

Telecommunications network, local area network (LAN), metropolitan area networks, optical fiber communication systems

Fiber optic test equipment / instrumentation

Optical fiber CATV (cable television), optical fiber sensors

Fiber-optic broadband-home, FTTH fiber to the home

Fiber optic patch panels, rack and wall mount fiber optic wiring unit

Ordering Options:

Connector type	SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc
Polish	UPC,APC,PC
Cable type	Simplex,Duplex straight,Duplex Reverse
Fiber	SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655)
Cable Jacket	Riser,Plenum,LSZH
Cable Diameter	3.0mm,2.0mm,0.9mm,etc
Cable Length	Length in meter

Type:

* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.

* Ferrule endface: PC,UPC,APC,etc.

* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.

* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.

* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.

Specification:

Connector	SC to SC	Jacket OD	1.2 mm
Fiber Mode	9/125µm	Jacket Color	Yellow
Polish	UPC to UPC	Wavelength	1310/1550nm
Fiber Type	Duplex	Jacket Material	PVC
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥50dB	Vibration	≤0.2dB
Operating temperature	-40~70℃	Storage temperature	-45~85℃
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Features

* Good durability

* Good exchangeability

* High temperature stability

* Low insertion loss and back reflection loss

* Superior quality standard PC/UPC/APC Polishing

* Standard: Telcordia GR-326-CORE,TIA/EIA and IEC

SC SC Fiber Optic Jumper Cables SM DX 9-125 1.2mm Diameter For Data Test Equipment 0
