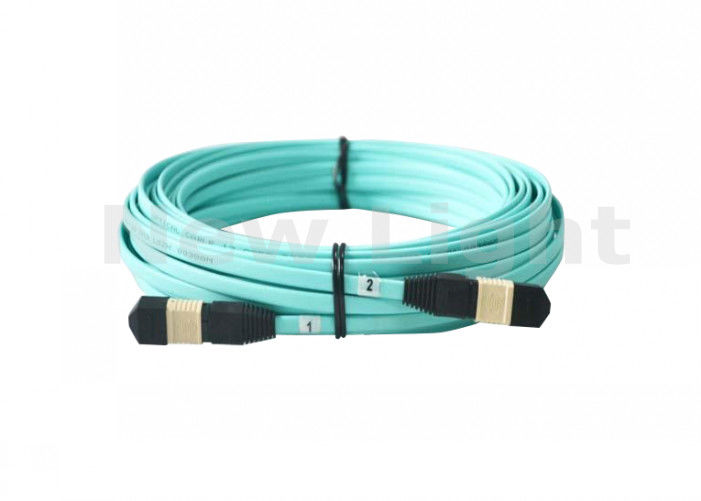

15 Meters MPO MTP Cable OM3 12 Strand Multimode Fiber Optic Cable For QSFP / SR Module

15 Meters MPO MTP Cable OM3 12 Strand Multimode Fiber Optic Cable For QSFP / SR Module

    • 15 Meters MPO MTP Cable OM3 12 Strand Multimode Fiber Optic Cable For QSFP / SR Module
  • 15 Meters MPO MTP Cable OM3 12 Strand Multimode Fiber Optic Cable For QSFP / SR Module

    Product Details:

    Place of Origin: China
    Brand Name: New Light
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiate
    Packaging Details: 1 piece per pack
    Delivery Time: within 2 weeks
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Color: Green Name: MPO-MPO Cable
    Connector: MPO - MPO Length: 15 Meters
    Mode: Multimode OEM: Available
    High Light:

    mpo fiber cable

    ,

    mpo to mpo cable

    15Meters MPO/MTP(Female)-MPO(Female) OM3 12strands Fiber optical cable for QSFP+SR module







    Standards Compliance:



    Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.

    Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.

    MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.



    Feature:

    Connector End face: MPO end face geometry requirements: EN50377-15-1

    Polishing Quality:: Polished end-face quality: IEC61300-3-35

    Our MPO patch cables are designed for data center solutions supporting the topologies such as 10
    Gigabit Ethernet, Fiber Channel or Infiniband - as specified in the data center standards EN50173-5 and
    ISO/IEC 24764.





    Description:



    Optimized Performance- Assemblies constructed with low loss MPO/MTP OECE proprietary MT polishing Provides low insertion loss and high return loss, minimizing variability for improved channel link loss performance.









    Technical Specifications:

    Parameters Standard Fiber Cable Assemblies
    Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3)
    Jacket Materials LSZH/OFNR/PVC
    Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
    Ferrule Materials Ceramic
    Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
    Insertion Losss(dB)
    TIA/EIA-455-107
    ≤ 0.3dB
    (PC/UPC/APC)
    ≤ 0.3dB
    (PC/UPC)
    Return Loss(dB)
    TIA/EIA-455-107
    ≥45dB(PC/UPC)
    ≥55dB(APC)
    ≥35dB(PC/UPC)
    Exchangeability ≤ 0.2dB
    Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
    Operating Temperature (° C) -10~ + 70
    Storage Temperature (° C) -40 ~ +85
    Package 1unit/bag
    *All values specified are with connectors.




    MPO Detail:



    MPO patch cables are used to make the interconnections between the MPO cassettes or connections to active equipment with MPO/MTP interface.

    In cases where an MPO patch cord is connected (through an MPO coupler) to another MPO patch cable, one of the two MPO connectors must be male (equipped with pins).

    MPO patch cables are available in 3 different wire map configurations: Straight, Total Flipped or Pair Flipped

    MPO patch cables are available in multi-mode and single-mode fiber cable.



    Applications



    Performance of Assemblies MTP / MPO Termination:



    Type/Performance Singlemode(APC polish) Multimode(PC / Flat Polish)
      Standard Elite Low Loss Standard Elite Low Loss
    Maximum Insertion Loss ≤ 0.75dB ≤ 0.35dB ≤ 0.60dB ≤ 0.35dB
    Return Loss ≥ 50dB N/A
    Operating Temperature -40°C to 80°C 40°C to 80°C
    Test Wavelength 1310nm

    850nm
