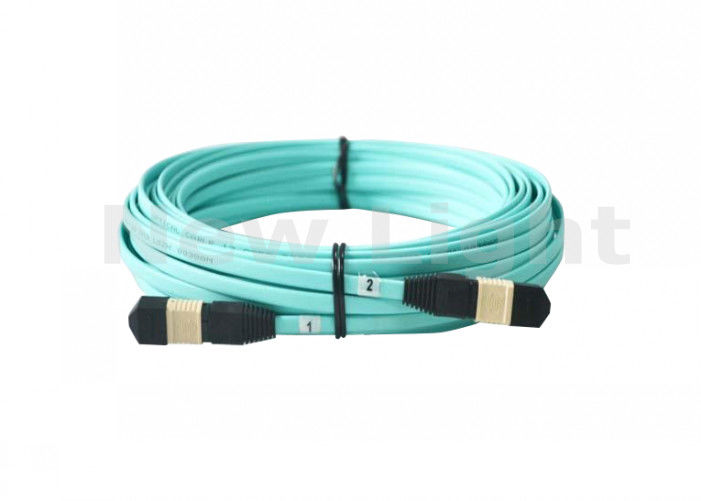

15-meter MPO/MTP (Female)-MPO (Female) OM3 12-strand fiber optic cable engineered for high-performance data center connectivity with QSFP+ SR modules.

Standards Compliance

Jacketed cable compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating
Compliant with Directive 2002/95/EC (RoHS) and REACH SvHC
MPO connector complies with IEC-61754-7 & EIA/TIA-604-5 standards

Key Features

MPO end face geometry requirements: EN50377-15-1
Polished end-face quality: IEC61300-3-35
Designed for data center solutions supporting 10 Gigabit Ethernet, Fiber Channel, and Infiniband
Compliant with data center standards EN50173-5 and ISO/IEC 24764
Optimized performance with low loss MPO/MTP OECE proprietary MT polishing
Provides low insertion loss and high return loss for improved channel link loss performance

Technical Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A) \| MM(OM1/OM2/OM3)
Jacket Materials	LSZH / OFNR / PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm \| 850±30/1300±30nm
Insertion Loss (dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC) \| ≤ 0.3dB (PC/UPC)
Return Loss (dB) TIA/EIA-455-107	≥45dB (PC/UPC) ≥55dB (APC) \| ≥35dB (PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C)	-10 to +70
Storage Temperature (°C)	-40 to +85
Package	1 unit/bag

*All values specified are with connectors

MPO Configuration Details

MPO patch cables are used for interconnections between MPO cassettes or connections to active equipment with MPO/MTP interface.

When connecting MPO patch cords through an MPO coupler, one of the two MPO connectors must be male (equipped with pins).

Available in 3 different wire map configurations: Straight, Total Flipped, or Pair Flipped.

Available in multi-mode and single-mode fiber cable options.

Performance Specifications

Type/Performance	Singlemode (APC polish)	Multimode (PC / Flat Polish)
Standard	Elite Low Loss	Standard
Maximum Insertion Loss	≤ 0.75dB \| ≤ 0.35dB	≤ 0.60dB \| ≤ 0.35dB
Return Loss	≥ 50dB \| N/A
Operating Temperature	-40°C to 80°C	-40°C to 80°C
Test Wavelength	1310nm	850nm

WHATSAPP +8613534063703

Tags:

mpo to mpo cable

mpo fiber cable

mpo fanout cable

Products Details

Home > Products >

MPO MTP Cable

15 Meters OM3 12 Strand Multimode MPO MTP Fiber Optic Cable for QSFP/SR Module

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

15 Meters OM3 12 Strand Multimode MPO MTP Fiber Optic Cable for QSFP/SR Module

Brand Name:	New Light
MOQ:	1~10000
Price:	6~15
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

Color:

Green

Name:

MPO-MPO Cable

Connector:

MPO - MPO

Length:

15 Meters

Mode:

Multimode

OEM:

Available

Minimum Order Quantity:

1~10000

Price:

6~15

Packaging Details:

1 piece per pack

Delivery Time:

within 2 weeks

Payment Terms:

T/T,Western Union,MoneyGram

Supply Ability:

1000 pcs per month
