12 Core Multimode MPO MTP Cable with LSZH Jacket for High-Density Fiber Optic Applications

Brand Name: New Light
MOQ: 1~10000
Price: 6~15
Packaging Details: 1 piece per pack
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Orange
Name:
MPO TO MPO Cable
Connector:
MPO - MPO
Length:
5 Meters
Mode:
Multimode
OEM:
Available
Supply Ability:
1000 pcs per month
Highlight:

mpo fiber cable

,

mpo to mpo cable

Product Description

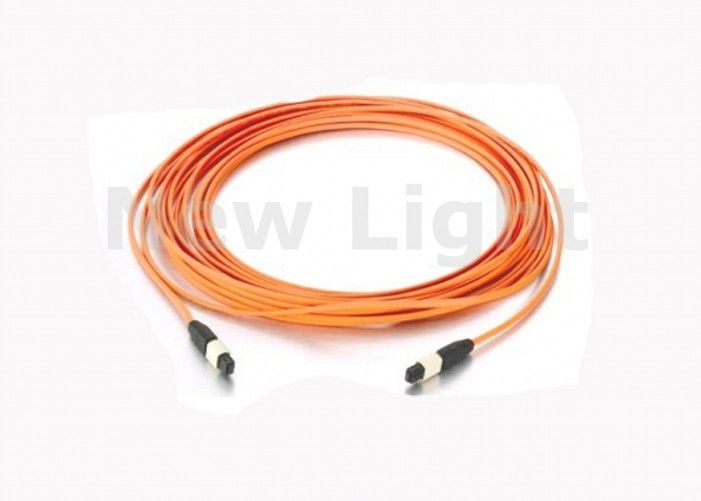

12 Core Multimode MPO MTP Cable - 50/125, 5 Meter, 3.0mm Mini Round LSZH
This 12-core multimode MPO male to MPO male patch cord features 50/125 fiber specification in a 5-meter length with orange LSZH (Low Smoke Zero Halogen) jacket and compact 3.0mm mini round design.
Key Features
  • Precision molded MT ferrule for optimal performance
  • High precision guide pins ensuring exact fiber alignment
  • Compact design supporting up to 4, 8, 12, or 24 fibers
  • IEC 61754-7 compliant construction
  • Telcordia GR-1435-CORE compliance for reliability
Applications
  • Asynchronous Transmission Mode (ATM) networks
  • Gigabit Ethernet infrastructure
  • Active device and transceiver interfaces
  • CATV, video, and multimedia systems
  • Premise installations and data centers
  • Telecommunication networks
Product Overview
MPO multi-fiber connectors are designed for high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. The MPO connector provides up to 12 times the density of standard connectors, delivering significant space and cost savings. These patch cords utilize precision molded MT ferrules with metal guide pins and precise housing dimensions to ensure optimal fiber alignment during mating operations.
Standards Compliance
Jacketed cable complies with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame ratings. All products are compliant with Directive 2002/95/EC (RoHS) and REACH SvHC requirements. MPO connectors meet IEC-61754-7 and EIA/TIA-604-5 standards.
Technical Specifications
Parameter Standard Fiber Cable Assemblies
Fiber Type SM (G.652/G.657A) | MM (OM1/OM2/OM3)
Jacket Materials LSZH / OFNR / PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm | 850±30/1300±30nm
Insertion Loss (dB) ≤ 0.3dB (PC/UPC/APC) | ≤ 0.3dB (PC/UPC)
Return Loss (dB) ≥45dB (PC/UPC) ≥55dB (APC) | ≥35dB (PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C) -10 to +70
Storage Temperature (°C) -40 to +85
Package 1 unit/bag
MPO Configuration Details
MPO patch cables facilitate interconnections between MPO cassettes or connections to active equipment with MPO/MTP interfaces. When connecting MPO patch cords through an MPO coupler, one connector must be male (equipped with pins). Available in three wire map configurations: Straight, Total Flipped, or Pair Flipped. Offered in both multi-mode and single-mode fiber cable options.
Performance Specifications
Type/Performance Singlemode (APC polish) Multimode (PC / Flat Polish)
Standard Maximum Insertion Loss ≤ 0.75dB ≤ 0.60dB
Elite Low Loss Maximum Insertion Loss ≤ 0.35dB ≤ 0.35dB
Return Loss ≥ 50dB N/A
Operating Temperature -40°C to 80°C -40°C to 80°C
Test Wavelength 1310nm 850nm
Contact: WHATSAPP +8613534063703
