Good price online

products details

Home > Products >
MPO MTP Cable
>
12 Core Harness MPO TO LC Cable , SM SX 0.9mm 50 cm Length MPO Fanout Cable
All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket
Contact Us
Mrs. Alice
sales03@newlightfiber.com
0086-13534063703
wechat 86 13534063703
Contact Now
Name
  • Name
  • Name

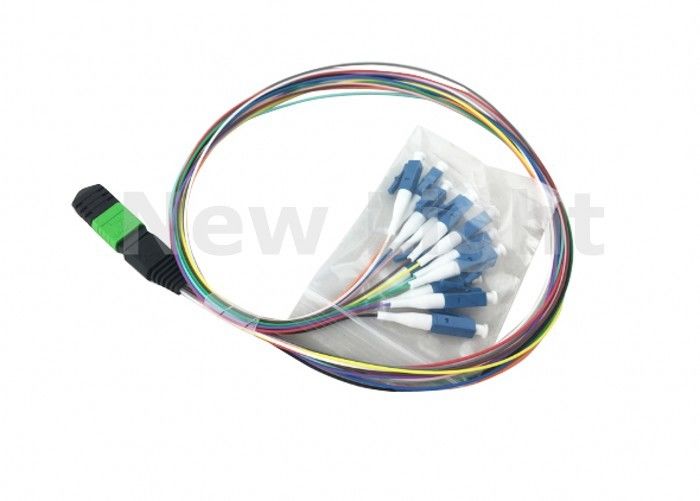

12 Core Harness MPO TO LC Cable , SM SX 0.9mm 50 cm Length MPO Fanout Cable

Brand Name: New Light
MOQ: 1~10000
Price: 6~15
Packaging Details: 1 piece per pack
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Green
Name:
MPO-LC Cable
Connector:
MPO - LC
Length:
1 Meters
Mode:
Single Mode
OEM:
Available
Supply Ability:
1000 pcs per month
Highlight:

mpo fiber cable

,

mpo to mpo cable

Product Description

MPO Female to 12cores harness LC/UPC Fiber Optic Fan Out Pigtail,SM,SX,0.9mm,50cm Length







Features


· 8-12 core fiber available
· Cross Connection : AB/BA
· Paralled Connection : AB/AB
· Small volume, easy management
· Insertion Loss : Low IL & Standard IL available
· Can customize connection method as QSFP requirements


Area of application


· Telecom system
· Cabling system
· High Density optical laser
· QSFP devices








Description:





MPO/MTP to LC Internal Fan Out Cable interface multifibre MPO/MTP with discrete single fiber (LC/SC mainly) connectors. Assemblies are typically used to directly interconnect MTP/MPO cassettes, panels or backbone trunk assemblies with the active equipment ports, saving costly data centre rack space and easing fibre management. Replacing traditional MTP/MPO module Fan-Out Assemblies reduce amount of interconnection improving power budget cost
MPO/MTP to LC Fan Out Cable is built with highest quality components. Standard MPO/MTP® as well low loss Elite versions and premium LC/SC are offered featuring low insertion loss for demanding high speed networks where power budgets are critica











MPO/MTP® Interface - MPO/MTP® components feature superior optical and mechanical properties
Optimised Performance - Low loss MPO/MTP® Elite, discrete Premium (LC.SC mainly) connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget high speed network environment
High Density - Multifibre connector and compact dimension of ruggedised MicroCable ease space in costly data centre environments
Rapid Deployment - Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
Reliability - 100% tested - Combination of high quality components and manufacturing quality control guarantees product to the highest standard
Next Generation Network Proof - Emerging high speed protocol are going to use MPO/MTP® interface







Standards Compliance:



Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.

Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.

MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.





Technical Specifications:

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		 ≤ 0.3dB
(PC/UPC/APC)		 ≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥45dB(PC/UPC)
≥55dB(APC)		 ≥35dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.








Type/Performance Singlemode(APC polish) Multimode(PC / Flat Polish)
  Standard Elite Low Loss Standard Elite Low Loss
Maximum Insertion Loss ≤ 0.75dB ≤ 0.35dB ≤ 0.60dB ≤ 0.35dB
Return Loss ≥ 50dB N/A
Operating Temperature -40°C to 80°C 40°C to 80°C
Test Wavelength 1310nm

850nm









12 Core Harness MPO TO LC Cable , SM SX 0.9mm 50 cm Length MPO Fanout Cable 0
