12 Core Single Mode MPO to LC Fanout Cable with Low Insertion Loss for High Density Networks

Brand Name: New Light
MOQ: 1~10000
Price: 6~15
Packaging Details: 1 piece per pack
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Green
Name:
MPO-LC Cable
Connector:
MPO - LC
Length:
1 Meters
Mode:
Single Mode
OEM:
Available
Supply Ability:
1000 pcs per month
Highlight:

mpo fiber cable

,

mpo to mpo cable

Product Description

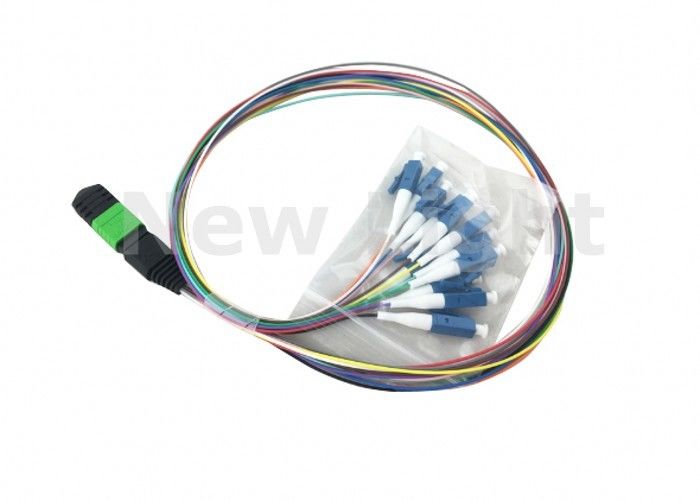

12 Core Harness MPO to LC Cable
MPO Female to 12 cores harness LC/UPC Fiber Optic Fan Out Pigtail, Single Mode, 0.9mm, 50cm Length
Key Features
  • 8-12 core fiber configurations available
  • Cross Connection: AB/BA
  • Parallel Connection: AB/AB
  • Compact design for easy cable management
  • Low Insertion Loss and Standard IL options
  • Customizable connection methods for QSFP requirements
Applications
  • Telecom systems
  • Structured cabling systems
  • High density optical laser systems
  • QSFP devices and transceivers
Product Overview
MPO/MTP to LC Internal Fan Out Cable interfaces multifiber MPO/MTP connectors with discrete single fiber LC connectors. These assemblies are designed to directly interconnect MTP/MPO cassettes, panels, or backbone trunk assemblies with active equipment ports, optimizing data center rack space and simplifying fiber management. By replacing traditional MTP/MPO module Fan-Out Assemblies, these cables reduce interconnection complexity while improving power budget efficiency.
Built with premium quality components, our MPO/MTP to LC Fan Out Cables are available in standard MPO/MTP® and low loss Elite versions featuring premium LC connectors. These cables deliver low insertion loss performance essential for demanding high-speed networks where power budgets are critical.
Product Advantages
  • MPO/MTP® Interface: Superior optical and mechanical properties
  • Optimized Performance: Low loss Elite connectors and OM4 fiber ensure minimal insertion losses
  • High Density: Multifiber connectors and compact MicroCable design maximize space utilization
  • Rapid Deployment: Factory-terminated modular system reduces installation time
  • Reliability: 100% tested with rigorous quality control standards
  • Future-Proof: Compatible with emerging high-speed protocols using MPO/MTP® interface
Standards Compliance
Jacketed cable complies with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame ratings. Compliant with Directive 2002/95/EC (RoHS) and REACH SvHC. MPO connector meets IEC-61754-7 & EIA/TIA-604-5 standards.
Technical Specifications
Parameters Standard Fiber Cable Assemblies
Fiber Type SM (G.652/G.657A) | MM (OM1/OM2/OM3)
Jacket Materials LSZH / OFNR / PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm | 850±30/1300±30nm
Insertion Loss (dB) ≤ 0.3dB (PC/UPC/APC) | ≤ 0.3dB (PC/UPC)
Return Loss (dB) ≥45dB (PC/UPC) ≥55dB (APC) | ≥35dB (PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C) -10 to +70
Storage Temperature (°C) -40 to +85
Package 1 unit/bag
Performance Specifications
Type/Performance Singlemode (APC polish) Multimode (PC / Flat Polish)
Standard | Elite Low Loss Standard | Elite Low Loss
Maximum Insertion Loss ≤ 0.75dB | ≤ 0.35dB ≤ 0.60dB | ≤ 0.35dB
Return Loss ≥ 50dB | N/A N/A
Operating Temperature -40°C to 80°C -40°C to 80°C
Test Wavelength 1310nm 850nm
12 Core Single Mode MPO to LC Fanout Cable with Low Insertion Loss for High Density Networks 0
