Product Details:
|
| Name: | E2000 - E2000 Patch Cord | Diameter: | 2.0mm |
|---|---|---|---|
| Fiber Type: | Simplex | Connector: | E2000-E2000 |
| Color: | Yellow | Length: | 3 Meter |
| High Light: | fiber optic pigtail,single mode fiber jumpers |
||

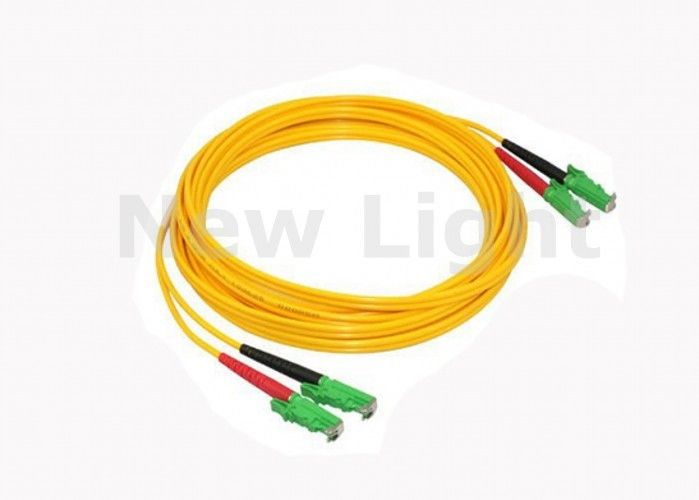

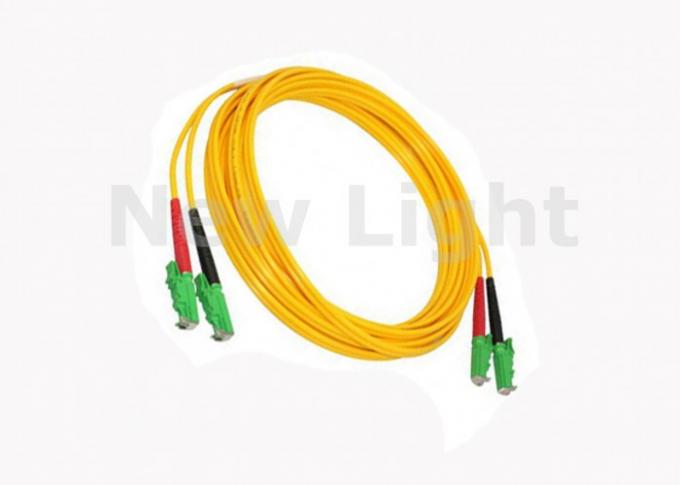

1.5Meter 2.0 mm diameter PVC Jacket Fiber Optic patch cord E2000/APC single model simplex
Feature:
1. Low insertion loss, back reflection & high return loss
2. UL-rated plastic housing and boots in a variety of colors
3. Push-pull design makes excellent mechanism endurance
4. High quality of ceramic ferrules
5. High credibility and stability, good in repeatability and exchangeability
6. Compliance with ROSH’s request
Application
1. CATV
2. Telecommunication networks
3. Wide Area Networks
4. Industrial ,medical &military
5. Local Area Networks
6. Test equipment
7. Active device termination
8. Data processing networks
Availabilities&Ordering:
1. Full specifications, FC, SC, ST, LC, MTRJ etc.
2. Simplex and Duplex assemblies available
3. Singlemode and multimode available
4. PC, UPC and APC polishing available
5. PVC and LSZH outer sheath.
6. 0.9mm, 2.0mm and 3.0mm cable size
7. Hybrid patch cords are available upon request
8. Fan-out available (Ribbon/ bundle)
9. Pigtail available
10. Loopback available
11. Customized length
Ordering Options:
| Connector type | SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc |
| Polish | UPC,APC,PC |
| Cable type | Simplex,Duplex straight,Duplex Reverse |
| Fiber | SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655) |
| Cable Jacket | Riser,Plenum,LSZH |
| Cable Diameter | 3.0mm,2.0mm,0.9mm,etc |
| Cable Length | Length in meter |
Type:
* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.
* Ferrule endface: PC,UPC,APC,etc.
* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.
* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.
* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.
Specification:
| Connector | E2000 to E2000 | Jacket OD | 3.0mm |
| Fiber Mode | 9/125µm | Jacket Color | Yellow |
| Polish | APC to APC | Wavelength | 1310/1550nm |
| Fiber Type | Simplex | Jacket Material | PVC |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~70℃ | Storage temperature | -45~85℃ |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G652D |
