Good price online

products details

Home > Products >
MPO MTP Cable
>
OM3 Multimode MPO Fiber Cable 8 Core 10 Meter MPO-MPO Patch Cord for QSFP Transceiver
All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket
Contact Us
Mrs. Alice
sales03@newlightfiber.com
0086-13534063703
wechat 86 13534063703
Contact Now
name
  • name
  • name
  • name

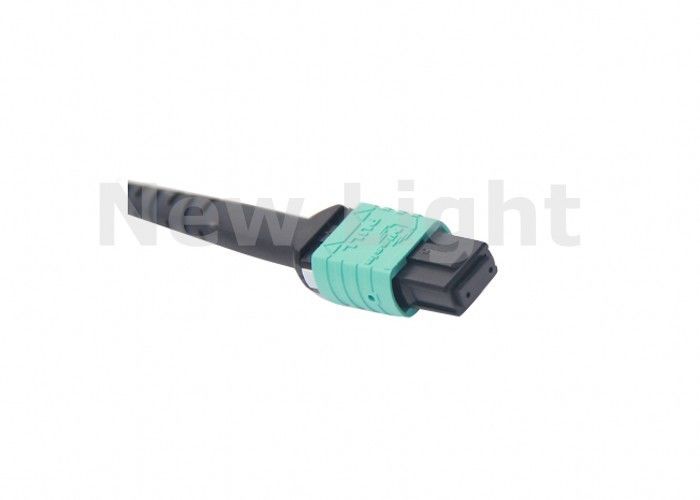

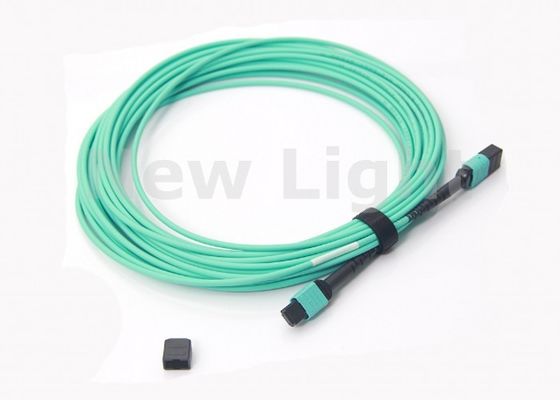

OM3 Multimode MPO Fiber Cable 8 Core 10 Meter MPO-MPO Patch Cord for QSFP Transceiver

Brand Name: New Light
MOQ: 1~10000
Price: 6~15
Packaging Details: 1 piece per pack
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Green
Name:
MPO TO MPO Cable
Connector:
MPO - MPO
Length:
10 Meters
Mode:
Multimode
OEM:
Available
Supply Ability:
1000 pcs per month
Highlight:

mpo fiber cable

,

mpo to mpo cable

Product Description
Green MPO Fiber Cable - Multi Mode OM3 8 Core 10 Meter
MPO-MPO Fiber Optic Patch Cord Multi-Mode OM3 8 Core 10-Meter (33 Feet) For QSFP+ Transceiver
Specifications
• MPO (female) to MPO (female)
• MMF (50/125um), OM3
• 8-Core Fiber for QSFP+ Transceiver
• Cable Length: 10-Meter (33ft)
• Insertion loss: ≤0.6dB
• Return loss: ≥20dB
• Insert-pull test: 500 times <0.5 dB
• Operation temperature: -40°C to +80°C
• Pin Optional: Default FEMALE
• Polarity Optional: Default POLARITY B (For QSFP+ SR4)
Product Description
Single mode and multimode MPO products are multi-fiber connectors used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. The MPO connector offers up to 12 times the density of standard connectors, providing significant space and cost savings. MPO patch cords utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combinations of 4, 8, 12 or 24 fibers.
Key Features
  • Precision molded MT ferrule
  • High precision guide pins for exact alignment
  • Compact design, up to 4, 8, 12, 24 fibers
  • IEC 61754-7 Compliant
  • Telcordia GR-1435-CORE compliant
Applications
  • Asynchronous Transmission Mode (ATM)
  • Gigabit Ethernet
  • Active Devices/Transceiver Interface
  • CATV, Video and Multimedia
  • Premise Installations
  • Telecommunication Networks
Standards Compliance
Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating. Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC. MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.
Technical Specifications
Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) | MM(OM1/OM2/OM3)
Jacket Materials LSZH /OFNR/PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm | 850±30/1300±30nm
Insertion Loss (dB) TIA/EIA-455-107 ≤ 0.3dB (PC/UPC/APC) | ≤ 0.3dB (PC/UPC)
Return Loss (dB) TIA/EIA-455-107 ≥45dB(PC/UPC) ≥55dB(APC) | ≥35dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C) -10 to +70
Storage Temperature (°C) -40 to +85
Package 1 unit/bag
MPO Patch Cable Details
MPO patch cables are used to make interconnections between MPO cassettes or connections to active equipment with MPO/MTP interface. In cases where an MPO patch cord is connected (through an MPO coupler) to another MPO patch cable, one of the two MPO connectors must be male (equipped with pins). MPO patch cables are available in 3 different wire map configurations: Straight, Total Flipped or Pair Flipped. MPO patch cables are available in multi-mode and single-mode fiber cable.
Performance of Assemblies MTP/MPO Termination
Type/Performance Singlemode (APC polish) Multimode (PC / Flat Polish)
Standard | Elite Low Loss Standard | Elite Low Loss
Maximum Insertion Loss ≤ 0.75dB | ≤ 0.35dB ≤ 0.60dB | ≤ 0.35dB
Return Loss ≥ 50dB | N/A
Operating Temperature -40°C to 80°C -40°C to 80°C
Test Wavelength 1310nm 850nm
OM3 Multimode MPO Fiber Cable 8 Core 10 Meter MPO-MPO Patch Cord for QSFP Transceiver 0
Contact via WhatsApp: +8613534063703
Tags:

mpo to mpo cable

mpo fiber cable

mpo fanout cable
