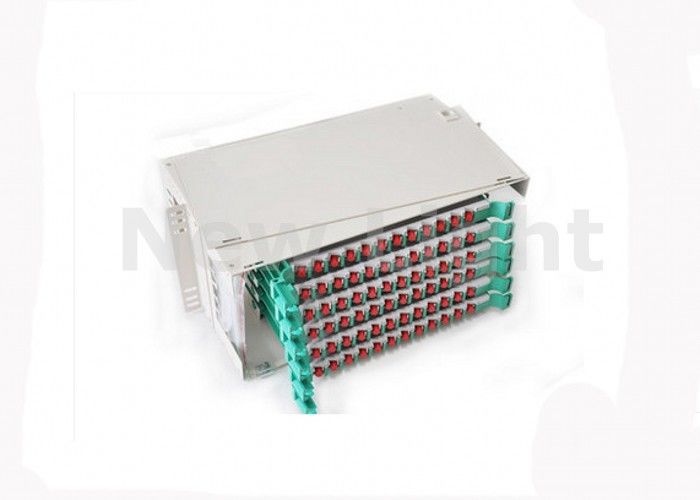

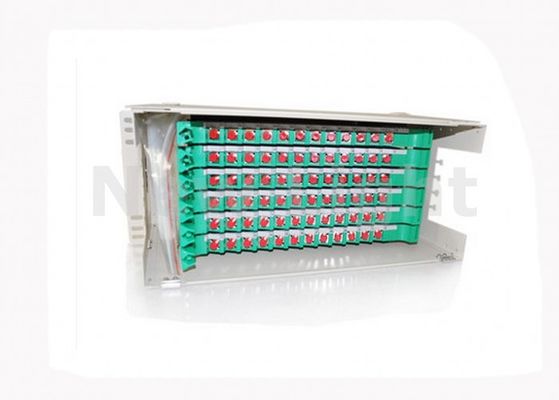

19 Inch 72 Port Fiber Optic Patch Panel ODF Optical Fiber Distribution Frame with Wall-mount Capability

Brand Name: New Light
MOQ: 1~10000
Price: 10~100
Packaging Details: 1 piece per pack
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Color:
White
Core Number:
72
Application:
FTTX, FTTH Odf
Fiber:
Simplex,Duplex
Name:
Optical Fiber Distribution Frame
OEM:
Available
Supply Ability:
1000 pcs per month
Highlight:

odf fiber optic patch panel

,

fiber optic distribution box

Product Description
72 Port Fiber Optic Distribution Frame (ODF)
This 19-inch 72-port fiber patch panel is designed for efficient optical network management in local and wide area networks. The metallic construction ensures durability while providing organized fiber optic cable distribution.
Product Overview
Optical Distribution Frame: 72 cores
Mounting Options: Wall-mount, pole-mount
Access Type: Front door
Material: Metallic
Environmental Specifications
  • Working temperature: -5°C to +40°C
  • Environmental temperature: -25°C to +55°C
  • Relative humidity: ≤85% (when temperature is below 30°C)
  • Atmosphere pressure: 70 Kpa to 106 Kpa
  • Storage temperature: -25°C to +55°C
Applications
  • Optical network systems
  • Local area networks (LAN)
  • Wide area networks (WAN)
Key Features
  • 19-inch standard rack mounting structure
  • Built-in slide rail for easy opening and closing
  • Compatible with FC, SC, ST, and LC adapters
Electrical Performance
Parameter Specification
Environment temperature -25°C to 55°C
Atmosphere pressure 70 to 106 Kpa
Insulating resistance >2*10⁴ MΩ/500VDC
Relative humidity <85% (when temperature is below 30°C)
Voltage resistance strength 15kV/DC/1min, non-puncture, no arc-over
Technical Specifications
Model ODF-12 ODF-24 ODF-48 ODF-72 ODF-96
Size (H*W*D) mm 430*300*1U 430*300*2U 430*300*3U 430*300*4U 430*300*6U
Cable diameter (mm) Φ5 to Φ10
Adapter ports 12 24 48 72 96
Max splice capacity 12 24 48 72 96
Compatible adapters FC, SC, ST, LC
Materials Stainless steel + ABS
Weight (kg) 1.5 5.5 8 9.8 15
Note: 1U = 44.45mm
19 Inch 72 Port Fiber Optic Patch Panel ODF Optical Fiber Distribution Frame with Wall-mount Capability 0
