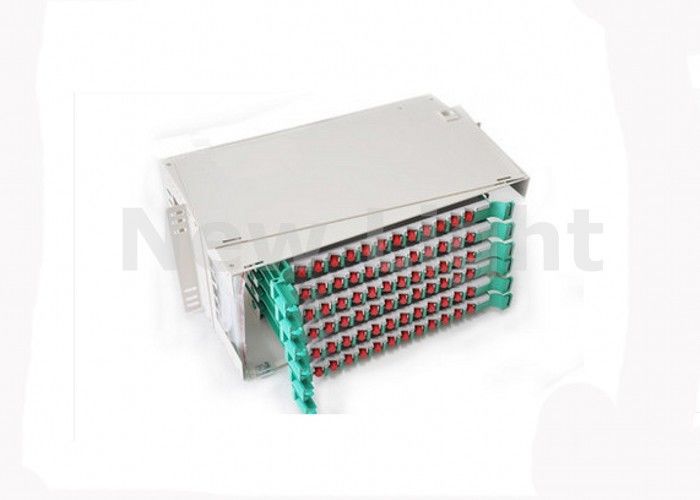

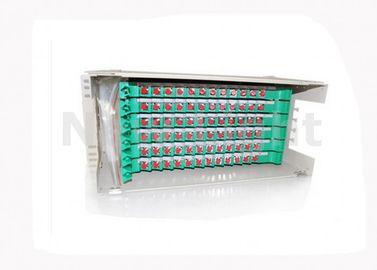

Local Area Networks Fiber Optic Distribution Frame ODF 19 Inch 72 Port Fiber Patch Panel

Brand Name:	New Light
MOQ:	1~10000
Price:	10~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

White

Core Number:

Application:

FTTX, FTTH Odf

Fiber:

Simplex,Duplex

Name:

Optical Fiber Distribution Frame

OEM:

Available

Supply Ability:

1000 pcs per month

Highlight:

odf fiber optic patch panel

fiber optic distribution box

Product Description

Optical network use 19 inch 72 core ODF optical fiber distribution frame 72 port fiber patch panel

Introduction:

ODF Optical Distribution Frames 72 cores
Mounting: Wall-mount, pole-mount
Access type: Front door
Material: Metallic

Environmental condition:

1. Working temperature: -5 - +40
2. Environmental temperature: -25 - +55
3. Relative humidity: ≤ 85%((when the temperature is below )
4. Atmosphere pressure: 70 Kpa~106Kpa
5. Storage temperature: -25- +55

Applications

· Optical network

· Local area networks

· Wide area networks

Features

· 19''standard structure, rack mounting,

· Built-in slide rail for easy open and close

· Available for the installation of FC,SC,ST,LC adapters.

ODF Electricity Performance:

Environment temperature	-25~55 degree
Atmosphere pressure	70~106Kpa
Insulating resistance	>2x104 MΩ/500VDC
Relative humidity	<85%(when the temperature is below 30 ℃
Voltage resistance strength	Under the effect of 15kv/DC/1min,non-puncture,and no arc-over

Specifications

Item	ODF-12	ODF-24	ODF-48	ODF-72	ODF-96
Size(HxWxD)mm	430x300x1U	430x300x2U	430x300x3U	430x300x4U	430x300x6U
Cable diameter(mm)	Ф5～Ф10
Adapter ports	12	24	48	72	96
Max capacity of splice	12	24	48	72	96
Suitable Adapter	FC,SC,ST,LC
Materials	Stainless steel+ABS
Weight(kg)	1.5	5.5	8	9.8	15

* 1U=44.45mm

Local Area Networks Fiber Optic Distribution Frame ODF 19 Inch 72 Port Fiber Patch Panel 0
