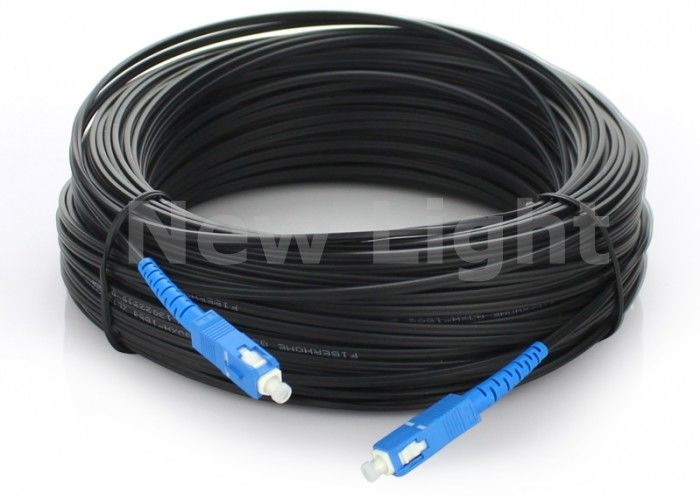

100M Length SC Fiber Optic Jumper Cable with G657A Fiber Type for Outdoor Use in FTTH Networks

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

SC Fiber Optic Patch Cord

Diameter:

2.0mm

Fiber Type:

Simplex

Connector:

SC-SC

Color:

Black

Length:

100 Meter

Supply Ability:

1000000

Highlight:

fiber optic pigtail

ftth fiber optic cable

Product Description

100M Outdoor SC Simplex FTTH Fiber Optic Jumper Cables

High-performance singlemode simplex G657A fiber optic patch cables designed for outdoor FTTH applications. Available in black color with SC connectors.

Key Features

Suitable for telecommunications networks
Available connector types: FC, SC, ST, MU, LC, MTRJ, MPO, SMA, E2000, DIN
High durability and reliability
Low insertion loss and high return loss
Single mode/multi mode options available
PC/UPC/APC polish types available
Available in single core, 2 cores, 4 cores, 6 cores, 8 cores, 12 cores and multi-core configurations

Technical Specifications

Insertion loss: ≤ 0.3dB
Return loss: ≥ 55dB
Durability: ≥ 1000 mating cycles
Operating temperature: -40°C to +80°C
Working wavelength: 1310-1550nm

Product Description

SC fiber optic cables are available in both single mode and multimode versions, fully intermateable with NTT-SC products. Both versions feature zirconia ceramic ferrules with pre-polished UPC profile and convex spherical ends for faster polishing, low back reflection, and minimal optical loss while ensuring maximum repeatability.

Ordering Options

Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule end-face: PC, UPC, APC
Core type: Single-mode (SM: 9/125μm), Multimode (MM: 50/125μm or 62.5/125μm)
Cable quantity: Simplex, Duplex, 6 cores, 12 cores, 16 cores, 24 cores, 36 cores, 48 cores
Cable diameter: φ3.0mm, φ2.0mm, φ0.9mm
Cable length: 1, 2, 3 meters or customized lengths
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Mechanical Properties

Interchangeability: ≤ 0.1dB
Vibration: ≤ 0.1dB (5 to 50Hz, 1.5mm)
Tensile strength: ≤ 0.1dB (0 to 15Kg pull)
High temperature: ≤ 0.2dB (+85°C for 50 hours)
Low temperature: ≤ 0.2dB (-40°C for 50 hours)
Temperature cycling: ≤ 0.2dB (-40°C to 85°C, 5 cycles)
Humidity: ≤ 0.2dB (-25°C ~ 65°C, 93%)

Applications

Signal transmission and data transmission
Telecommunications networks, local area networks (LAN), metropolitan area networks
Optical fiber communication systems
Fiber optic test equipment and instrumentation
Fiber optic CATV (cable television), fiber optic sensors
Fiber-optic broadband home, FTTH fiber to the home
Fiber optic patch panels, rack and wall mount fiber optic wiring units

Ordering Configuration

Parameter	Options
Connector type	SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc.
Polish	UPC, APC, PC
Cable type	Simplex, Duplex straight, Duplex Reverse
Fiber	SM (G652), 62.5/125μm, 50/125μm, OM2, OM3, SM (G655)
Cable Jacket	Riser, Plenum, LSZH
Cable Diameter	3.0mm, 2.0mm, 0.9mm, etc.
Cable Length	Custom length in meters

Available Types

Connector type: FC, SC, ST, LC, MT-RJ, MU, etc.
Ferrule endface: PC, UPC, APC, etc.
Fiber type: single mode, polarization-maintaining optical fiber, multimode 50/125, multimode 62.5/125, etc.
Cable diameter: 0.9mm, 2.0mm, 3.0mm, etc.
Number of fiber connected: single-core connector, dual-core connector and multi-core connector
