100M Length G657A 4 Core SC Fiber Optic Cable Singlemode Duplex for High-Speed Data Transmission

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

SC Pigtail Single Mode

Diameter:

2.0mm

Fiber Type:

Duplex

Connector:

SC-SC

Color:

Black

Length:

100 Meter

Supply Ability:

1000000

Highlight:

single mode fiber jumpers

ftth fiber optic cable

Product Description

4 Core Single Mode Fiber Optic Cable

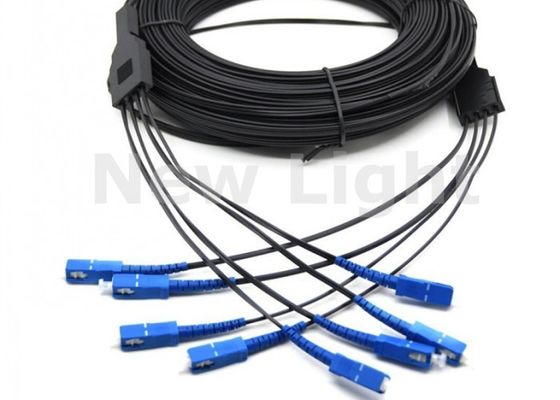

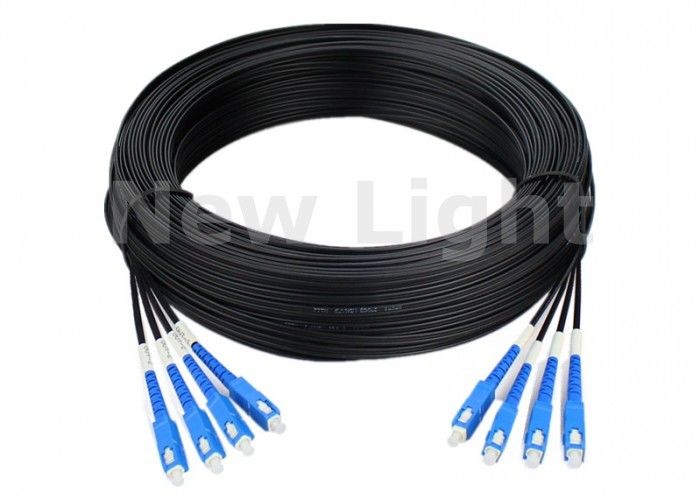

100M Outdoor SC UPC 4Cores FTTH Drop Patch Cable SC Singlemode Duplex G657A Black color

Specifications

Insertion loss: ≤ 0.3dB

Return loss: ≥55dB

Durability: ≥1000 times

Operating temperature: -40°C to +80°C

Working wavelength: 1310-1550nm

Key Features

Suitable for telecommunication networks
Available connector types: FC, SC, ST, MU, LC, MTRJ, MPO, SMA, E2000, DIN
High durability and reliability
Low insertion loss and high return loss
Single mode/multi mode, PC/UPC/APC patch cord and pigtail available
Single core, 2 cores, 4 cores, 6 cores, 8 cores, 12 cores and multi core patch cord and pigtail available

Product Description

The SC fiber optic cable is available in both single mode and multimode versions, and is fully intermateable with NTT-SC products. Both single mode and multimode versions SC fiber patch come with a zirconia ceramic ferrule with pre-polished UPC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.

Mechanical Properties

Interchangeability: ≤ 0.1dB

Vibration: ≤ 0.1dB (5 to 50Hz, 1.5mm)

Tensile strength: ≤ 0.1dB (0 to 15Kg pull)

High temperature: ≤ 0.2dB (+85°C for 50 hours)

Low temperature: ≤ 0.2dB (-40°C for 50 hours)

Temperature cycling: ≤ 0.2dB (-40°C to 85°C, 5 cycles)

Humidity: ≤ 0.2dB (-25°C ~ 65°C, 93%)

Applications

Signal transmission and data transmission
Telecommunications network, local area network (LAN), metropolitan area networks
Optical fiber communication systems
Fiber optic test equipment / instrumentation
Optical fiber CATV (cable television), optical fiber sensors
Fiber-optic broadband-home, FTTH fiber to the home
Fiber optic patch panels, rack and wall mount fiber optic wiring unit

Ordering Options

Parameter	Available Options
Connector type	FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face	PC, UPC, APC
Core Type	Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity	Simplex, Duplex, 6 cores, 12 cores, 16 cores, 24 cores, 36 cores, 48 cores...
Cable Diameter	φ3.0mm, φ2.0mm, φ0.9mm
Cable Length	1, 2, 3 meter or customized
Cable type	PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored
