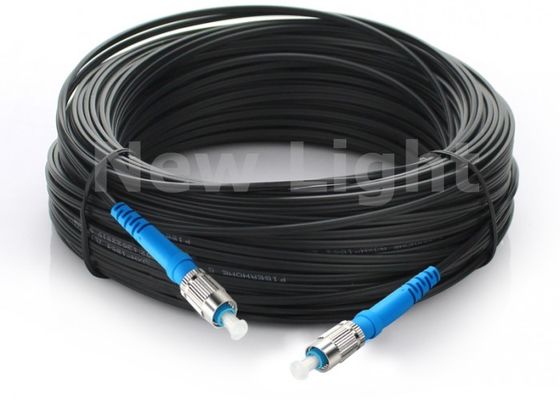

200M Outdoor Fiber Optic Jumper Cable with G657A Fiber and FC-FC Connector for FTTH Applications

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

FC-FC Fiber Patch Cord

Diameter:

2.0mm

Fiber Type:

Duplex

Connector:

FC-FC

Color:

Black

Length:

200 Meter

Supply Ability:

1000000

Highlight:

fiber optic pigtail

ftth fiber optic cable

Product Description

200M Outdoor Fiber Optic Jumper Cables

Singlemode Simplex G657A FC FC Fiber Optic Cable

Product Overview

200M Outdoor FC/UPC-FC/UPC FTTH Drop Patch Cable Singlemode Simplex G657A in black color, designed for reliable outdoor telecommunications applications.

Specifications

Insertion loss: ≤ 0.3dB

Return loss: ≥ 55dB

Durability: ≥ 1000 times

Operating temperature: -40°C to +80°C

Working wavelength: 1310-1550nm

Key Features

Suitable for telecommunications networks
Available connector types: FC, SC, ST, MU, LC, MTRJ, MPO, SMA, E2000, DIN
High durability and reliability
Low insertion loss and high return loss
Single mode/multi mode, PC/UPC/APC patch cord and pigtail available
Single core, 2 cores, 4 cores, 6 cores, 8 cores, 12 cores and multi core configurations

Product Description

The SC fiber optic cable is available in both single mode and multimode versions, and is fully intermateable with NTT-SC products. Both versions feature zirconia ceramic ferrules with pre-polished UPC profile and convex spherical ends for faster polishing, low back reflection, and minimal optical loss while ensuring maximum repeatability.

Ordering Options

Customization Parameters

Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6 cores, 12 cores, 16 cores, 24 cores, 36 cores, 48 cores
Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Mechanical Properties

Interchangeability: ≤ 0.1dB

Vibration: ≤ 0.1dB (5 to 50Hz, 1.5mm)

Tensile strength: ≤ 0.1dB (0 to 15Kg pull)

High temperature: ≤ 0.2dB (+85°C for 50 hours)

Low temperature: ≤ 0.2dB (-40°C for 50 hours)

Temperature cycling: ≤ 0.2dB (-40°C to 85°C, 5 cycles)

Humidity: ≤ 0.2dB (-25°C ~ 65°C, 93%)

Applications

Signal transmission and data transmission
Telecommunications networks, local area networks (LAN), metropolitan area networks
Optical fiber communication systems
Fiber optic test equipment and instrumentation
Optical fiber CATV (cable television), optical fiber sensors
Fiber-optic broadband-home, FTTH fiber to the home
Fiber optic patch panels, rack and wall mount fiber optic wiring units

Ordering Guide

Parameter	Options
Connector type	SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc.
Polish	UPC, APC, PC
Cable type	Simplex, Duplex straight, Duplex Reverse
Fiber	SM(G652), 62.5/125um, 50/125um, OM2, OM3, SM(G655)
Cable Jacket	Riser, Plenum, LSZH
Cable Diameter	3.0mm, 2.0mm, 0.9mm, etc.
Cable Length	Length in meter

Configuration Types

Connector type: FC, SC, ST, LC, MT-RJ, MU, etc.
Ferrule endface: PC, UPC, APC, etc.
Fiber type: single mode, polarization-maintaining optical fiber, multimode 50/125, multimode 62.5/125, etc.
Cable diameter: 0.9mm, 2.0mm, 3.0mm, etc.
Number of fiber connected: single-core connector, dual-core connector and multi-core connector
