Outdoor FC UPC 3M Fiber Optic Jumper Cable with Low Insertion Loss for FTTH Drop Applications

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

FC FC Fiber Optic Cable

Diameter:

2.0mm

Fiber Type:

Simplex

Connector:

FC-FC

Color:

Black

Length:

3 Meter

Supply Ability:

1000000

Highlight:

fiber optic pigtail

single mode fiber jumpers

Product Description

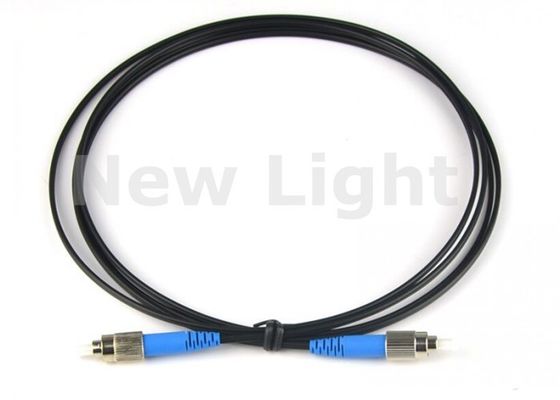

Outdoor FC UPC 3M Fiber Optic Jumper Cables

High-performance FC UPC 3M outdoor FTTH drop patch cables designed for telecommunication networks, available in singlemode simplex black configuration.

Technical Specifications

Insertion loss: ≤ 0.3dB

Return loss: ≥ 55dB

Durability: ≥ 1000 cycles

Operating temperature: -40°C to +80°C

Working wavelength: 1310-1550nm

Key Features

Ideal for telecommunication networks
Available connector types: FC, SC, ST, MU, LC, MTRJ, MPO, SMA, E2000, DIN
High durability and reliability
Low insertion loss and high return loss
Single mode/multi mode options with PC/UPC/APC polish
Available in single core, 2 cores, 4 cores, 6 cores, 8 cores, 12 cores and multi-core configurations

Product Description

SC fiber optic cables are available in both single mode and multimode versions, fully intermateable with NTT-SC products. Both versions feature zirconia ceramic ferrules with pre-polished UPC profile and convex spherical ends for faster polishing, low back reflection, minimal optical loss, and maximum repeatability.

Customization Options

Connector: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

Ferrule: PC, UPC, APC

Core Type: Single-mode (9/125μm), Multimode (50/125μm or 62.5/125μm)

Cable Quantity: Simplex, Duplex, 6-48 cores

Cable Diameter: φ0.9mm, φ2.0mm, φ3.0mm

Cable Length: 1-3 meters or custom

Cable Type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Mechanical Performance

Interchangeability: ≤ 0.1dB

Vibration: ≤ 0.1dB (5-50Hz, 1.5mm)

Tensile strength: ≤ 0.1dB (0-15Kg pull)

High temperature: ≤ 0.2dB (+85°C for 50 hours)

Low temperature: ≤ 0.2dB (-40°C for 50 hours)

Temperature cycling: ≤ 0.2dB (-40°C to 85°C, 5 cycles)

Humidity: ≤ 0.2dB (-25°C ~ 65°C, 93%)

Applications

Signal transmission and data transmission
Telecommunications networks, LAN, metropolitan area networks
Optical fiber communication systems
Fiber optic test equipment and instrumentation
Fiber optic CATV (cable television)
Fiber optic sensors
FTTH fiber to the home broadband
Fiber optic patch panels and wiring units

Ordering Specifications

Parameter	Options
Connector type	SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc.
Polish	UPC, APC, PC
Cable type	Simplex, Duplex straight, Duplex Reverse
Fiber	SM(G652), 62.5/125μm, 50/125μm, OM2, OM3, SM(G655)
Cable Jacket	Riser, Plenum, LSZH
Cable Diameter	3.0mm, 2.0mm, 0.9mm, etc.
Cable Length	Custom length in meters
