Optical Fiber Patch Cord

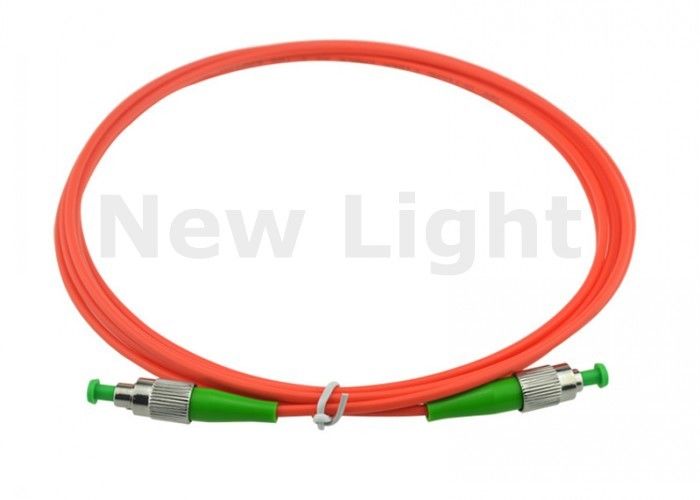

Red Color FC FC Multimode Fiber Optic Patch Cord with 3 Meters Length and 2.0mm Diameter

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Red Color FC FC Multimode Fiber Optic Patch Cord with 3 Meters Length and 2.0mm Diameter

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

Fc Fc Fiber Optic Cable

Diameter:

2.0mm

Model:

Multimode

Connector:

SC-FC

Color:

Red

Length:

3 Meters

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

sc sc fiber patch cord

Product Description

Simplex Multimode Fiber Optic Cable

Red Color FC-FC Patch Cord, 3m Length for Multimedia Applications

Product Overview

FC/APC-FC/APC 3M Multimode Simplex fiber optic patch cord cable available in 2.0mm or 3.0mm diameter with red color jacket.

Key Features

Compliance with IEC and YD/T1272 standards
High return loss and low insertion loss performance
Excellent repeatability and interchangeability
Available in PC, UPC, and APC polishing types
Single mode and multi-mode versions available
Multiple connector types: FC, SC, ST, MU, LC, MTRJ, MPO, E2000
Superior durability and temperature stability
Meets Telcordia GR-326-CORE, TIA/EIA and IEC standards

Applications

Telecommunication networks
Video transmission systems
Gigabit Ethernet
Active device termination
Multimedia applications
Premise installations
FTTH and TTX applications
Local area networks
CATV systems

Technical Specifications

Parameter	Specification
Model Number	Fiber Optic Patch Cord
Style	LC, SC, ST, FC, MU, MPO, SC/APC, FC/APC, LC/APC, MU/APC Simplex/Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Singlemode) OS1, 50/125, 62.5/125 (Multimode) OM2 & OM1, 50/125, 10G (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm, Φ1.6mm PVC or LSZH, Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC, SPC, APC (8° & 6°)
Insertion Loss	≤ 0.1dB (Singlemode Master), ≤ 0.25dB (Singlemode Standard), ≤ 0.25dB (Multimode)
Return Loss (Singlemode)	UPC ≥ 50dB, SPC ≥ 55dB, APC ≥ 60dB (typ. 65dB)
Repeatability	±0.1dB
Operating Temperature	-40°C to 85°C

Product Parameters

Connector	FC to FC
Fiber Mode	9/125µm
Polish	APC to APC
Fiber Type	Simplex
Insertion Loss	≤0.3dB
Return Loss	≥50dB
Operating Temperature	-40°C to 75°C
Storage Temperature	-45°C to 85°C
Jacket OD	2.0mm
Jacket Color	Red
Wavelength	1310/1550nm
Jacket Material	PVC
Interchangeability	≤0.2dB
Vibration	≤0.2dB
Polarity	A(Tx) to B(Rx)
Fiber Grade	G652D

Product Description

Fiber optic patch cords are essential components of optical networks. They feature various connector types installed on fiber optic cable ends. Our comprehensive patch cord series offers multiple lengths and connector options to meet diverse application requirements.
