3M LC-LC Singlemode Fiber Optic Patch Cord with 3.0mm Diameter and Low Insertion Loss

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

LC-LC Fiber Patch Cord

Diameter:

3.0mm

Model:

Singlemode

Connector:

LC-LC

Color:

Blue

Length:

3 Meters

Supply Ability:

1000000

Highlight:

lc-lc singlemode patch cord

single mode lc fiber patch cord

3m lc upc patch cord

Product Description

3M LC-LC Singlemode Fiber Optic Patch Cord (LC/UPC to LC/UPC, 9/125μm, 3.0mm, Simplex)

3-meter LC/UPC to LC/UPC singlemode simplex patch cord on 9/125μm G.652D fiber with a 3.0mm PVC jacket in blue. Factory-terminated 1.25mm ceramic-ferrule LC connectors, UPC (0°) polish, 100% end-face inspected and insertion-loss tested piece by piece.

Product Overview

This 3M LC-LC singlemode patch cord uses a single 9/125μm G.652D fiber in a slim 3.0mm jacket, so it occupies roughly half the routing space of an SC or duplex zipcord assembly — the practical choice for high-density ODF, patch-panel and rack-to-rack routing and for 1G/10G SFP, SFP+ and GBIC transceiver ports at 1310/1550nm. Each cord is assembled, polished and tested in our Shenzhen plant and is delivered with a per-piece insertion-loss / return-loss test record on request.

Product Photo

Actual product — 3M LC-LC singlemode simplex patch cord, LC/UPC connectors, 3.0mm blue PVC jacket

LC-LC Specific Features

1.25mm ceramic ferrule LC/UPC on both ends — half the connector footprint of SC, doubling port density on line cards, ODF and patch panels
Singlemode 9/125μm G.652D (OS2) — 1310/1550nm, covering 1G/10G links up to 10km and 40G/100G over parallel duplex pairs
Simplex construction — one fiber, one 3.0mm jacket: correct choice for single-direction (Tx only) runs and for building duplex pairs from two cords
Insertion loss ≤0.3dB (typical 0.15dB) — every cord individually measured, not batch-sampled
UPC 0° dome polish, return loss ≥50dB — stable on WDM and CATV return-path channels
≥1000 mating cycles — zirconia ceramic ferrule and precision-machined LC housing keep IL drift within ±0.1dB
Small-bend-tolerant 3.0mm PVC jacket, blue — color-coded for singlemode UPC and easy to trace in dense cable managers

Technical Specifications

Parameter	Specification
Product Type	LC/UPC – LC/UPC Singlemode Simplex Fiber Optic Patch Cord
Connector A / Connector B	LC/UPC / LC/UPC (1.25mm zirconia ceramic ferrule, blue housing)
Fiber Type	9/125μm G.652D Singlemode (OS2)
Fiber Count / Construction	1 fiber – Simplex
Wavelength	1310 / 1550nm
Jacket OD / Material / Color	3.0mm / PVC / Blue
Length	3m standard (0.5m – 50m available to order)
Insertion Loss	≤0.3dB (typical 0.15dB)
Return Loss	≥50dB (UPC)
Repeatability / Interchangeability	≤0.1dB / ≤0.2dB
Durability	≥1000 mating cycles
Operating Temperature	-40°C to +85°C
Storage Temperature	-45°C to +85°C
Polarity	Straight (A-A), single fiber
Compliance	ISO 9001 / CE / RoHS; IEC 61300-3-4 / 3-6 test methods

End-Face Inspection & Test Data

Every LC/UPC ferrule on this cord passes a microscope end-face inspection before packing — the dome must be free of scratches, pits and contamination, and the connector is rejected and re-polished if any defect is found. Insertion loss and return loss are then measured on the finished assembly, one cord at a time, and the measured values are recorded against the cord's test label.

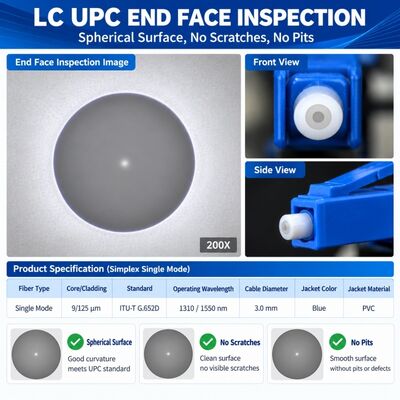

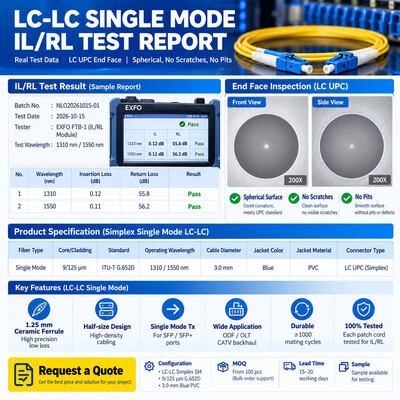

Left: LC/UPC end-face inspection record | Right: IL / RL test report for this 3M LC-LC singlemode patch cord

The measured IL / RL values in the report above are the actual figures for the tested batch and stay inside the specification of this page (IL ≤0.3dB, RL ≥50dB). A copy of the per-batch test report is enclosed with the goods; a per-piece test record can be supplied on request.

Where This Cord Is Used

1G/10G SFP, SFP+ and GBIC transceiver ports in switches and routers
High-density ODF, patch panels and rack-to-rack / cross-connect patching in central offices and data centers
FTTH / FTTB / FTTX access and telecom equipment rooms (OLT to ODF)
CATV head-end and return-path (1310nm forward / 1550nm reverse) links
LAN backbone, campus cabling and laboratory test instruments

Packing & Delivery

1 pc per PE bag, individual test label per cord; MOQ 1 pc, lead time 7 working days for standard lengths; OEM length, polish (UPC/APC), jacket (PVC/LSZH) and color available.

Request a Quote

Tell us your exact configuration and we will come back with price, lead time and test data within 12 working hours.

Length (0.5m – 50m) and quantity
Polish: LC/UPC or LC/APC | Jacket: PVC or LSZH | Color
Destination port / trade term (EXW, FOB Shenzhen, CIF)
Whether you need the per-piece insertion-loss test record enclosed

Use the inquiry button on this page to send your requirement — samples available for evaluation.
