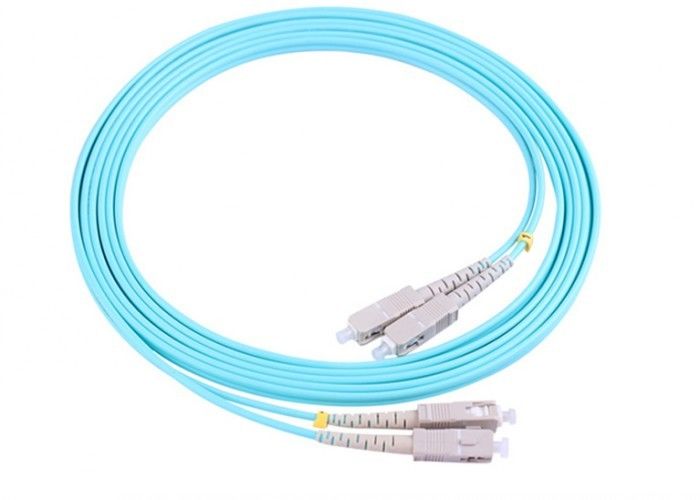

SC-SC Fiber Patch Cord 3.0mm Diameter Singlemode for FTTX Applications

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

SC - SC Fiber Patch Cord

Diameter:

3.0mm

Model:

Singlemode

Connector:

SC-SC

Color:

Blue

Length:

3 Meters

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

single mode fiber optic cable

Product Description

FTTX Applications SC SC Fiber Patch Cord, Duplex OM3 Single Mode Cable

Product Overview

SC/UPC to SC/UPC fiber optic patch cord cable designed for OM3 Duplex single mode applications in optical fiber access networks. This high-performance patch cord ensures reliable optical path connections with superior transmission characteristics.

Product Description

Fiber optic patch cords are lengths of optical cable with connectors fixed on both ends to establish active optical path connections. Available in various configurations including single mode and multi-mode versions with different connector types and polishing styles to meet diverse application requirements.

Key Features

Low Insertion Loss
High Return Loss
Excellent Repeatability
Superior Exchangeability
High Temperature Stability

Applications

Optic-fiber Communication Systems
Optic-fiber Data Communications
Optic-fiber Access Networks
Optic-fiber CATV Systems
LAN and Structured Cabling Systems
Test Equipment Integration
Optic-fiber Sensors
FTTX Applications

Technical Specifications

Model NO.	Fiber Optic Patch Cord
Style	LC, SC, ST, FC, MU, MPO, SC/APC, FC/APC, LC/APC, MU/APC Simplex/Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2 & OM1 50/125, 10G (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm, Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC, SPC, APC (8° & 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode)
Return Loss (For Singlemode)	UPC ≥ 50dB, SPC ≥ 55dB, APC ≥ 60dB (typ.65dB)
Repeatability	±0.1dB
Operating Temperature	-40°C to 85°C

Detailed Parameters

Connector	SC to SC
Fiber Mode	9/125µm
Polish	UPC to UPC
Fiber Type	Simplex
Insertion Loss	≤0.3dB
Return Loss	≥50dB
Operating Temperature	-40~75℃
Polarity	A(Tx) to B(Rx)
Jacket OD	3.0mm
Jacket Color	Blue
Wavelength	1310/1550nm
Jacket Material	PVC
Interchangeability	≤0.2dB
Vibration	≤0.2dB
Storage Temperature	-45~85℃
Fiber Grade	G652D
