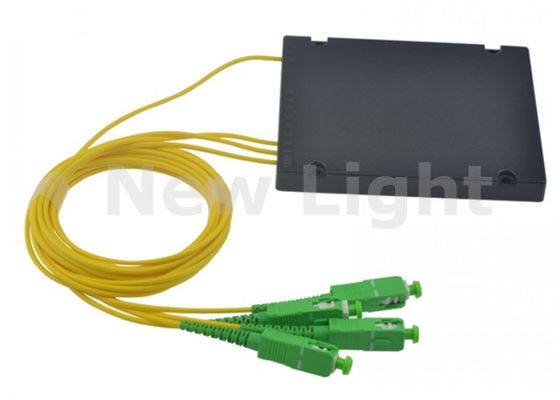

1x3 PLC Fiber Optic Splitter Single Mode with SC APC Connector for FTTH Applications

Brand Name:	New Light
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

ISO ,ROSH

Name:

Fiber Optic Cable Splitter

Connector Type:

Polish:

APC

Cable Diameter:

2.0mm

Mode:

Single Mode

OEM:

Available

Minimum Order Quantity:

Price:

1~30

Packaging Details:

export packing

Delivery Time:

15 working days

Payment Terms:

Western Union,T/T,MoneyGram

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

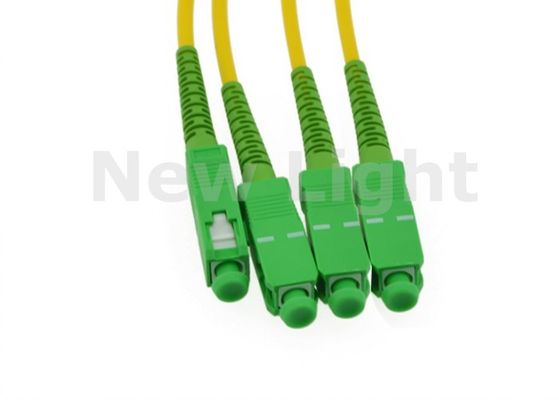

SC APC 1x3 PLC Fiber Optic Splitter

Single mode PLC fiber optic splitter with SC APC connector designed for FTTH applications, offering reliable signal distribution in optical networks.

Applications

Fiber Optic CATV Systems
Fiber to Home (FTTH) Networks
Passive Optical Networks (PON)
Fiber Communication Systems
Local Area Networks (LAN)

Technical Specifications

Parameters	1x4	1x8	1x16	1x32	1x64
Operating Wavelength (nm)	1260-1650
Insertion Loss (dB) Max(S/P)	7.4/7.2	10.7/10.5	13.7/13.5	16.9/16.5	21
Loss Uniformity (dB) Max	0.6	0.8	1.2	1.7	2.5
Return Loss (dB) Min(S/P)	50/55	50/55	50/55	50/55	50
PDL (dB) Max	0.2	0.3	0.3	0.3	0.4
Directivity (dB) Min	55	55	55	55	55
Wavelength Dependent Loss (dB)	1	1	1	1	1
Temperature Stability (-40~85℃)(dB)	0.6	0.6	0.8	1	1

Additional Specifications

Pigtail Length: 1.2m (±0.1) or customer specified
Fiber Type: SMF-28e or customer specified
Operating Temperature: -20℃ to 75℃
Storage Temperature: -40℃ to 85℃

Packaging Dimensions

1x4/1x8/1x16: 40x4x4mm | 1x32: 50x7x4mm | 1x64: 60x12x4mm
