5M Multimode FC Fiber Patch Cord with 3.0mm Diameter PVC and LSZH Simplex Fiber Cable

Brand Name:	New Light
Model Number:	FC / ST
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag with carton box
Payment Terms:	Western Union,Money Gram,Paypal,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

5M Multimode FC Fiber Patch Cord PVC And LSZH 3.0 Diameter Simplex Fiber Cable

Ferrule Polishing:

Material:

PVC/LSZH

Connector:

Diameter:

3.0 Mm

Cable Color:

Cable Type:

OM3-150 / OM3-300

Core Type:

Simplex

Delivery Time:

2-7 Days After Received Payment

Length:

Can Be Customized

OEM/ODM:

Acceptable

Supply Ability:

1000000

Highlight:

sc sc fiber patch cord

single mode fiber optic cable

Product Description

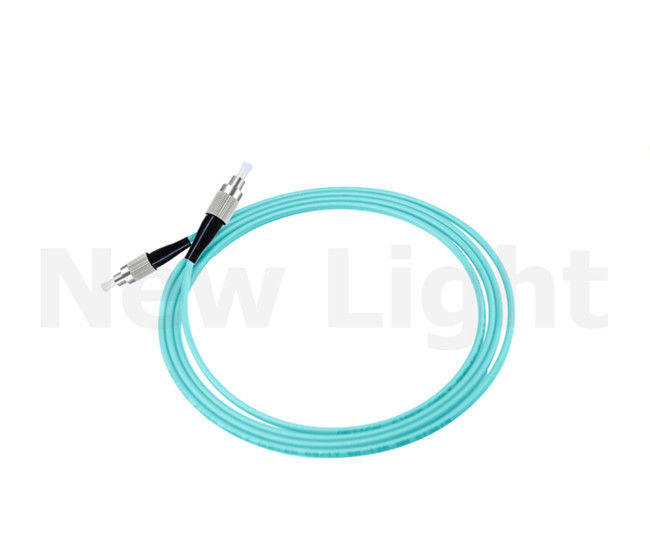

5M Multimode FC Fiber Patch Cord

PVC and LSZH 3.0mm Diameter Simplex Fiber Cable

Product Overview

OM3 multimode fiber optic cable with 50/125μm core available in two specifications: OM3-150 for 150 meters transmission distance and OM3-300 for 300 meters transmission distance. Choose the appropriate cable type based on your data transmission requirements and distance needs.

Applications

Local Area Networks (FTTH and FTTD)
CATV Systems
Telecommunication Networks
Data Processing Networks

Key Characteristics

Low insertion loss, high return loss
Excellent compatibility
High precision mechanical dimensions
High reliability and stability
PC, APC, UPC options available
Customizable cable length

Technical Specifications

Insertion loss: ≤0.2dB
Return loss: ≥35dB (PC)
Repeatability: 0.1dB (1000 cycles)
Temperature range: -40°C to 80°C

Ordering Information

Connector Types: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125μm), Multimode (MM: 50/125μm or 62.5/125μm)
Cable Quantity: "2C" indicates two cores (Duplex/DX)
Cable Diameter: 3.0mm, 2.0mm, 0.9mm
Cable Length: 1, 2, 3 meters or custom lengths
Cable Type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

Product Data Sheet

Fiber Type	Options
Single Mode	9/125-G652D, 9/125-G655, 9/125-G657A1, G657A2, G657B2, G657B3
Multimode	50/125-OM2, 62.5/125-OM1, 50/125-OM3, 50/125-OM4, 50/125-OM5
Fiber Brand	YOFC, Corning, OFS
Connector Type	SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN
Cord Type	Simplex, Duplex, 4 cores, 6 cores, 12 cores, 24 cores
Cable Diameter	0.9mm, 2.0mm, 3.0mm
Cable Jacket	PVC, LSZH, OFNR, OFNP
Length (M)	0.3m, 1m, 2m, 5m, 10m, 25m, 50m, 100m (customizable)

Connector Types

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What is the price?

Pricing depends on quantity. We offer competitive pricing for bulk orders.

Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FedEx). EXW or CFR pricing is preferred for most orders.

How is your quality?

We produce according to IEC and European standards in near dust-free workshops with imported equipment. All products are 100% tested before delivery.

What is your lead time?

2-3 working days for 5,000 pieces. Regular products are available from stock.

What is your warranty?

2-year warranty for patch cords covering non-artificial damage.

What is your packing?

International export packaging with optional logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer.

How can I order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue proforma invoice upon acceptance.

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.

Packaging Reference
