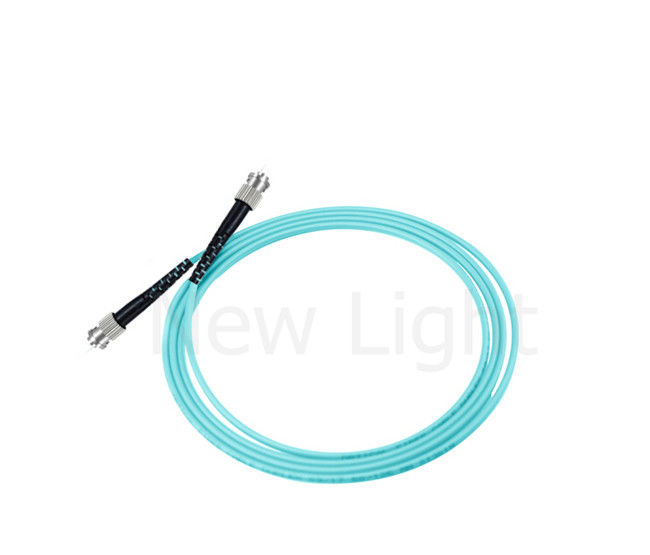

ST-ST Multimode Fiber Optic Patch Cable OM3 2.0 or 3.0 mm Aqua Color Simplex

Brand Name:	New Light
Model Number:	ST / FC / SC / LC / MPO
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bad + Carton box
Payment Terms:	T/T,Western Union,Money Gram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

ST-ST Multimode Fiber Optic Patch Cables Simplex 2.0 Or 3.0 Mm Aqua Color Cable

Material:

PVC / LSZH

Fiber Type:

OM3 (150/300 )

Connector:

Ferrule Polishing:

PC Multi Mode

Insert Loss:

<0.3dB

Return Loss:

>50dB

Delivery Time:

2-7 Working Days After Receive Payment

Model:

Multi Mode

Cable Diameter:

2.0 /3.0 Mm

Cable Length:

As Your Requirements

Packing:

OPP Bag + Carton Box

Supply Ability:

1000000

Highlight:

sc sc fiber patch cord

single mode fiber optic cable

Product Description

ST-ST Multimode Fiber Optic Patch Cables

Simplex fiber optic patch cables available in 2.0mm or 3.0mm diameter with aqua color cable jacket.

Product Overview

Optical Fiber Patch Cords are available in single-mode or multi-mode configurations, with simplex and duplex options. Simplex patch cords feature two connectors total (one on each end), while duplex cords have four connectors total (two on each end).

Available in both Single mode and multimode versions, these cables feature zirconia ceramic ferrules with pre-polished UPC, APC, or PC terminations.

Technical Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A) \| MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm \| 850±30/1300±30nm
Insertion Loss(dB)	≤ 0.25dB(PC/UPC/APC) \| ≤ 0.3dB(PC/UPC)
Return Loss(dB)	≥50dB(PC/UPC) ≥60dB(APC) \| ≥40dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C)	-10~ +70
Storage Temperature (°C)	-40 ~ +85
Package	1unit/bag

*All values specified are with connectors.

Key Features

Superior qualified standard PC, APC, UPC, SPC polishing
100% optical testing: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC)
100% optical testing: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC)
φ0.9mm, φ2.0mm, φ3.0mm fiber optic cable options
Single mode (9125) or multi mode (50125 or 62.5125) fiber available
FC, SC, LC, MU, ST, MT-RJ connector compatibility
Excellent exchange ability and durability
Available in fiber bunch, ribbon fan-out, pigtail configurations
Meets ISO9001, ROHS and Bell core GR 326-core standards
Customized specifications available

Applications

CATV and metro test equipment
Telecommunication networks
Local area networks (LAN)
Wide area networks (WAN)
Premise installations
Data processing networks
Video and military active device termination

Connector Types

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering single units as the cost and price will be higher. Larger quantities receive more competitive pricing.

What's the price?

Pricing depends on quantity. We provide our best pricing based on your order volume, with larger quantities receiving more competitive rates.

Can you quote FOB price?

Yes, but due to the small size and weight of our products, most shipments are delivered by air (DHL, TNT, UPS, FEDEX). We recommend providing detailed specifications and quantity for accurate freight-included pricing. EXW or CFR pricing is often more suitable.

How is your quality?

Our production follows IEC and European standards in near dust-free workshops. We use imported production and quality control equipment, with 100% testing before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are typically in stock, and we can accommodate urgent orders.

What's your warranty?

Patch cords come with a 2-year warranty from delivery date for non-artificial damage. For artificial damage, we provide free repairs with customer responsible for freight costs.

What's your packing?

We use international export packaging and can print your logo on packaging upon request.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

For adaptors, attenuators, patch cords, and pigtails, we can provide free samples with freight prepaid by customer. For higher-value products, sample charges apply but may be refunded with subsequent orders.

How can I order?

Contact us with product details, specifications, and quantity. We'll provide pricing and lead time. Upon acceptance, we'll issue a proforma invoice and begin production after payment confirmation.

What are your payment terms?

We accept T/T, Western Union, Paypal, and MoneyGram. For large orders, 50% deposit with balance due before delivery.

Packaging Reference
