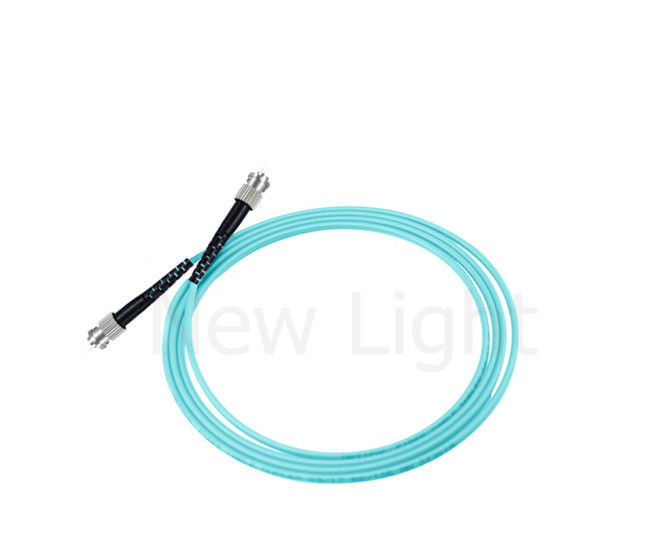

ST-ST Multimode Fiber Optic Patch Cables Simplex 2.0 or 3.0 Mm Aqua Color cable

ST-ST Multimode Fiber Optic Patch Cables Simplex 2.0 or 3.0 Mm Aqua Color cable

    • ST-ST Multimode Fiber Optic Patch Cables Simplex  2.0 or 3.0 Mm Aqua Color cable
    • ST-ST Multimode Fiber Optic Patch Cables Simplex  2.0 or 3.0 Mm Aqua Color cable
    • ST-ST Multimode Fiber Optic Patch Cables Simplex  2.0 or 3.0 Mm Aqua Color cable
    • ST-ST Multimode Fiber Optic Patch Cables Simplex  2.0 or 3.0 Mm Aqua Color cable
    • ST-ST Multimode Fiber Optic Patch Cables Simplex  2.0 or 3.0 Mm Aqua Color cable
  • ST-ST Multimode Fiber Optic Patch Cables Simplex  2.0 or 3.0 Mm Aqua Color cable

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: New Light
    Certification: CE, ISO , RoHS
    Model Number: ST / FC / SC / LC / MPO

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: can be negotiated
    Packaging Details: OPP bad + Carton box
    Delivery Time: 2-7 working days
    Payment Terms: T/T, Western Union, Money Gram, Paypal
    Supply Ability: 12,000 pcs per day
    Contact Now
    Detailed Product Description
    Product Name: ST-ST Multimode Fiber Optic Patch Cables Simplex 2.0 Or 3.0 Mm Aqua Color Cable Material: PVC / LSZH
    Fiber Type: OM3 (150/300 ) Connector: ST
    Ferrule Polishing: PC Multi Mode Insert Loss: <0.3dB
    Return Loss: >50dB Delivery Time: 2-7 Working Days After Receive Payment
    Model: Multi Mode Cable Diameter: 2.0 /3.0 Mm
    Cable Length: As Your Requirements Packing: OPP Bag + Carton Box



    Optic Fiber Patch Cord Product Name:

    ST-ST Multimode Fiber Optic Patch Cables Simplex 2.0 or 3.0 Mm Aqua Color cable

    Optic Fiber Patch Cord Description :


    Optical Fiber Patch Cord can be  single-mode or multi-mode fiber cord ,also can be simplex and duplex ,ther are two connectors total in simplex patch cord ,each side will have one connector .Duplex will have four connectors total , two connectors each side .



    It is available in both Single mode and multimode versions,come with a zirconia ceramic ferrule with pre-polished UPC , APC or PC .



    Optic Fiber Patch Cord Specifications

    Optical Fiber Patch Cord (ST-ST Duplex)
    1) Approved by ROHS
    2) Low IL & high RL
    3) Good interchangeability and repeatability

    Optical Fiber Patch Cord (ST-ST Duplex)

    Optic Fiber Patch Cord Parameters:

    Parameters Standard Fiber Cable Assemblies
    Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3/OM4/OM5)
    Jacket Materials LSZH/OFNR/PVC
    Connector Type SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
    Ferrule Materials Ceramic
    Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
    Insertion Losss(dB) ≤ 0.25dB(PC/UPC/APC) ≤ 0.3dB(PC/UPC)
    Return Loss(dB) ≥50dB(PC/UPC)
    ≥60dB(APC)
    ≥40dB(PC/UPC)
    Exchangeability ≤ 0.2dB
    Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
    Operating Temperature (° C) -10~ + 70
    Storage Temperature (° C) -40 ~ +85
    Package 1unit/bag
    *All values specified are with connectors.



    Optic Fiber Patch Cord Features:



    1) Superior qualified standard PC, APC, UPC, SPC polishing;
    2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);

    3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);

    4) φ0.9mm, φ2.0mm, φ3.0mm fiber optic cable optional;

    5) Single mode (9125) or multi mode (50125 or 62.5125) fiber available;

    6) FC, SC, LC, MU, ST, MT-RJ, etc connector

    7) Good exchange ability and good durability;

    8) Available in fiber bunch, ribbon fan-out, pigtail available;

    9) Meets ISO9001, ROHS and Bell core GR 326-core standards;

    10) Customized specifications welcomed.



    Optic Fiber Patch Cord Applications:



    1) CATV, metro Test equipment

    2) Telecommunication networks;

    3) Local area networks (LAN);

    4) Wide area networks (WAN);

    5) Premise installations;

    6) Data processing networks;

    7) Video and military active device termination.





    Optic Fiber Patch Cord Connector type



    ST-ST Multimode Fiber Optic Patch Cables Simplex  2.0 or 3.0 Mm Aqua Color cable

    FQA :



    1. Q : Are you manufacturer ?

    A: yes, we are manufacturer in Shenzhen,China



    2. Q : What's your MOQ ?

    A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



    3. Q : What's the price ?

    A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



    4. Q: Can you quote FOB price ?

    A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



    We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



    EXW price or CFR price will be better . You can contact us for more solution if you need .



    5. Q: How is your quality ?

    A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



    All the products are 100% test before delivery .



    6. Q : Whats your lead time ?

    A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

    For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



    7. Q : Whats your warranty ?

    A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



    8. Q : Whats your packing ?

    A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



    9. Q: Can you do OEM/ODM ?

    A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



    10. Q: Can I have a sample ?

    A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

    For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



    11. Q: How can I order ?

    A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

    2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

    3. When you accept the quotation , we will make Profoma Invoice with our bank account .

    4. We will arrange the production for you after we received payment .

    5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

    6. We will try our best to meet your requirements for long-term cooperation .



    12. Q: What your payment term ?

    A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .



    Packing for reference :

    ST-ST Multimode Fiber Optic Patch Cables Simplex  2.0 or 3.0 Mm Aqua Color cable
