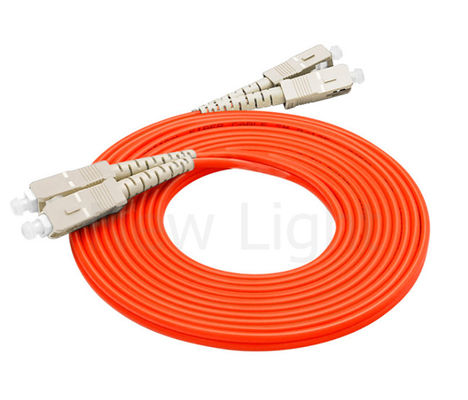

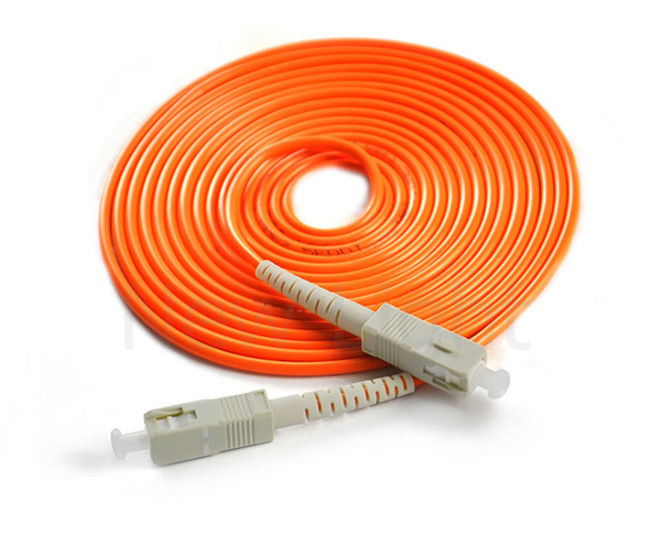

SC/PC Fiber Optic Patch Cord with 50/125um Multimode Orange Cable and PVC Jacket

Brand Name:	New Light
Model Number:	SC/PC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

SC / PC - SC / PC Fiber Optic Patch Cord Simplex Single Mode Orange Cable 50/125 PVC Material

Material:

PVC Jacket

Fiber Type:

50/125um

Connector Type:

SC /PC -SC /PC

Mode:

Multi Mode

Cable Core Type:

Simplex / Duplex

Cable Color:

Orange

Cable Diameter:

2.0mm / 3.0mm

Cable Length:

As Your Requirement

Insertion Loss:

≤ 0.3dB

Return Loss:

≥40dB

Supply Ability:

1000000

Highlight:

sc sc fiber patch cord

single mode fiber optic cable

Product Description

SC/PC Fiber Optic Patch Cord - Simplex Single Mode

This SC/PC to SC/PC fiber optic patch cord features simplex single mode configuration with orange 50/125 PVC cable material. Customizable lengths, connectors, cable diameters, and colors available.

Customization Options

We offer free company logo printing on cables with a minimum order quantity of 1000 meters for any single specification. Please provide logo details before production begins.

Product Features

Simplex, duplex, or multi-fiber assemblies
Riser or Plenum rated, LSZH and RoHS compliant cables
Low insertion loss, IEC, TIA/EIA, Telcordia compliant
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths: 9/125 single mode, 50/125 multimode, 62.5/125 multimode
0.9 / 1.8 / 2.0 / 3.0 mm outer diameter options
PC, UPC, and APC polish types available
Competitive pricing with fast delivery
100% geometry and IEC cleaning testing
OEM services available

Technical Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A) \| MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm \| 850±30/1300±30nm
Insertion Loss(dB)	≤ 0.25dB(PC/UPC/APC) \| ≤ 0.3dB(PC/UPC)
Return Loss(dB)	≥50dB(PC/UPC) ≥60dB(APC) \| ≥40dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C)	-10 to +70
Storage Temperature (°C)	-40 to +85
Package	1 unit/bag

*All values specified are with connectors

Ordering Information

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: single mode (UPC and APC) / multi mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: customized to your requirements

Connector Types

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-piece orders incur higher costs.

What's the price?

Pricing depends on quantity. We provide our best pricing upon receiving your quantity requirements. Larger quantities receive more competitive pricing.

Can you quote FOB price?

Yes, but due to small size and weight, most shipments go via air (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is typically better. Contact us for freight solutions based on your specifications and quantity.

How is your quality?

We produce according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are in stock, and we accommodate urgent orders.

What's your warranty?

Patch cords carry a 2-year warranty from delivery date for non-artificial damage. For artificial damage, we provide free repairs with customer covering freight costs.

What's your packing?

We use international export packaging and can print your logo on packaging materials.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with customer covering freight. For high-value products, sample charges apply but are refundable with order placement.

How can I order?

1. Contact us with product name, specifications, quantity, and delivery address
2. We provide pricing and lead time
3. Upon acceptance, we issue Proforma Invoice
4. Production begins after payment receipt
5. We confirm delivery information and provide tracking
6. We prioritize long-term cooperation relationships

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.

Packaging Reference
