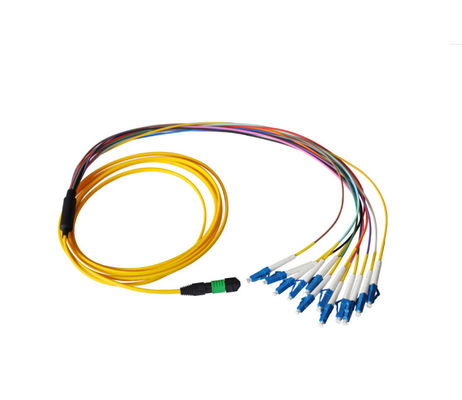

8 Core Single Mode MPO Fiber Cable with Customizable Length for High-Density Data Centers

Brand Name:	New Light
Model Number:	MPO / MTP - LC
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Product Name:

8 Core MPO Fiber Cable Single Mode PVC / LSZH MPO- LC Fan Out Optical Fiber Patch Cord

Connector Type:

MPO / MTP -LC

Material:

PVC / LSZH

Mode Type:

Single / Multi Mode

Core Type:

8 / 12 / 24 Core

Cable Color:

Yellow , Purple , Aqua( Can Be Customized )

Length:

Can Be Customized According To Your Requirements

Fiber Type:

G652D / G657A1 / G657A2

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo fanout cable

Product Description

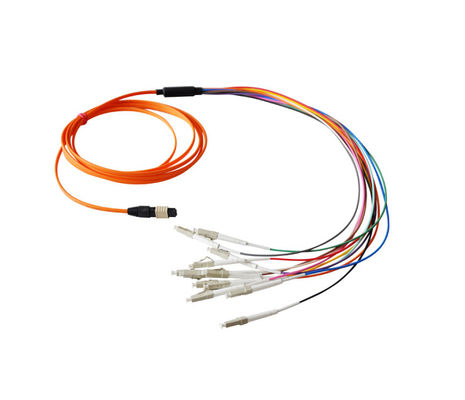

8 Core MPO Fiber Cable Single Mode PVC/LSZH MPO-LC Fan Out Optical Fiber Patch Cord

MPO/MTP trunk cables are designed for interconnecting cassettes, panels, or ruggedized MPO fan-outs across HAD and EDA zones. These cables facilitate rapid deployment of high-density backbone cabling in data centers and other fiber-intensive environments, streamlining network installation and reconfiguration processes.

Product Features

Compatible with 12-fiber and 24-fiber MPO/MTP connector standards
Available in OS1/2, OM2, OM3, and OM4 fiber types
Supports FC, LC, SC, ST, MU, and MTP connector interfaces
Interface polishing options: PC, UPC, and APC
Available in 12/24/36/48/72/96/144-fiber configurations
100% factory tested for quality assurance
Discrete connectors feature heat-cured construction with ceramic ferrules and sleeves
Fan-out fibers from MPO/MTP connectors into individual simplex or duplex configurations
Customizable for length, staggering, connector type, breakout-style, fiber count, and labeling

Technical Specifications

Parameter	Single Mode (G.652/G.657A)	Multimode (OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Loss (dB)	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss (dB)	≥45dB (PC/UPC) ≥55dB (APC)	≥35dB (PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature	-10°C to +70°C
Storage Temperature	-40°C to +85°C
Package	1 unit/bag

*All values specified are with connectors

MPO/MTP Polarity Methods

Three polarity methods (Type A, Type B, and Type C) ensure proper bi-directional signal allocation in MPO/MTP pre-terminated systems.

Type A Straight-Through MPO Trunk Cable

Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.

Type B Cross MPO Trunk Cable

Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.

Type C Cross Pair MPO Trunk Cable

Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.

Operating Temperature Range

-40°C to +80°C

Applications

Testing equipment
FTTX+LAN networks
Optical fiber CATV systems
Optical communication systems
Telecommunication infrastructure

Contact via WhatsApp: +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your minimum order quantity (MOQ)?

MOQ can be 1 piece, though we recommend larger quantities for better pricing as single-unit orders incur higher costs.

What's the price?

Pricing varies by quantity. We provide competitive quotes based on your specific requirements and order volume.

Can you quote FOB price?

While we can provide FOB quotes, most shipments are typically sent via air courier (DHL, TNT, UPS, FEDEX). We recommend EXW or CFR pricing for optimal freight solutions.

How is your quality control?

We manufacture according to IEC and European standards in near dust-free environments using imported production and quality control equipment. All products undergo 100% testing before delivery.

What's your lead time?

With three specialized factories in China, we can process 5,000 patch cords within 2-3 working days. Regular products are typically in stock, and we accommodate urgent orders.

What's your warranty policy?

We offer a 2-year warranty for patch cords covering non-artificial damage. For artificial damage, we provide free repairs with freight costs covered by the customer.

What packaging do you use?

We utilize international export-standard packaging and offer custom logo printing services.

Do you offer OEM/ODM services?

Yes, we provide comprehensive OEM/ODM services and can sign confidentiality agreements to protect your designs.

Can I request samples?

Free samples are available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by the customer. For higher-value products, sample charges apply but are refundable with subsequent orders.

How do I place an order?

Submit your requirements including product specifications and quantity
We provide a customized quote with lead time
Upon acceptance, we issue a Proforma Invoice
Production begins after payment confirmation
We confirm shipping details and provide tracking information

What payment methods do you accept?

We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, we offer 50% deposit with balance due before shipment.
