Optical Fiber Patch Cord

FC-SC Single Mode Fiber Optic Patch Cord with 3.0mm Diameter and Low Insertion Loss

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

FC-SC Single Mode Fiber Optic Patch Cord with 3.0mm Diameter and Low Insertion Loss

Brand Name:	New Light
Model Number:	FC - SC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

FC-SC Fiber Optic Patch Cord Single Mode Simplex Pvc 3.0mm Diameter Fiber Cable

Connector Type:

FC / SC

Material:

Cable Diameter:

3.0 Mm

Fiber Type:

G652D

Mode:

Single Mode 9/125

Core Type:

Simplex Cable

Cable Color:

Yellow Color

Cable Length:

As Your Requirements

Insertion Loss:

≤ 0.3dB

Return Loss:

≥50dB

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

sc sc fiber patch cord

Product Description

FC-SC Fiber Optic Patch Cord

Single Mode Simplex PVC 3.0mm Diameter Fiber Cable

Product Overview

Our optical fiber patch cords deliver exceptional performance with high return loss and low insertion loss characteristics. Each patch cord undergoes rigorous quality control to ensure compliance with European standards.

Performance Specifications

Insertion Loss: Less than 0.2dB
Return Loss: UPC >55dB, APC >60dB

Key Features

Compliant with IEC and Telcordia GR-326-CORE standards
Operating temperature range: -40°C to 80°C
Polish options: PC/UPC/APC
Storage temperature range: -40°C to 80°C
Tensile strength: >10kg
Cable diameters: 0.9mm, 2.0mm, 3.0mm available
Jacket materials: PVC or LSZH
Excellent changeability and repeatability

Applications

CATV Systems
Active Device Termination
Telecommunication Networks
Metro Networks
Local Area Networks (LANs)
Data Processing Networks
Test Equipment
Premise Installations
Wide Area Networks (WANs)

Technical Specifications

Specification	Value
Insertion Loss	Less than 0.2dB
Return Loss	MM >40dB, SM >50dB, APC >60dB
Repeatability	Less than 0.2dB
Changeability	Less than 0.1dB
Operating Temperature	-40°C to 80°C
Storage Temperature	-40°C to 80°C
Tensile Strength	>10kg
Minimum Bending Radius	35mm
Length	Customized

Ordering Information

Customize your patch cord with the following options:

Boot	Connector	Fiber Type	Cable Type	Ferrule	Length	Color
0.9mm, 2.0mm, 3.0mm	FC, LC, SC, ST, MU, D4, MTRJ, MPO/MTP, DIN, E2000, DL72	9/125μm SM, 50/125μm MM, 62.5/125μm MM, OM3, OM4, OM5	Simplex, Duplex, Multi-fiber, Ribbon	PC, APC, UPC	1m, 2m, 3m, 4m, 5m, Customized	Aqua, Black, Beige, Blue, Gray, Orange, White, Yellow

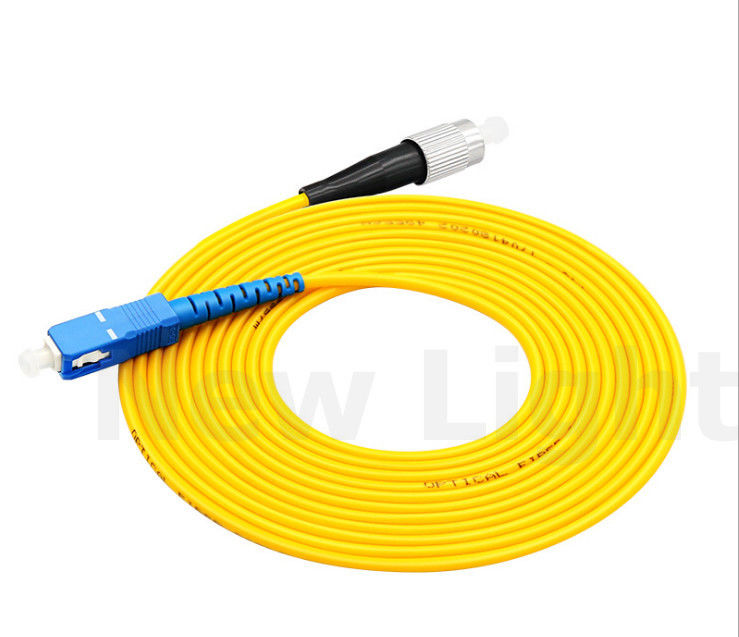

Product Image

How to Order

Specify the following details when ordering:

1. Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type: Single mode (UPC blue, APC green) / Multi mode (PC beige)
3. Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
4. Coating material: PVC / LSZH
5. Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
6. Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
7. Patch cord length: Customized to your requirements

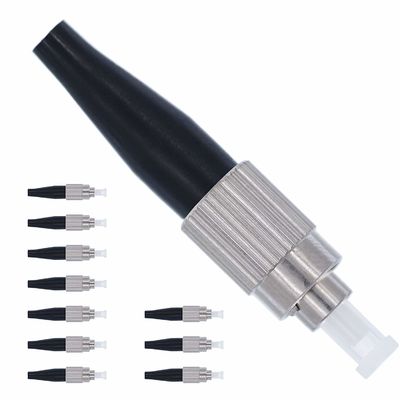

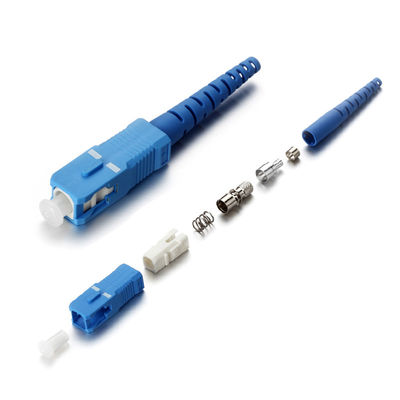

Connector Types

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-piece orders incur higher costs.

Q: What's the price?

A: Pricing depends on quantity. We offer competitive pricing for bulk orders upon request.

Q: Can you quote FOB price?

A: We primarily ship via air couriers (DHL, TNT, UPS, FedEx). EXW or CFR pricing is recommended for most orders.

Q: How is your quality?

A: We produce according to IEC European standards in near dust-free workshops using imported equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are available from stock.

Q: What's your warranty?

A: 2-year warranty for non-artificial damage. Artificial damage repairs are free, but customer covers shipping costs.

Q: What's your packing?

A: International export packaging with optional custom logo printing available.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays shipping). Higher-value products require sample charges.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time. Payment required before production begins.

Q: What are your payment terms?

A: T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.

Packaging Reference
