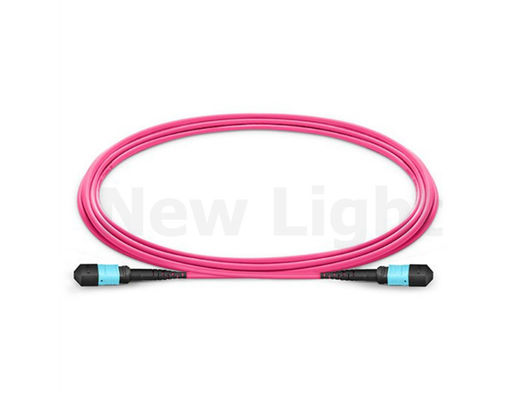

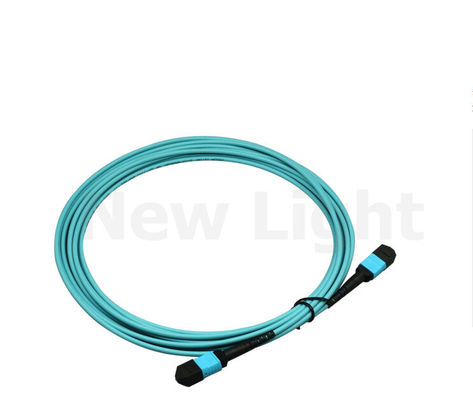

12 Core B Type MPO MTP Patch Cord with Customizable Length for High-Speed Data Networks

Brand Name:	New Light
Model Number:	MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen , China

Certification:

CE , ISO , RoHS

Connector Type:

MPO Female

Material:

Mode Type:

Multi Mode

Core Type:

12 Core

Cable Color:

Length:

As Your Requirements

Insertion Loss:

≤ 0.5dB

Return Loss:

≥25dB

Cable Diameter:

3.0mm

Cable Type:

50/125 OM3

Method:

B Type

Wavelength:

850/1300nm

OEM/ODM:

Acceptable

Package:

1 Pcs/bag

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo fanout cable

Product Description

MPO/MTP B-Type Optical Fiber Patch Cord

High-performance MPO/MTP B-type optical fiber patch cords with female/male connectors, designed for reliable data transmission in demanding network environments.

Product Overview

Precision-engineered MPO optical fiber patch cords featuring excellent mechanical capability with insertion loss <0.2dB. These patch cords offer superior durability and exchangeability, compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards.

Applications

CATV Systems
Active Device Termination
Telecommunication Networks
Metro Networks
Local Area Networks (LANs)
Data Processing Networks
Test Equipment
Premise Installations
Wide Area Networks (WANs)

Key Features

Low insertion loss and back reflection loss
Excellent exchangeability
Superior durability
High temperature stability
Compliant with Telcordia GR-326-CORE standards

Technical Specifications

Parameter	Specification
Product Name	MPO/MTP B-Type MPO MTP Female/Male Optical Fiber Patch Cord
Mode Type	Multi Mode
Cable Count	12 Core (4/8/12/16/24/32 Core Available)
Core Type	OM3-300 (OM1/OM2/OM3-150/OM3-300/OM4/OM5)
Cable Color	Aqua (Customizable)
Cable Diameter	Customizable
Patch Cord Length	5 Meter (Customizable)
Outer Jacket Material	PVC (PVC or LSZH Available)
Insertion Loss	≤ 0.5dB
Return Loss	≥ 25 dB
Wavelength	850/1300nm
Core Type	50/125μm
Connector Type	Female
Connector Color	Aqua
Ferrule Material	Plastic
Operating Temperature	-40°C to +85°C
Cable Print	Standard Print (Customizable)
OEM/ODM	Acceptable
Warranty	3 Years After Delivery
Delivery Time	2-15 Working Days (Based on Quantity)

Ordering Options

Boot Size	Boot Color	Fiber Type	Cable Number	Ferrule	Length
0.9mm, 2.0mm, 3.0mm	Black, Beige, Blue, Gray, White, Yellow	9/125μm SM, 50/125μm MM, 62.5/125μm MM, OM3, OM4	Simplex, Duplex, Multi-fiber	PC, APC	Customized

When a patch cord is constructed in a key-up/key-up configuration, the fiber arrangement on one connector is mirrored about the vertical axis on the other connector. For example, on connector A the blue fiber is to the left with the key up, while on connector B the blue fiber is to the right with the key up. Signals input on the left side of connector A will be output on the right side of connector B.

Key-up/Key-up Configuration: Mirror Signals About the Vertical Axis

Assembly Structure Illustration

Available in male and female connector configurations: Male connectors include pins, while female connectors do not include pins.

Female Connector | Male Connector

How to Order

Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode Type: Single Mode (UPC and APC) / Multi Mode (PC)
Cable Diameter: 0.9 / 2.0 / 3.0 mm (Custom diameters available)
Coating Material: PVC / LSZH
Fiber Count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch Cord Length: Customized to your requirements
MPO/MTP Connector: Specify method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32 fiber)

Contact Us for Orders:
WhatsApp: +8613534063703
