LC-LC Single Mode Fiber Optic Patch Cord with 2.0/3.0 mm Diameter for High-Speed Data Transmission

Brand Name:	New Light
Model Number:	LC /FC /SC/ST / MPO / MTP/ MU / MTRJ
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

LC -LC Single Mode 9/125 Yellow PVC Fiber Optic Cable Double Fiber 2.0 / 3.0 Mm

Fiber Type:

G652D / G657A1/ G657A2 / G655

Mode:

Single-mode

Core Type:

Duplex Or 4/6/8/12/24/48 Core

Cable Diameter:

2.0/3.0 Mm

Cable Length:

10M (can Be Customized)

Delivery Time:

2-7 Working Days After Receive Payment

Packing:

OPP Bag + Carton Box

Jacket Material:

PVC / LSZH

OEM/ODM:

Acceptable

Insertion Loss:

≤0.3dB

Return Loss:

≥55dB

Wavelength:

1310nm /1550nm

Supply Ability:

1000000

Highlight:

sc sc fiber patch cord

single mode fiber optic cable

Product Description

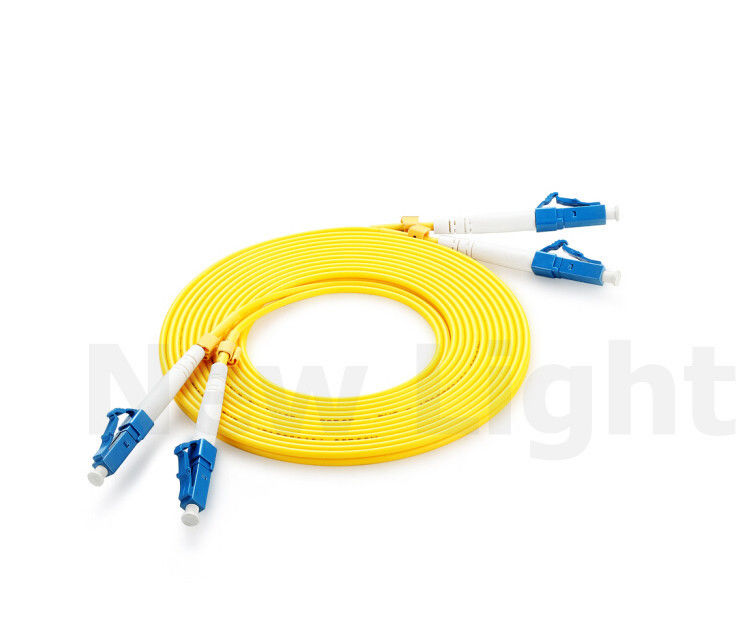

LC-LC Single Mode 9/125 Yellow PVC Fiber Optic Cable

Product Overview

This double fiber optical patch cord features LC connectors on both ends with 9/125 single mode fiber and yellow PVC jacket, available in 2.0mm or 3.0mm diameters.

Product Description

Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line.

We provide wide flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, available in simplex, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and more. These fiber pigtails can be used with fan-out kits and are fully compliant to Telcordia, EIA/TIA and IEC standards.

Key Features

Low insertion loss and back reflection loss
Excellent exchangeability
Superior durability
High-temperature stability
Compliant to IEC, TIA/EIA, NTT and JIS specifications

Technical Specifications

Specification	Unit	FC, SC, LC/Armored Cables	ST, MU	MT-RJ, MPO/MTP	E2000
Insertion loss	dB	≤0.3	≤0.3	≤0.2	≤0.3
Insertion loss	dB	≤0.2	≤0.2	≤0.3	≤0.3
Return loss	dB	≥45	≥45	≥45	≥55
Return loss	dB	≥50	≥50	≥50	≥75
Wavelength	nm	850, 1310
Interchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating temperature	°C	-40~75
Storage temperature	°C	-45~85
Cable diameter	mm	φ3.0, φ2.0, φ0.9

Applications

CATV systems
Active device termination
Telecommunication networks
Metro networks
Local Area Networks (LAN)
Data processing networks
Test equipment
Premise installation
Wide Area Networks (WAN)

Available Options

Connector types: SC, ST, FC, LC, MU, MTRJ, E2000, MPO/MTP, SMA, and more

Cables: PVC/LSZH, OM1, OM2, OM3, OM4, OM5, Armored

Colors: Yellow, gray, sky blue, orange, white, black, and more

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we don't recommend ordering single pieces due to higher costs. Larger quantities receive more competitive pricing.

What's the price?

Pricing depends on quantity. We provide our best pricing based on your order volume, with competitive rates for larger quantities.

Can you provide samples?

We provide free samples for adaptors, attenuators, patch cords, and pigtails with freight prepaid by the customer. For higher-value products, sample charges apply but are refundable with order placement.

What's your warranty policy?

We offer a 2-year warranty for patch cords from delivery date, covering non-artificial damage. For artificial damage, we provide free repairs with customer covering freight costs.

Packing Reference
