1U Distribution Box MPO Cassette Module Male - LC 24 Cores Aluminum Material

1U Distribution Box MPO Cassette Module Male - LC 24 Cores Aluminum Material
1U Distribution Box MPO Cassette Module Male - LC 24 Cores Aluminum Material 1U Distribution Box MPO Cassette Module Male - LC 24 Cores Aluminum Material

Large Image :  1U Distribution Box MPO Cassette Module Male - LC 24 Cores Aluminum Material

Product Details:
Place of Origin: Shenzhen, China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: MPO -LC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: foam + carton box
Delivery Time: 2-10 working days after received payment
Payment Terms: T/T, Western Union, MoneyGram , paypal
Supply Ability: 2000 pcs per month

1U Distribution Box MPO Cassette Module Male - LC 24 Cores Aluminum Material

Description

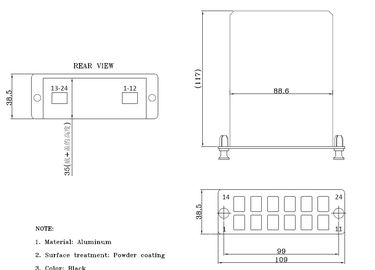

Cassette Material: Aluminum Cassette Size: 117*99*35mm
MPO Connector Type: 12 Core Male Max Capacity: 24 Cores
Suitable Adaptor: LC Patch Cord Length: 0.5meter
Cable Diameter: 0.9mm Cable Color: 12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)
Mode Type: Multi Mode Cable Type: 50/125 OM3
Insertion Loss: ≤ 0.3dB Return Loss: ≥45dB
Wavelength: 850/1300nm Cable Material: PVC
OEM/ ODM: Acceptable
High Light:

fiber optic cassette module

,

mtp casstte module





MPO / male - LC 24 cores fiber optical distribution frame with patch cord





MPO cassette module is mainly used to divide the 12 fibers MPO connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cord ,the output of the module can be directly connected with the equipments , frame or client’s end.



This transition module is characterized by single core or double core port in module front, 12 core SC simplex and LC duplex connectors are optional, one or two adapters are installed on the back, nodule is transition patch cord, directly connected the module front panel with the back of the adapter.

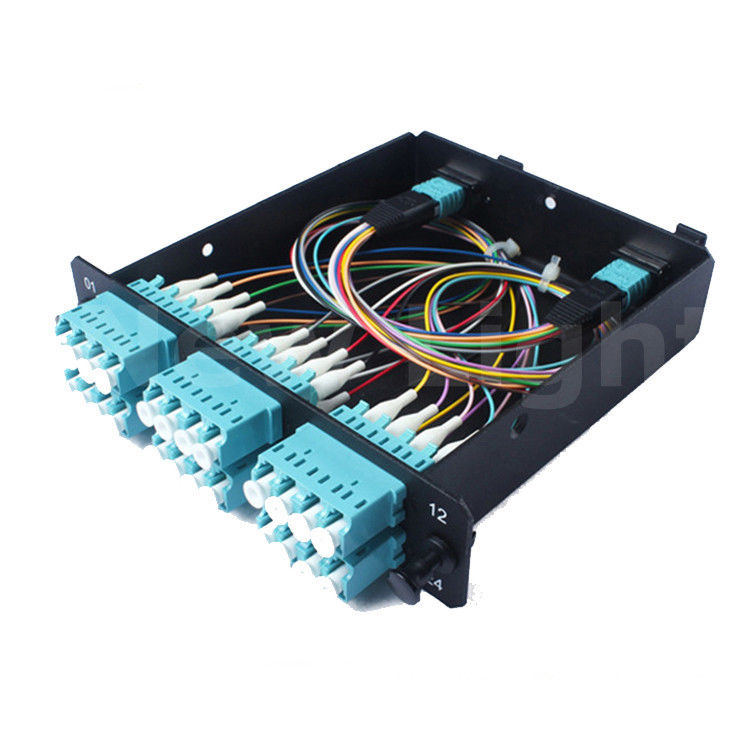

The patch cord inside of the cassette module is  2 pcs of 12 core MPO-LC multi mode OM3 50/125 0.9mm PVC 0.5meter  . below are the pictures of the patch cord inside of module .





Warm: this type of MPO cassette module is design for our 1U distribution box , please confirm the size of the patch panel with us before you order .otherwise it will not match for your 1U patch panel .



it have 12 core / 24 core of the module , and the patch cord inside can be customized according to your requirements .









Technical Parameter



products name  MPO / male - LC 24 cores mpo mtp cassette module for 1U distribution box
casstte size 117*99*35mm
mode type  multi mode
cable count  24 core
core type  OM3
 MPO connector  12 fiber male
cable color  12 color
cable diameter  0.9mm
patch cord length  0.5 meter ( can be customized according to your request )
out jacket material LSZH ( can be PVC or LSZH )
insertion loss ≤ 0.3dB
return loss ≥45 dB
wave length  850/1300nm
core type  50/125um
connector color  beige
ferrule material  Ceramic
operater temperature -40~ +85℃
OEM/ODM acceptable
warranty 3 years after delivery
Delivery time 2-15 working days ( according to your quantity )








How to order



1. Connector type : MPO-LC
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9  mm
4. Coating material : PVC / LSZH
5. fiber count :12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
