24 Cores MPO Cassette Module with Aluminum Material and Multi Mode for 1U Distribution Box

Brand Name: New Light
Model Number: MPO -LC
MOQ: 1~10000
Price: 5~100
Packaging Details: foam + carton box
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE / ISO / RoHS
Cassette Material:
Aluminum
Cassette Size:

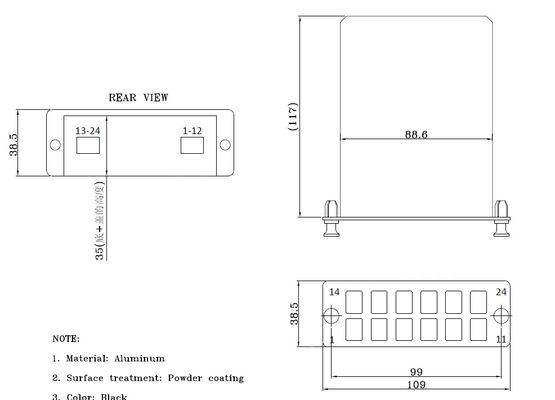

117*99*35mm
MPO Connector Type:
12 Core Male
Max Capacity:
24 Cores
Suitable Adaptor:
LC
Patch Cord Length:
0.5meter
Cable Diameter:
0.9mm
Cable Color:
12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)
Mode Type:
Multi Mode
Cable Type:
50/125 OM3
Insertion Loss:
≤ 0.3dB
Return Loss:
≥45dB
Wavelength:
850/1300nm
Cable Material:
PVC
OEM/ ODM:
Acceptable
Supply Ability:
2000 pcs per month
Highlight:

fiber optic cassette module

,

mtp casstte module

Product Description

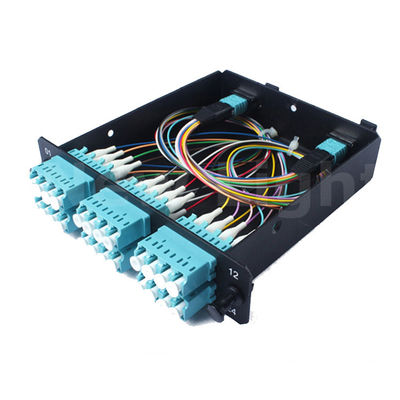

1U Distribution Box MPO Cassette Module Male - LC 24 Cores Aluminum Material
MPO / Male - LC 24 Cores Fiber Optical Distribution Frame with Patch Cord
The MPO cassette module is designed to convert the 12-fiber MPO connector of pre-assembled terminal ends to simplex or duplex standard connectors. Using simplex or duplex patch cords, the module output can directly connect with equipment, frames, or client endpoints.
This transition module features single or dual core ports on the front panel, with optional 12-core SC simplex and LC duplex connectors. One or two adapters are installed on the back, creating a transition patch cord that directly connects the front panel with the rear adapter.
The internal patch cord consists of 2 pieces of 12-core MPO-LC multimode OM3 50/125 0.9mm PVC cables, each 0.5 meters in length.
Important Note: This MPO cassette module is specifically designed for our 1U distribution box. Please confirm your patch panel dimensions with us before ordering to ensure compatibility.
Available in 12-core and 24-core configurations, with customizable internal patch cords to meet your specific requirements.
Technical Specifications
Parameter Specification
Product Name MPO / Male - LC 24 Cores MPO MTP Cassette Module for 1U Distribution Box
Cassette Size 117*99*35mm
Mode Type Multimode
Cable Count 24 Core
Core Type OM3
MPO Connector 12 Fiber Male
Cable Color 12 Colors
Cable Diameter 0.9mm
Patch Cord Length 0.5 meter (customizable)
Outer Jacket Material LSZH (PVC or LSZH options available)
Insertion Loss ≤ 0.3dB
Return Loss ≥ 45dB
Wavelength 850/1300nm
Core Type 50/125μm
Connector Color Beige
Ferrule Material Ceramic
Operating Temperature -40°C to +85°C
OEM/ODM Acceptable
Warranty 3 Years After Delivery
Delivery Time 2-15 Working Days (based on quantity)
Contact: WhatsApp +8613534063703
How to Order
Please specify the following requirements when ordering:
  1. Connector Type: MPO-LC
  2. Mode Type: Single Mode (UPC and APC) / Multimode (PC)
  3. Cable Diameter: 0.9mm
  4. Coating Material: PVC / LSZH
  5. Fiber Count: 12 Core / 24 Core
  6. Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
