Product Details:
|
| Material: | Stainless Steel | Application: | FTTH / FTTB/ FTTX Network |
|---|---|---|---|
| Operating Temperature: | -20° ~ +80 ° | Max Capacity: | 144 Cores |
| Suitable Adaptor: | LC / SC / ST / FC / MPO | Size: | 19 Inch |
| OEM/ ODM: | Acceptable | Deliery Time: | 2-10 Working Days After Receive Payment |
| Payment Method: | T/T , Paypal , Western Union , Money Gram | ||
| High Light: | odf optical fiber distribution frame,odf fiber optic patch panel |
||
Description
96 core LC fiber optical distribution frame fiber optical FTTH distribution box

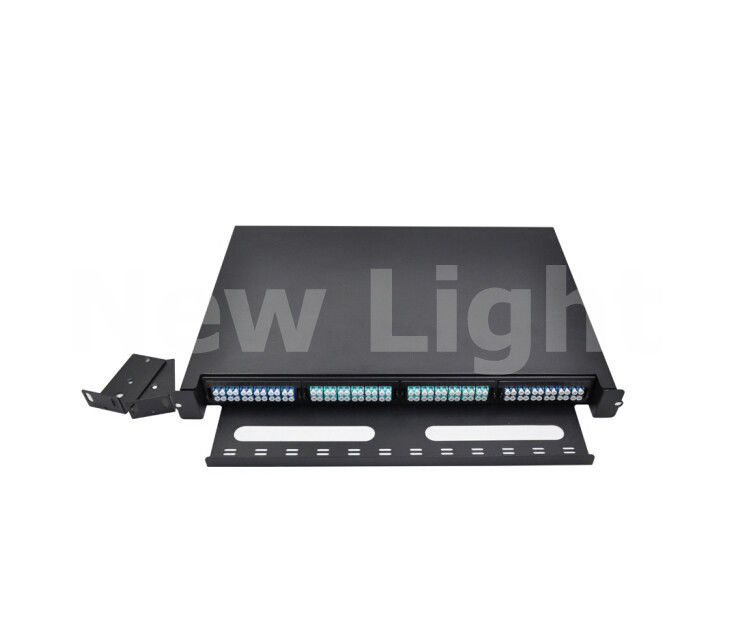

96 cores Rack Mounted MTP/MPO Fiber Patch Panels with 4pcs of MPO Cassette
Product Description
MPO/MTP Fiber Optical Patch Panels
· To integrate fiber patch panel with easy plug and play fiber cassette module for optimizing cabling management efficiency
· Light in weight, easy to install.
· Easy for installation and operation .
· 19' standard structure .
· Sliding tray design .
· Available for the installation of FC/SC/ST/LC adaptor.

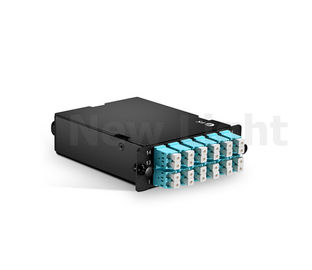

MPO/MTP CASSETTES is made of cold rolled steel sheet or Aluminum, MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.
Features
Design for MPO/MTP SYSTEM, for quickly network deploy and quick-fix solution
High-density and small design
12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts
Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2) fiber.
Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed quality and performance
Metallic shell with high strength protect the inner fibers effectively
Supports easy reconfiguration for moves, adds, and changes
Available for the installation of LC/SC adapter
Advantages
Application
Technical Parameter
| Item | Technical Parameter | |
| Connector | MPO (Female) | LC |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
SM:≤ 0.2dB; MM:≤ 0.2dB;
|
| Return Loss |
SM:≥60dB; MM:≥35dB; |
SM:≥60dB; MM:≥35dB; |
| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 8,12&24 MT fiber | |
| The other end of the connector type | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |
Application
