96 Core Stainless Steel 19 Inch Fiber Optic Distribution Box for FTTH Networks with MPO Cassette

Brand Name:	New Light
Model Number:	MPO / MTP - LC / SC / FC / ST
MOQ:	1~10000
Price:	10~100
Packaging Details:	foam + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Material:

Stainless Steel

Application:

FTTH / FTTB/ FTTX Network

Operating Temperature:

-20° ~ +80 °

Max Capacity:

144 Cores

Suitable Adaptor:

LC / SC / ST / FC / MPO

Size:

19 Inch

OEM/ ODM:

Acceptable

Deliery Time:

2-10 Working Days After Receive Payment

Payment Method:

T/T , Paypal , Western Union , Money Gram

Supply Ability:

2000 pcs per month

Highlight:

odf optical fiber distribution frame

odf fiber optic patch panel

Product Description

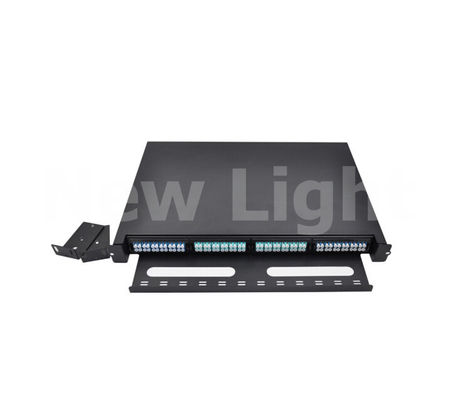

96 Core LC-MPO Fiber Optical Distribution Box

High-density rack mounted FTTH distribution box with MPO cassette modules for efficient fiber optic network deployment.

Product Overview

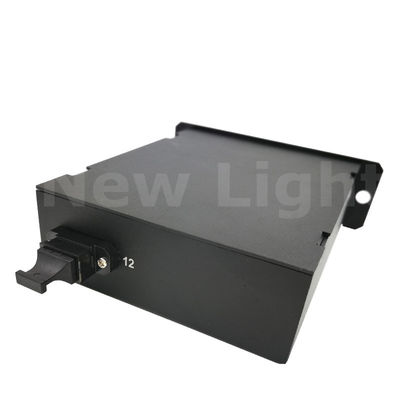

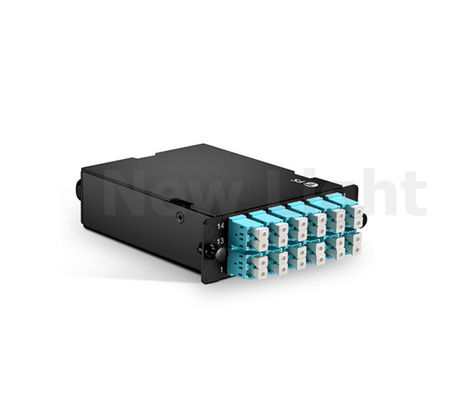

96-core rack mounted MTP/MPO fiber patch panels with 4 MPO cassette modules designed for optimal cabling management efficiency in data center and FTTH applications.

Key Features

Plug-and-play fiber cassette module design for easy installation
Lightweight construction with 19-inch standard rack structure
Sliding tray design for easy access and operation
Compatible with FC/SC/ST/LC adapters
High-density, compact design for space optimization
Available in 12 and 24 fiber versions with LC/SC optical parts
Supports multimode (62.5/125, 50/125, OM3, OM4) and single-mode (OS1/2) fibers
Factory-terminated and tested for guaranteed quality and performance
Metallic shell provides effective fiber protection
Easy reconfiguration for network changes and upgrades

Quality Advantages

Advanced production and testing equipment including EXFO IL&RL Tester and SENKO 3D Interferometer
High return loss: ≥45dB
Experienced 5-year R&D team
Customized production and service options
40G/100G data center solutions

Applications

Data center infrastructure
Storage area networks
40G & 100Gbps protocols
Parallel optics systems
Enterprise network cabling systems

Technical Specifications

Parameter	MPO Connector	LC Connector
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	SM: ≤0.75dB (standard), ≤0.35dB (typical) MM: ≤0.50dB (standard), ≤0.35dB (typical)	SM: ≤0.2dB MM: ≤0.2dB
Return Loss	SM: ≥60dB MM: ≥35dB	SM: ≥60dB MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 MT fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Modes	Single-mode (G652, G655, G657), Multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Types	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Application Examples

Product Images

Manufacturing Facility

Quality Control

Delivery & Payment

Why Choose Our Products

Competitive pricing
Fast delivery service
Long-term warranty
Reliable quality assurance
Professional technical support
Prompt response to inquiries
Value-added services including logistics support

Our Services

12-hour response time for all inquiries
Strict process and material control for 30-year lifespan
Comprehensive testing with provided reports and certifications
Welcome factory visits from domestic and international customers
