1U 19 Inch SC Fiber Optic Distribution Frame with 144 Cores and Stainless Steel Construction for FTTH/FTTB/FTTX Networks

Brand Name:	New Light
Model Number:	MPO / MTP - LC / SC / FC / ST
MOQ:	1~10000
Price:	10~100
Packaging Details:	foam + carton box
Payment Terms:	L/C,,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Material:

Stainless Steel

Application:

FTTH / FTTB/ FTTX Network

Operating Temperature:

-20° ~ +80 °

Max Capacity:

144 Cores

Suitable Adaptor:

LC / SC / ST / FC / MPO

Size:

19 Inch

OEM/ ODM:

Acceptable

Deliery Time:

2-10 Working Days After Receive Payment

Payment Method:

T/T , Paypal , Western Union , Money Gram

OEM / OEM:

Acceptable

Warranty:

5 Years

Supply Ability:

2000 pcs per month

Highlight:

odf optical fiber distribution frame

fiber optic distribution box

Product Description

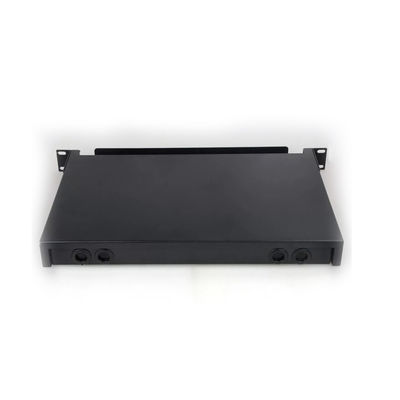

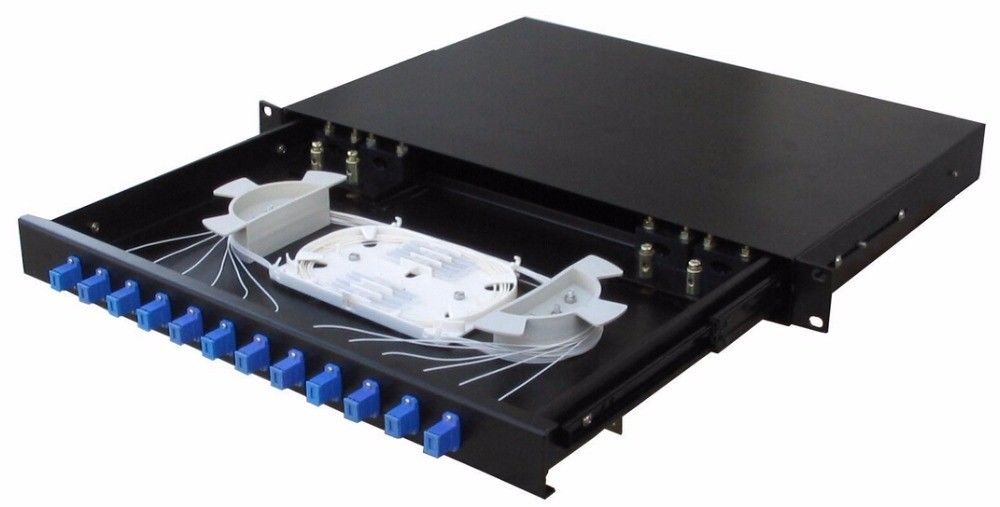

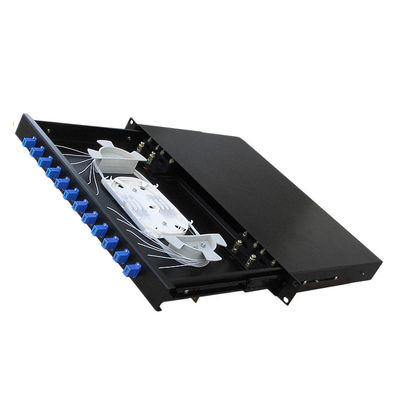

1U 19 Inch SC Fiber Optic Distribution Frame

SC UPC Pigtail Distribution Box for high-density fiber optic network deployments

Product Features

Designed for MPO/MTP systems with quick network deployment and rapid-fix solutions
High-density, compact design optimized for space efficiency
Available in 8, 12, and 24 fiber configurations with LC/SC optical components
Supports Multimode (62.5/125, Standard 50/125, OM3, OM4) and Single mode (OS1/OS2) fibers
Factory-terminated and tested cables with guaranteed quality and performance
Metallic shell construction for superior fiber protection
Easy reconfiguration for network moves, additions, and changes
Compatible with LC/SC adapter installations

Optical Performance Specifications

Fiber Count	24	Fiber Type	Single Mode & Multimode
Front Connector Type	12x LC UPC Duplex, 2x MTP UPC Base-12 (male)
MTP Adapter	Key up to Key down / Key up to Key UP	LC Adapter	LC DX SC footprint
Insertion Loss	SM: MTP≤0.35dB, LC≤0.2dB MM: MTP≤0.35dB, LC≤0.2dB	Return Loss	SM: MTP≥60dB, LC≥50dB MM: MTP≥20dB, LC≥20dB
Operating Temperature	0°C to 70°C (32°F to 158°F)	Storage & Shipping Temperature	-40°C to +75°C

Application

Product Gallery

Manufacturer Profile

New Light Optics Technology Limited is a high-tech company specializing in optical communication product R&D, manufacturing, sales, and service. Established in 2011, we have over 6 years of OEM and manufacturing experience serving customers worldwide.

Product Portfolio

Our comprehensive product line includes: Patch Cords, Pigtails, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and related applications.

Production Capabilities

Quality Assurance

Delivery & Payment

Why Choose New Light Optics

Competitive pricing structure
Fast delivery times
Long-term warranty coverage
Reliable product quality
Professional technical support
Prompt response to inquiries
Value-added services including logistics support

Customer Service Commitment

12-hour response time for all inquiries
Strict process and material controls ensuring 30-year product lifespan
Comprehensive testing with provided test reports and certifications
Welcome factory visits from domestic and international customers
