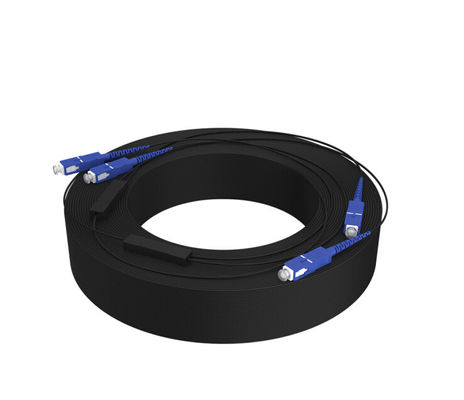

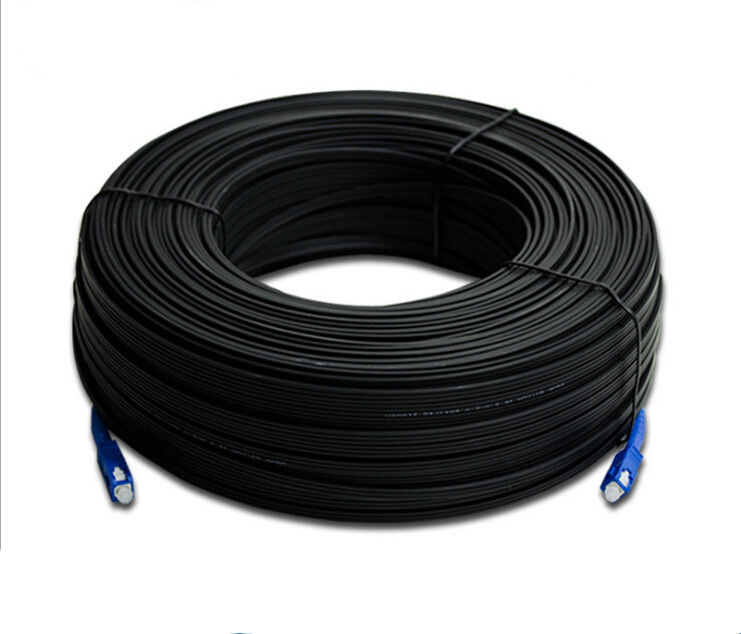

Outdoor FTTH Fiber Optic Patch Cord with SC SC Connector and Customizable Length

Brand Name:	New Light
Model Number:	SC-SC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

Outdoor FTTH Fiber Optic Patch Cord / Fiber Drop Cable SC SC Connector

Fiber Type:

G652D / G657A1/ G657A2 / G655

Mode:

Single Mode

Core Type:

Simplex /duplex

Cable Diameter:

2.0/3.0 Mm

Cable Length:

Can Be Customized

Delivery Time:

2-7 Working Days After Receive Payment

Packing:

OPP Bag + Carton Box

Jacket Material:

PVC / LSZH

OEM/ODM:

Acceptable

Cable Color:

Blace

Application:

FTTH FTTB FTTX Network,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

single mode fiber optic cable

Product Description

Outdoor FTTH Fiber Optic Patch Cord / Fiber Drop Cable SC SC Connector

Product Overview

Fiber Optic Patch Cable, also known as Fiber Optic Jumper or Fiber Optic Patch Cord, consists of fiber optic cable terminated with connectors on both ends. These cables are essential for connecting computer workstations to outlets and fiber optic patch panels or optical cross-connect distribution centers.

Product Features

Simplex, duplex, or multi-fiber assemblies available
Riser or Plenum rated, LSZH and RoHS compliant cables
Low insertion loss, IEC, TIA/EIA, Telcordia compliant
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths including 9/125 single mode, 50/125 multimode and 62.5/125 multimode
0.9 / 1.8 / 2.0 / 3.0 mm outer diameter fiber optic cables
PC, UPC, and APC polish types
100% geometry test and IEC cleaning test available
OEM services available
Competitive pricing with fast delivery

Technical Specifications

Parameter	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A) \| MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/FC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm \| 850±30/1300±30nm
Insertion Loss (dB)	≤ 0.25dB(PC/UPC/APC) \| ≤ 0.3dB(PC/UPC)
Return Loss (dB)	≥50dB(PC/UPC) ≥60dB(APC) \| ≥40dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C)	-10 to +70
Storage Temperature (°C)	-40 to +85
Package	1 unit/bag

*All values specified are with connectors

Applications

CATV Systems
Active Device Termination
Telecommunication Networks
Metro Networks
Local Area Networks (LAN)
Data Processing Networks
Test Equipment
Premise Installation
Wide Area Networks (WAN)

Available Options

Connector Types: SC, ST, FC, LC, MU, MTRJ, E2000, MPO/MTP, SMA, and more
Cables: PVC/LSZH, OM1, OM2, OM3, OM4, Plenum(OFNP), Armored
Colors: Yellow, Gray, Sky Blue, Orange, White, Black, and more

Connector Types

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering just 1 piece as the cost and price will be higher. Larger quantities receive more competitive pricing.

What's the price?

Pricing depends on quantity. After you provide your quantity requirements, we will offer our best price. Large quantities receive very competitive pricing.

Can you quote FOB price?

Yes, but due to the small size and weight of most products, we typically ship by air (DHL, TNT, UPS, FEDEX, etc.). EXW price or CFR price is usually better. Contact us for shipping solutions.

How is your quality?

Our production follows IEC and European standards in nearly dust-free workshops. We use imported production and quality control equipment. All products are 100% tested before delivery.

What's your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are in stock, and we can handle urgent orders.

What's your warranty?

Patch cords come with a 2-year warranty from delivery for non-artificial damage. For artificial damage, we repair for free but freight is paid by the customer.

What's your packing?

We use international export packaging and can print your logo on the packaging.

Can you do OEM/ODM?

Yes, we are a manufacturer and all products accept OEM/ODM. We can sign confidentiality agreements.

Can I have a sample?

For adaptors, attenuators, patch cords, and pigtails, we can provide free samples with freight paid by the customer. For high-value products, sample charges apply but are refundable with orders.

How can I order?

1. Contact us with product name, specifications, quantity, and delivery address
2. We provide pricing and lead time
3. Upon acceptance, we issue Proforma Invoice
4. Production begins after payment
5. We confirm shipping details and provide tracking
6. We prioritize long-term cooperation

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.

Packaging Reference
