SC APC Single Mode 2.0mm Optical Fiber Patch Cord for High-Speed Data Transfer

Brand Name:	New Light optical fiber patch cord
Model Number:	SC APC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

LC /FC /SC/ST / MPO / MTP/ MU / MTRJ

Fiber Type:

G652D / G657A1/ G657A2 / G655

Mode:

Single Mode

Core Type:

Simplex

Cable Diameter:

0.9/2.0/3.0 Mm

Cable Length:

Can Be Customized

Delivery Time:

2-7 Working Days After Receive Payment

Packing:

OPP Bag + Carton Box

Jacket Material:

PVC / LSZH

Warranty:

3 Years

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

single mode fiber optic cable

Product Description

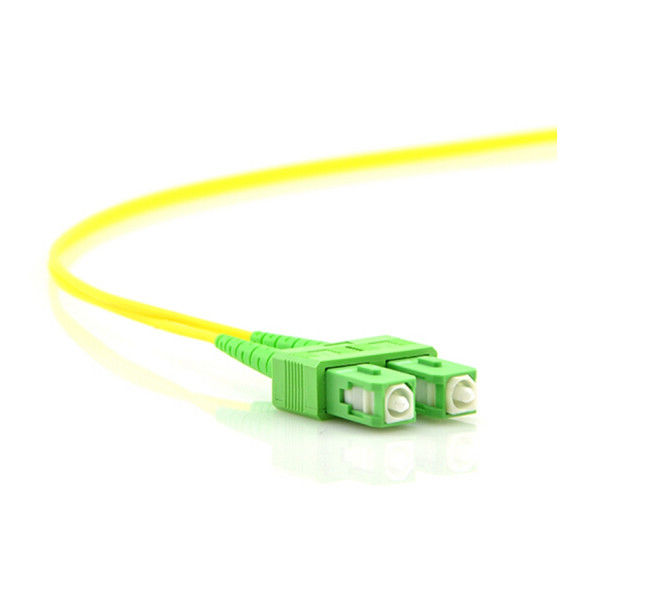

SC APC with Clip Free Logo Optical Fiber Patch Cord

Single Mode 2.0 Jumping Cable for reliable optical network connectivity

Fiber Optic Pigtails are essential components in optical networks, available with same or different connectors installed on fiber optic cable ends. Our comprehensive collection offers various lengths and connectors to meet all deployment requirements.

SC connectors feature a mostly concealed ferrule that houses the fiber and provide easy snap-on installation - simply push into jacks with a click, requiring no mating cable on the other side.

Product Features

Simplex, duplex, or multi-fiber assemblies
Riser or Plenum rated, LSZH and RoHS compliant cables
Low insertion loss, IEC, TIA/EIA, Telcordia compliant
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths: 9/125 single mode, 50/125 multimode, 62.5/125 multimode
0.9 / 1.8 / 2.0 / 3.0 mm outer diameter options
PC, UPC, and APC polish types available
Quality packaging, competitive pricing, fast delivery
100% geometry test and IEC cleaning test available
OEM services offered

Technical Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A) \| MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm \| 850±30/1300±30nm
Insertion Loss(dB)	≤ 0.25dB(PC/UPC/APC) \| ≤ 0.3dB(PC/UPC)
Return Loss(dB)	≥50dB(PC/UPC) ≥60dB(APC) \| ≥40dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C)	-10 to +70
Storage Temperature (°C)	-40 to +85
Package	1 unit/bag

*All values specified are with connectors.

Applications

CATV Systems
Active Device Termination
Telecommunication Networks
Metro Networks
Local Area Networks
Data Processing Networks
Test Equipment
Premise Installation
Wide Area Networks

Available Options

Connector Type	SC, ST, FC, LC, MU, MTRJ, E2000, MPO/MTP, SMA
Cables	PVC/LSZH, OM1, OM2, OM3, OM4, OM5 Plenum(OFNP), Armored
Color	Yellow, Gray, Sky Blue, Orange, White, Black

Packaging & Shipping

Packaging: Bags & carton boxes
Shipping: International Express via FedEx, DHL, UPS, TNT and EMS
Notify us in advance for preferred carrier requirements
FedEx Overnight: 1-3 business days delivery
DHL: 2-4 business days delivery (longer for Spain, Italy, Brazil due to customs)

How to Order

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: Single mode (UPC and APC) / Multi mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: Customized to your requirements

Available connector types:
