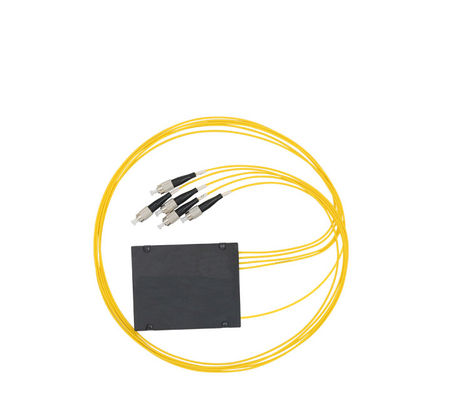

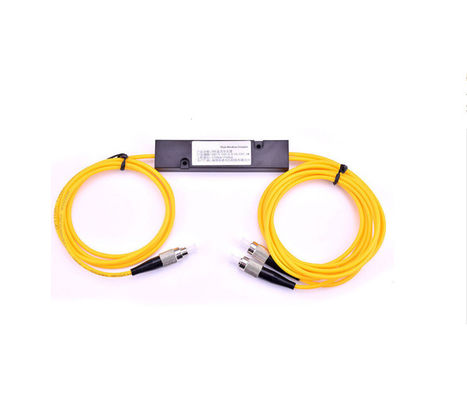

Durable 1x2 PLC Splitter Mini FC/UPC Fiber Optic Coupler Splitter with 5 Years Warranty for Distribution Box

Brand Name:	New Light
Model Number:	LC / FC / SC / ST / E2000 / MU / MTRJ / MPO / MTP
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Fiber Type:

0.9 /2.0 / 3.0 Mm

Connector Type:

LC / FC / SC / ST / E2000

Core Type:

Operating Wave:

1260-1650

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Fiber Length:

As Your Requirement

Warranty:

5 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

fiber optic cable splitter

Product Description

Durable 1x2 PLC Splitter - Mini FC/UPC Fiber Optic Coupler Splitter for Distribution Box

High-performance 1x2 single mode Fiber Optic Splitter with Mini FC/UPC PLC configuration designed specifically for distribution box applications.

Ordering Information

PLC Type: 0102=1x2, 0104=1x4, 0108=1x8, 0116=1x16, 0132=1x32, 0164=1x64, 0204=2x4, 0208=2x8, 0216=2x16, 0232=2x32, 0264=2x64

Input Pigtail Style: 0=bare fiber, 1=900um Loose tube, 2=900um Jacket, 3=2.0mm cable, 4=3.0mm cable

Input Connector: 0=none, 1=SC/PC, 2=SC/APC, 3=FC/PC, 4=FC/APC, 5=ST, 6=LC, 7=LC/APC, S=Special

Output Pigtail Style: 0=bare fiber, 1=900um Loose tube, 2=900um Jacket, 3=2.0mm cable, 4=3.0mm cable

Fiber Length: 0=0.5m, 1=1m, 2=1.5m, 3=2m, S=special

Output Connector: 0=none, 1=SC/PC, 2=SC/APC, 3=FC/PC, 4=FC/APC, 5=ST/PC, 6=LC/PC, 7=LC/APC, S=Special

Package Type: A=4X4X40, B=4X7X50, C=4X12X60, D=4X7X60, E=6X20X80, F=100X80X10, G=120X80X18, H=140X115X18, I=19"1U Rack, S=Special

Technical Specifications

Parameter	Single Mode	Multimode
Connector Type	FC, SC	ST, LC
Diameter	Φ 0.9, Φ2.0, Φ3.0
End-face Finishing	PC, UPC, APC	PC, UPC, APC
Insertion Loss (dB)	≤ 0.20	≤ 0.30
Return Loss (dB)	≥ 45, ≥ 50, ≥ 60	≥ 45, ≥ 50, ≥ 35
Exchangeability (dB)	≤ 0.20
Repeatability (dB)	≤ 0.10
Operating Temperature (°C)	-40 to +75
Storage Temperature (°C)	-40 to +85
Operating Wavelength (nm)	1310, 1550

Applications

CATV Systems
Active Device Termination
Telecommunication Networks
Metro Networks
Local Area Networks (LAN)
Data Processing Networks
Test Equipment
Premise Installation
Wide Area Networks (WAN)

Key Features

PC, UPC, APC polishing available

High return loss performance

Low insertion loss

High reliability and stability

Available for singlemode/multimode and simplex/duplex

0.9mm, 2.0mm, 3.0mm diameter cable options

Quality Standards

Compliant with: RoHS, ISO-9001, IEC-61754, Telcordia-GR-326-CORE

Company Profile

New Light Optics Technology Limited is a high-tech company specializing in the R&D, manufacturing, sales and service of optical communication products. Established in 2011, our factory has over 6 years of OEM and manufacturing experience serving customers worldwide.

Our comprehensive product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and related applications.

We maintain high-tech capabilities with professional R&D teams, advanced production equipment, and skilled engineers. Our rigorous quality control system ensures products meet the highest standards for customers in over 60 countries worldwide including USA, Europe, Brazil, Middle East, and Asia.

Packaging & Shipping

Packaging: Bags & carton boxes
Shipping Options: International Express via FedEx, DHL, UPS, TNT, EMS, or by sea
FedEx Overnight: 1-3 business days delivery
DHL: 2-4 business days delivery (longer for Spain, Italy, Brazil due to customs)

Payment Terms

Accepted Methods: T/T, PAYPAL, Western Union, Money Gram, L/C

Terms: 30% deposit in advance, 70% balance paid before delivery

Our Services

"One to one" personalized service with dedicated sales representatives

24-hour customer support with designated contacts

3-year warranty with free polishing and testing for non-artificial damage (customer pays freight)
